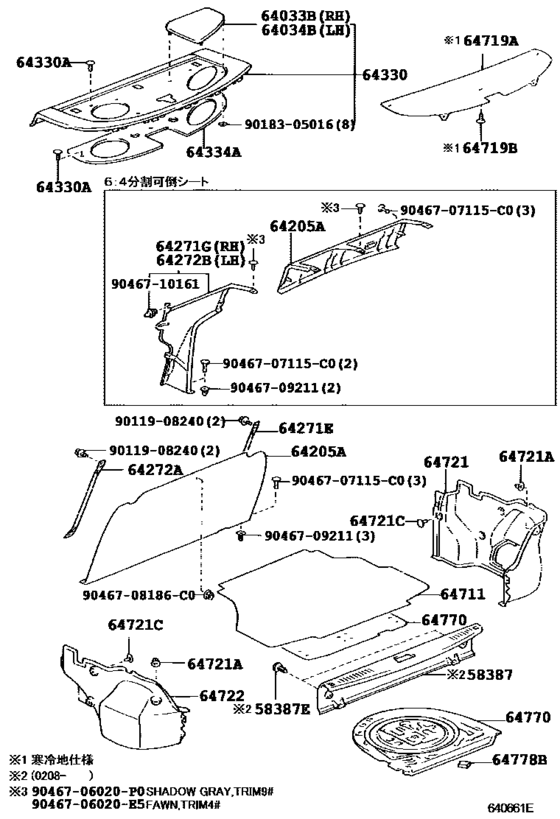

Package Tray Panel & Luggage Compartment Mat ([08.1999 - ] (9908- )) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-52010-B0 Plate, Rear Floor Finish[08.2002 - 12.2002] NCP1#,SCP11 SHADOW GRAY,TRIM4# |
58387-52010-B0 |
US $84.45 |
||
| replacement | |||||
|
58387
|
58387
58387-52010-B1 Plate, Rear Floor Finish[08.2002 - 12.2002] NCP1#,SCP11 SHADOW GRAY,TRIM4# |
58387-52010-B1 |
US $58.24 |
||
|
58387
|
58387
58387-52010-B1 Plate, Rear Floor Finish[12.2002 - 12.2005] NCP1#,SCP11 DK.GRAY,TRIM4# |
58387-52010-B1 |
US $58.24 |
||
|
58387E
|
58387E
90467-08186-B4 Clip(For Instrument Lower Cover)[08.2005 - 11.2005] NCP1#,SCP11 DK.GRAY |
90467-08186-B4 |
US $1.92 |
||
|
58387E
|
58387E
90467-08186-C0 Clip(For Front Bumper), No.1[08.2002 - 08.2005] NCP1#,SCP11 BLACK,TRIM4# |
90467-08186-C0 |
from US $0.98 |
||
|
64205A
|
64205A
64275-52010 Cover Sub-Assy, Room Partition[08.1999 - 04.2000] NCP12,SCP11..F |
64275-52010 |
US $21.69 |
||
| replacements | |||||
|
64205A
|
64205A
90467-08186-C0 Clip(For Front Bumper), No.1[08.1999 - 04.2000] NCP12,SCP11..F |
90467-08186-C0 |
from US $0.98 |
||
|
64205A
|
64205A
64275-52011-B1 Cover Sub-Assy, Room Partition[08.1999 - 04.2000] NCP12,SCP11..F |
64275-52011-B1 |
US $21.40 |
||
|
64205A
|
64205A
64275-52011 Cover Sub-Assy, Room Partition[04.2000 - 08.2002] NCP12..F; SCP11 ｱﾘ(ｺﾃｲｼｷ ﾘﾔ ｼ-ﾄ ) |
64275-52011 |
US $21.26 |
||
| replacement | |||||
|
64205A
|
64205A
64275-52011-B1 Cover Sub-Assy, Room Partition[04.2000 - 08.2002] NCP12..F; SCP11 ｱﾘ(ｺﾃｲｼｷ ﾘﾔ ｼ-ﾄ ) |
64275-52011-B1 |
US $21.40 |
||
|
64205A
|
64205A
64275-52020-B0 Cover Sub-Assy, Room Partition[08.2000 - 08.2002] SCP11;NCP12..X ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM9# |
64275-52020-B0 |
US $67.85 |
||
| replacement | |||||
|
64205A
|
64205A
64275-52020-B2 Cover Sub-Assy, Room Partition[08.2000 - 08.2002] SCP11;NCP12..X ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),SHADOW GRAY,TRIM9# |
64275-52020-B2 |
US $68 |
||
|
64271E
|
64271E
64241-52010 Panel, Room Partition[08.1999 - 08.2002] NCP12,SCP11..F |
64241-52010 |
US $46.88 |
||
|
64271G
|
64271G
64271-52010-B0 Board, Room Partition, Rh[08.2000 - 08.2002] SCP11;NCP12..X SHADOW GRAY,TRIM9# |
64271-52010-B0 |
US $81.54 |
||
| replacement | |||||
|
64271G
|
64271G
64271-52010-B2 Board, Room Partition, Rh[08.2000 - 08.2002] SCP11;NCP12..X SHADOW GRAY,TRIM9# |
64271-52010-B2 |
US $81.54 |
||
|
64272A
|
64272A
64242-52010 Panel, Room Partition, Lh[08.1999 - 08.2002] NCP12,SCP11..F |
64242-52010 |
US $46.88 |
||
|
64272B
|
64272B
64272-52010-B0 Board, Room Partition, Lh[08.2000 - 08.2002] SCP11;NCP12..X SHADOW GRAY,TRIM9# |
64272-52010-B0 |
US $81.54 |
||
| replacement | |||||
|
64272B
|
64272B
64272-52010-B2 Board, Room Partition, Lh[08.2000 - 08.2002] SCP11;NCP12..X SHADOW GRAY,TRIM9# |
64272-52010-B2 |
US $81.54 |
||
|
64330
|
64330
64330-52040-C0 Panel Assy, Package Tray Trim[08.1999 - 08.2002] NCP1#,SCP11..F ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLACK,TRIM9# |
64330-52040-C0 |
US $165.98 |
||
|
64330
|
64330
64330-52050-C0 Panel Assy, Package Tray Trim[08.1999 - 08.2002] NCP1#,SCP11..F BLACK,TRIM9# |
64330-52050-C0 |
US $165.98 |
||
|
64330
|
64330
64330-52090-C0 Panel Assy, Package Tray Trim[08.1999 - 08.2002] NCP12..X;NCP16,SCP11 ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM9# |
64330-52090-C0 |
US $219.86 |
||
|
64330
|
64330
64330-52160-E0 Panel Assy, Package Tray Trim[08.2002 - 12.2005] NCP1#,SCP11..F FAWN,TRIM4# |
64330-52160-E0 |
US $165.98 |
||
|
64330A
|
64330A
90467-06020-E5 Clip(For Package Tray Trim Panel)[08.2002 - 12.2005] NCP1#,SCP11 FAWN,TRIM4# |
90467-06020-E5 |
US $1.60 |
||
|
64330A
|
64330A
90467-06020-P0 Clip(For Package Tray Trim Panel)[08.1999 - 08.2002] NCP1#,SCP11 SHADOW GRAY,TRIM9# |
90467-06020-P0 |
US $2.48 |
||
| replacement | |||||
|
64330A
|
64330A
90467-06020-C0 Clip[08.1999 - 08.2002] NCP1#,SCP11 SHADOW GRAY,TRIM9# |
90467-06020-C0 |
from US $1.37 |
||
|
64334A
|
64334A
64334-52020 Pad, Package Tray Trim[08.1999 - 08.2002] NCP1#,SCP11..F |
64334-52020 |
US $12.08 |
||
|
64711
|
64711
64711-52010-C0 Mat, Luggage Compartment Floor[08.1999 - 08.2002] NCP12,SCP11..F ｱﾘ(ｺﾃｲｼｷ ﾘﾔ ｼ-ﾄ ),BLACK,TRIM9# |
64711-52010-C0 |
US $157.25 |
||
|
64711
|
64711
64711-52021-C0 Mat, Luggage Compartment Floor[08.2000 - 08.2002] SCP11;NCP12..X ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),BLACK,TRIM9# |
64711-52021-C0 |
US $158.70 |
||
|
64719A
|
64719A
64719-52010-C0
Cover, Luggage Compartment Door
[08.1999 - 08.2002] NCP1#,SCP11 BLACK,TRIM9# |
64719-52010-C0 |
— | ||
|
64719B
|
64719B
90467-08186-C0 Clip(For Front Bumper), No.1[08.1999 - 08.2002] NCP1#,SCP11 BLACK,TRIM9# |
90467-08186-C0 |
from US $0.98 |
||
|
64721
|
64721
64710-52010-C0 Cover, Luggage Compartment Trim, Inner Rh[08.1999 - 06.2002] NCP12,SCP11 BLACK,TRIM9# |
64710-52010-C0 |
US $99.01 |
||
| replacement | |||||
|
64721
|
64721
64710-52011-C0 Cover, Luggage Compartment Trim, Inner Rh[08.1999 - 06.2002] NCP12,SCP11 BLACK,TRIM9# |
64710-52011-C0 |
US $96.10 |
||
|
64721
|
64721
64710-52011-C0 Cover, Luggage Compartment Trim, Inner Rh[06.2002 - 08.2002] NCP12,SCP11 BLACK,TRIM9# |
64710-52011-C0 |
US $96.10 |
||
|
64721A
|
64721A
90467-06155 Clip[08.1999 - 08.2002] NCP1#,SCP11 |
90467-06155 |
from US $0.80 |
||
|
64721C
|
64721C
90467-08186-B4 Clip(For Instrument Lower Cover)[08.2005 - 11.2005] NCP1#,SCP11 DK.GRAY |
90467-08186-B4 |
US $1.92 |
||
|
64721C
|
64721C
90467-08186-C0 Clip(For Front Bumper), No.1[08.1999 - 08.2002] NCP1#,SCP11 BLACK,TRIM9# |
90467-08186-C0 |
from US $0.98 |
||
|
64722
|
64722
64722-52010-C0 Cover, Luggage Compartment Trim, Inner Lh[08.1999 - 06.2002] NCP12,SCP11 BLACK,TRIM9# |
64722-52010-C0 |
US $81.54 |
||
| replacement | |||||
|
64722
|
64722
64722-52011-C0 Cover, Luggage Compartment Trim, Inner Lh[08.1999 - 06.2002] NCP12,SCP11 BLACK,TRIM9# |
64722-52011-C0 |
US $55.76 |
||
|
64722
|
64722
64722-52011-C0 Cover, Luggage Compartment Trim, Inner Lh[06.2002 - 08.2002] NCP12,SCP11 BLACK,TRIM9# |
64722-52011-C0 |
US $55.76 |
||
|
64770
|
64770
64771-52070 Cover Assy, Spare Wheel[08.1999 - 08.2002] NCP12,SCP11 |
64771-52070 |
US $93.18 |
||
|
64778B
|
64778B
64778-52020 Protector, Spare Wheel[08.1999 - 08.2002] NCP12,SCP11 |
64778-52020 |
US $5.68 |
||
|
9011908240
|
9011908240
90119-08240 New Genuine Part |
90119-08240 |
US $3.06 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.28 |
||
|
9046706020E5
|
9046706020E5
90467-06020-E5 Clip(For Package Tray Trim Panel) |
90467-06020-E5 |
US $1.60 |
||
|
9046706020P0
|
9046706020P0
90467-06020-P0 Clip(For Package Tray Trim Panel) |
90467-06020-P0 |
US $2.48 |
||
| replacement | |||||
|
9046706020P0
|
9046706020P0
90467-06020-C0 Clip |
90467-06020-C0 |
from US $1.37 |
||
|
9046707115C0
|
9046707115C0
90467-07115-C0 Clip(For Front Floor Carpet) |
90467-07115-C0 |
US $1.16 |
||
|
9046708186C0
|
9046708186C0
90467-08186-C0 Clip(For Front Bumper), No.1 |
90467-08186-C0 |
from US $0.98 |
||
|
9046709211
|
9046709211
90467-09211 New Genuine Part |
90467-09211 |
US $1.46 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
