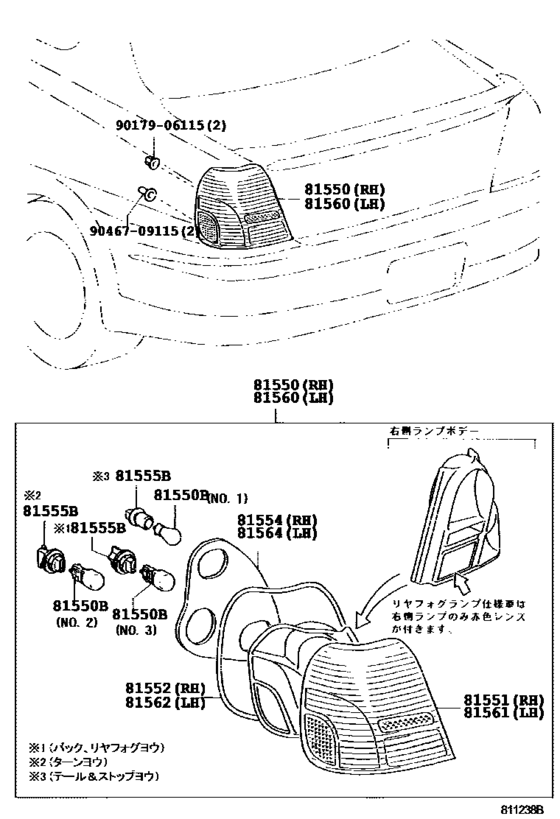

Rear Combination Lamp ([08.1999 - 08.2002] (9908-0208)) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-52070 Lamp Assy, Rear Combination, Rh[08.1999 - 03.2001] NCP1#,SCP11 |
81550-52070 |
US $294.11 |
||
| replacement | |||||
|
81550
|
81550
81550-52071 Lamp Assy, Rear Combination, Rh[08.1999 - 03.2001] NCP1#,SCP11 |
81550-52071 |
US $293.88 |
||
|
81550
|
81550
81550-52071 Lamp Assy, Rear Combination, Rh[03.2001 - 08.2002] NCP1#,SCP11 |
81550-52071 |
US $293.88 |
||
|
81550
|
81550
81550-52080 Lamp Assy, Rear Combination, Rh[08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81550-52080 |
US $294.11 |
||
|
81550
|
81550
81550-52310 Lamp Assy, Rear Combination, Rh[08.2002 - 08.2003] NCP1#,SCP11 |
81550-52310 |
US $292.66 |
||
|
81550B
|
81550B
90981-11048
Bulb(For Rear Combination Lamp)
[06.2001 - 08.2002] NCP1#,SCP11 １２Ｖ ２１／５Ｗ,ＮＯ．３ |
90981-11048 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[06.2001 - 08.2002] NCP1#,SCP11 １２Ｖ ２１／５Ｗ,ＮＯ．３ |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[08.1999 - 08.2002] NCP1#,SCP11 １２Ｖ ２１Ｗ,ＮＯ．１ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.1999 - 06.2001] NCP1#,SCP11 １２Ｖ ２１／５Ｗ,ＮＯ．３ |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[08.1999 - 08.2002] NCP1#,SCP11 １２Ｖ ２１Ｗ，アンバー,ＮＯ．２ |
90981-15011 |
from US $4.60 |
||
|
81551
|
81551
81551-52070 Lens, Rear Combination Lamp, Rh[08.1999 - 03.2001] NCP1#,SCP11 |
81551-52070 |
US $90.27 |
||
| replacement | |||||
|
81551
|
81551
81551-52071 Lens, Rear Combination Lamp, Rh[08.1999 - 03.2001] NCP1#,SCP11 |
81551-52071 |
US $90.27 |
||
|
81551
|
81551
81551-52071 Lens, Rear Combination Lamp, Rh[03.2001 - 08.2002] NCP1#,SCP11 |
81551-52071 |
US $90.27 |
||
|
81551
|
81551
81551-52080 Lens, Rear Combination Lamp, Rh[08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81551-52080 |
US $90.27 |
||
|
81551
|
81551
81551-52310 Lens, Rear Combination Lamp, Rh[08.2002 - 08.2003] NCP1#,SCP11 |
81551-52310 |
US $90.27 |
||
|
81552
|
81552
81552-52070 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
81552-52070 |
US $15.58 |
||
| replacement | |||||
|
81552
|
81552
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
81552-52310 |
US $10.63 |
||
|
81552
|
81552
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
81552-52310 |
US $10.63 |
||
|
81554
|
81554
81554-52070 Gasket, Rear Combination Lamp Body, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
81554-52070 |
US $16.02 |
||
|
81554
|
81554
81554-52310 Gasket, Rear Combination Lamp Body, Rh[08.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
81554-52310 |
US $10.92 |
||
|
81555B
|
81555B
90075-60015 Socket Plug, No.1[08.1999 - 08.2002] NCP1#,SCP11 ﾊﾞﾂｸ OR ﾘﾔﾌｵｸﾞﾖｳ |
90075-60015 |
from US $6.40 |
||
|
81555B
|
81555B
90075-60017 Socket, Tail & Stop Lamp[08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾌｵｸﾞ ｽｲﾂﾁ),左側 |
90075-60017 |
from US $6.12 |
||
|
81555B
|
81555B
90075-60018 Socket, Tail & Stop Lamp[08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾌｵｸﾞ ｽｲﾂﾁ),右側 |
90075-60018 |
US $10.13 |
||
|
81555B
|
81555B
90075-60027 Socket, Rear Turn Signal Lamp[08.1999 - 08.2002] NCP1#,SCP11 ﾀ-ﾝﾖｳ |
90075-60027 |
from US $6.01 |
||
|
81555B
|
81555B
90075-60044 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 - 08.2003] NCP1#,SCP11 |
90075-60044 |
from US $8.31 |
||
|
81560
|
81560
81560-52060 Lamp Assy, Rear Combination, Lh[08.1999 - 03.2001] NCP1#,SCP11 |
81560-52060 |
US $340.70 |
||
| replacement | |||||
|
81560
|
81560
81560-52061 Lamp Assy, Rear Combination, Lh[08.1999 - 03.2001] NCP1#,SCP11 |
81560-52061 |
from US $215.92 |
||
|
81560
|
81560
81560-52061 Lamp Assy, Rear Combination, Lh[03.2001 - 08.2002] NCP1#,SCP11 |
81560-52061 |
from US $215.92 |
||
|
81560
|
81560
81560-52070 Lamp Assy, Rear Combination, Lh[08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81560-52070 |
US $294.11 |
||
|
81560
|
81560
81560-52290 Lamp Assy, Rear Combination, Lh[08.2002 - 08.2003] NCP1#,SCP11 |
81560-52290 |
US $292.66 |
||
|
81561
|
81561
81561-52060 Lens, Rear Combination Lamp, Lh[08.1999 - 03.2001] NCP1#,SCP11 |
81561-52060 |
US $90.27 |
||
| replacement | |||||
|
81561
|
81561
81561-52061 Lens, Rear Combination Lamp, Lh[08.1999 - 03.2001] NCP1#,SCP11 |
81561-52061 |
US $90.27 |
||
|
81561
|
81561
81561-52061 Lens, Rear Combination Lamp, Lh[03.2001 - 08.2002] NCP1#,SCP11 |
81561-52061 |
US $90.27 |
||
|
81561
|
81561
81561-52070 Lens, Rear Combination Lamp, Lh[08.1999 - 08.2002] NCP1#,SCP11 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81561-52070 |
US $90.27 |
||
|
81561
|
81561
81561-52290 Lens, Rear Combination Lamp, Lh[08.2002 - 08.2003] NCP1#,SCP11 |
81561-52290 |
US $90.27 |
||
|
81562
|
81562
81552-52070 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
81552-52070 |
US $15.58 |
||
| replacement | |||||
|
81562
|
81562
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.1999 - 08.2002] NCP1#,SCP11 |
81552-52310 |
US $10.63 |
||
|
81562
|
81562
81552-52310 Gasket, Rear Combination Lamp Lens, Rh[08.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
81552-52310 |
US $10.63 |
||
|
81564
|
81564
81564-52060 Gasket, Rear Combination Lamp Body, Lh[08.1999 - 08.2002] NCP1#,SCP11 |
81564-52060 |
US $16.02 |
||
|
81564
|
81564
81564-52290 Gasket, Rear Combination Lamp Body, Lh[08.2002 -] SCP11;NCP1#..ATM;NCP1#..MTM..F |
81564-52290 |
US $16.02 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9046709115
|
9046709115
90467-09115 CLIP |
90467-09115 |
US $2.56 |
||
