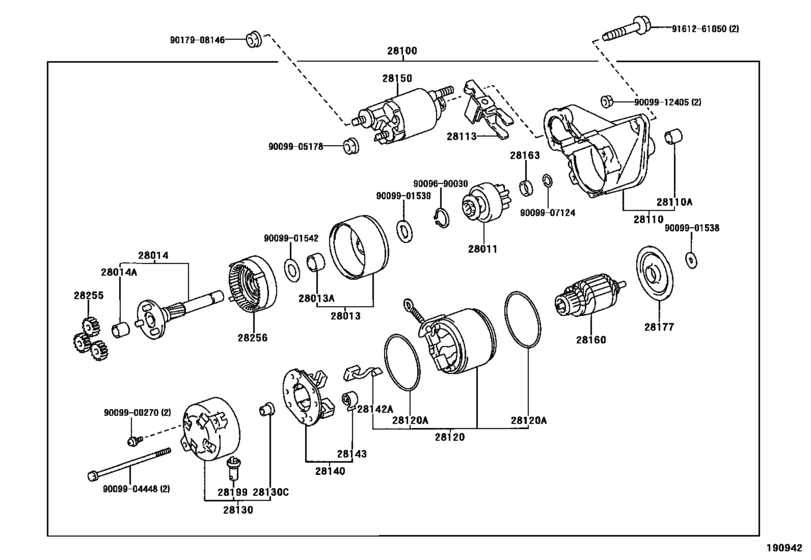

Starter ([08.1999 - 08.2002] 12V 1.0KW (9908-0208)1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-23020 Clutch Sub-Assy, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28011-23020 |
US $82.99 |
||
|
28011
|
28011
28011-23030 Clutch Sub-Assy, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 1.0KW |
28011-23030 |
US $82.99 |
||
|
28013
|
28013
28013-70020 Bearing, Starter Center & Shock Absorber, No.1[08.1999 - 05.2000] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28013-70020 |
US $29.12 |
||
| replacement | |||||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[08.1999 - 05.2000] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28013-70030 |
US $24.32 |
||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[05.2000 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
90099-10180 |
— | ||
|
28100
|
28100
28100-23020 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ ０．７ＫＷ |
28100-23020 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-23031 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ ０．７ＫＷ |
28100-23031 |
US $908.54 |
||
|
28100
|
28100
28100-23030 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ １．０ＫＷ |
28100-23030 |
US $908.54 |
||
| replacement | |||||
|
28100
|
28100
28100-23031 Starter Assy[08.1999 - 08.2002] 1SZFE..SCP11 １２Ｖ １．０ＫＷ |
28100-23031 |
US $908.54 |
||
|
28110
|
28110
28110-23020 Housing Assy, Starter Drive[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28110-23020 |
US $67.70 |
||
|
28110
|
28110
28110-23030 Housing Assy, Starter Drive[08.1999 - 08.2002] 1SZFE..SCP11 12V 1.0KW |
28110-23030 |
US $56.35 |
||
|
28110A
|
28110A
90099-10171
Bearing(For Starter Housing)
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
90099-10171 |
— | ||
|
28113
|
28113
28113-10020 Lever, Starter Pinion Drive[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28113-10020 |
US $11.94 |
||
|
28113
|
28113
28113-16070 Lever, Starter Pinion Drive[08.1999 - 08.2002] 1SZFE..SCP11 12V 1.0KW |
28113-16070 |
US $12.41 |
||
|
28120
|
28120
28120-10020
Yoke Assy, Starter
[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28120-10020 |
— | ||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 1.0KW |
28120-70050 |
— | ||
|
28120A
|
28120A
90099-14092
Ring, O(For Starter Yoke)
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
90099-14092 |
— | ||
|
28130
|
28130
28130-16070
Frame Assy, Starter Commutator End
[08.1999 - 08.2002] 1SZFE..SCP11 12V 1.0KW |
28130-16070 |
— | ||
|
28130
|
28130
28130-23020 Frame Assy, Starter Commutator End[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28130-23020 |
US $44.99 |
||
|
28130C
|
28130C
90099-10157
Bearing, Starter Flange
[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
90099-10157 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 0.8KW,1.0KW |
90099-10183 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28140-70020 |
from US $22.19 |
||
|
28142A
|
28142A
28142-10020 Brush, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28142-10020 |
from US $3.85 |
||
|
28142A
|
28142A
28142-70020 Brush, Starter[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 0.8KW,1.0KW |
28142-70020 |
from US $2.81 |
||
|
28143
|
28143
28143-10020
Spring, Starter Brush
[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28143-10020 |
— | ||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 0.8KW,1.0KW |
28143-70020 |
— | ||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28150-16160 |
US $125.22 |
||
|
28160
|
28160
28160-10020 Armature Assy, Starter[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28160-10020 |
US $135.41 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
28163
|
28163
28163-10021
Nut Or Collar, Pinion Stop, Starter
[08.1999 - 08.2002] 1SZFE..SCP11 12V 0.7KW |
28163-10021 |
— | ||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 12V 0.8KW,1.0KW |
28163-70020 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28177-70020 |
— | ||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28199-46080 |
from US $2.97 |
||
|
28255
|
28255
28255-70020
Gear, Planet
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[08.1999 - 08.2002] 1NZFE,2NZFE,1SZFE..NCP1#,SCP11 |
28256-70020 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.33 |
||
