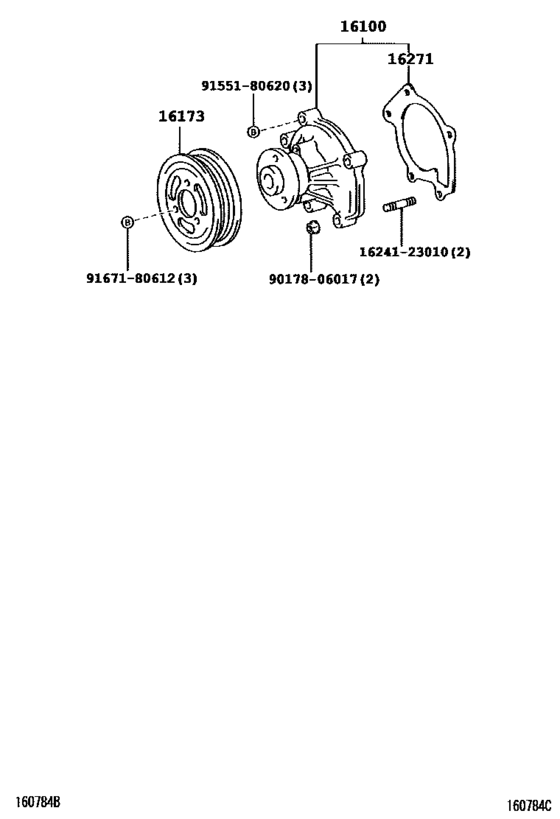

Water Pump ([08.1999 - ] (9908- )1SZFE) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-29115 Pump Assy, Engine Water[08.1999 - 08.2002] 1SZFE..SCP11 |
16100-29115 |
US $126.67 |
||
| replacement | |||||
|
16100
|
16100
16100-29117 Pump Assy, Engine Water[08.1999 - 08.2002] 1SZFE..SCP11 |
16100-29117 |
from US $128.76 |
||
|
16100
|
16100
16100-29116
Pump Assy, Engine Water
[06.2003 -] 1SZFE..SCP11 |
16100-29116 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-29117 Pump Assy, Engine Water[06.2003 -] 1SZFE..SCP11 |
16100-29117 |
from US $128.76 |
||
|
16173
|
16173
16173-23020 Pulley, Water Pump[08.1999 - 08.2002] 1SZFE..SCP11 |
16173-23020 |
US $48.05 |
||
|
16271
|
16271
16271-23020
Gasket, Water Pump
[08.1999 - 08.2002] 1SZFE..SCP11 |
16271-23020 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-23030 Gasket, Water Pump[08.1999 - 08.2002] 1SZFE..SCP11 |
16271-23030 |
US $8 |
||
|
1624123010
|
1624123010
16241-23010 Bolt, Stud(for Water Pump Coupling) |
16241-23010 |
US $5.68 |
||
|
9017806017
|
9017806017
90178-06017 Nut |
90178-06017 |
US $3.20 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.66 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
