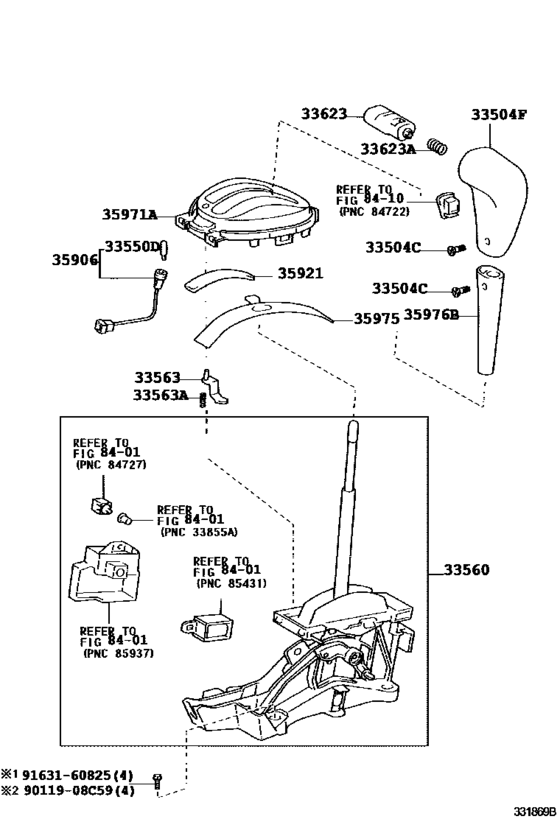

Shift Lever & Retainer ([08.2002 - ] (0208- )ATM) Diagram Toyota PLATZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP11
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- ATM
- From
- 08.1999
- To
- 11.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504C
|
33504C
90159-40221 Screw (For Shift Lever Knob Setting)[08.1999 - 08.2002] NCP1#,SCP11..ATM |
90159-40221 |
from US $1.05 |
||
|
33504F
|
33504F
33542-52010-B1 Knob Sub-Assy, Shift Lever[08.1999 - 08.2002] NCP1#,SCP11..ATM MD.CHARCOAL,TRIM9# |
33542-52010-B1 |
US $72.80 |
||
|
33504F
|
33504F
33542-52010-E0 Knob Sub-Assy, Shift Lever[08.2002 - 12.2005] NCP1#,SCP11..ATM SANDAL WOOD,TRIM4# |
33542-52010-E0 |
US $72.80 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[08.1999 - 08.2002] NCP1#,SCP11..ATM １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
33560
|
33560
33560-52090 Unit Assy, Shift Lock Control[08.2002 -] NCP1#,SCP11..ATM |
33560-52090 |
US $304.30 |
||
|
33563
|
33563
33563-52010 Button, Shift Lock Release[08.1999 - 08.2002] NCP1#,SCP11..ATM |
33563-52010 |
US $3.93 |
||
|
33563
|
33563
33563-52030 Button, Shift Lock Release[08.2002 -] NCP1#,SCP11..ATM |
33563-52030 |
US $2.48 |
||
|
33563A
|
33563A
90501-05055 Spring, Compression (For Shift Lock Release Button)[08.1999 - 08.2002] NCP1#,SCP11..ATM |
90501-05055 |
US $1.16 |
||
|
33623
|
33623
33623-52010-B1 Button, Shift Lever Knob[08.1999 - 08.2002] NCP1#,SCP11..ATM MD.CHARCOAL,TRIM9# |
33623-52010-B1 |
US $19.36 |
||
|
33623
|
33623
33623-52010-E0 Button, Shift Lever Knob[08.2002 - 12.2005] NCP1#,SCP11..ATM..F SANDAL WOOD,TRIM4# |
33623-52010-E0 |
US $19.51 |
||
|
33623
|
33623
33623-52040-E0 Button, Shift Lever Knob[08.2002 - 12.2005] NCP12..ATM..X;NCP16,SCP11..ATM ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),SANDAL WOOD,TRIM4# |
33623-52040-E0 |
US $19.51 |
||
|
33623A
|
33623A
90501-06082 Spring, Compression (For Shift Lever Knob Button)[08.1999 - 08.2002] NCP1#,SCP11..ATM |
90501-06082 |
US $0.87 |
||
|
35906
|
35906
35906-52010 Wire Sub-Assy, Indicator Lamp[08.1999 - 08.2002] NCP1#,SCP11..ATM |
35906-52010 |
US $10.63 |
||
|
35921
|
35921
35921-52010 Plate, Control Position Indicator[08.1999 - 08.2002] NCP1#,SCP11..ATM |
35921-52010 |
US $18.85 |
||
|
35971A
|
35971A
35971-52010 Housing, Position Indicator, Upper[08.1999 - 08.2002] NCP1#,SCP11..ATM |
35971-52010 |
US $20.09 |
||
|
35971A
|
35971A
35971-52050 Housing, Position Indicator, Upper[08.2000 - 08.2002] NCP12..ATM..X;NCP16,SCP11..ATM ﾌﾟﾚﾐｱﾑ ﾊﾟﾂｹ-ｼﾞ,ﾓｸﾒ |
35971-52050 |
US $20.09 |
||
|
35971A
|
35971A
35971-52110 Housing, Position Indicator, Upper[08.2002 -] NCP1#,SCP11..ATM |
35971-52110 |
US $12.52 |
||
|
35975
|
35975
35975-52010
Cover, Slide (For Position Indicator)
[08.1999 - 08.2002] NCP1#,SCP11..ATM |
35975-52010 |
— | ||
|
35975
|
35975
35975-52030 Cover, Slide (For Position Indicator)[08.2002 -] NCP1#,SCP11..ATM |
35975-52030 |
US $6.81 |
||
|
35976B
|
35976B
35976-52010-B1 Cover, Shift Lever Knob (For Floor Shift)[08.1999 - 08.2002] NCP1#,SCP11..ATM MD.CHARCOAL,TRIM9# |
35976-52010-B1 |
US $59.55 |
||
|
35976B
|
35976B
35976-52010-E0 Cover, Shift Lever Knob (For Floor Shift)[08.2002 - 12.2005] NCP1#,SCP11..ATM SANDAL WOOD,TRIM4# |
35976-52010-E0 |
US $59.70 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
