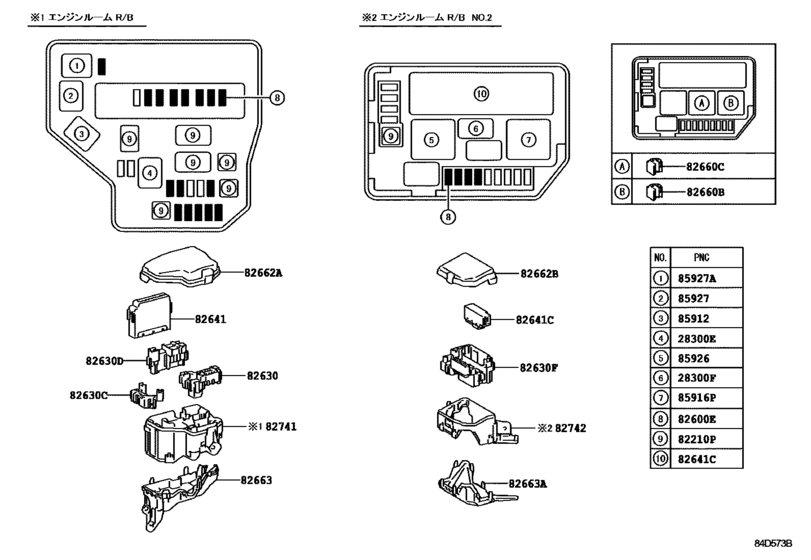

Switch & Relay & Computer ([07.2012 - 07.2015] ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ (1207-1507)) Diagram Toyota PORTE/ SPADE
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- NCP145
- grade
- F
- ENGINE
- 1NZFE
- Model
- SPADE
- From
- 07.2012
- Gear Shift Type
- CVT
- Vehicle Model
- SPADE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300E
|
28300E
28300-21020 Relay Assy, Starter[06.2013 - 07.2015] 1N#..NCP14#,NSP140..CBU |
28300-21020 |
from US $40.58 |
||
|
28300E
|
28300E
28300-28010
Relay Assy, Starter
[07.2012 - 05.2013] 1N#..NCP14#,NSP140..CBU |
28300-28010 |
— | ||
| replacement | |||||
|
28300E
|
28300E
28300-21020 Relay Assy, Starter[07.2012 - 05.2013] 1N#..NCP14#,NSP140..CBU |
28300-21020 |
from US $40.58 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[07.2012 - 07.2015] NCP14#,NSP140..CBU ４０Ａ，メス端子 |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[07.2012 - 07.2015] NCP14#,NSP140..CBU ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[07.2012 - 07.2015] NCP14#,NSP140..CBU ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[07.2012 - 07.2015] NCP14#,NSP140..CBU ８０Ａ，メス端子 |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[07.2012 - 07.2015] NCP14#,NSP140..CBU ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[07.2012 - 07.2015] NCP14#,NSP140..CBU １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[07.2016 - 12.2017] NCP145..CBU １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[07.2012 - 07.2015] NCP14#,NSP140..CBU ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[07.2016 - 12.2017] NCP145..CBU ３０Ａ，ミニ ヒューズ; NSP141..SPADE..CBU ３０Ａ，ミニ ヒューズ,ヘッドランプ−ディスチャージ４灯 タイプＢ; NSP141..PORTE..CBU ３０Ａ，ミニ ヒューズ,ヘッドランプ−ディスチャージ４灯 タイプＡ |
90982-09025 |
from US $0.92 |
||
|
82630
|
82630
82631-52010 Holder Assy, Fuse[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82631-52010 |
US $18.93 |
||
|
82630C
|
82630C
82631-52020 Holder Assy, Fuse[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82631-52020 |
US $9.46 |
||
|
82630D
|
82630D
82631-52030 Holder, Fuse[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82631-52030 |
US $24.90 |
||
|
82630F
|
82630F
82631-52040 Holder, Fuse[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82631-52040 |
US $26.44 |
||
|
82641
|
82641
82641-52020 Relay, Integration No.1[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82641-52020 |
US $76.35 |
||
|
82641C
|
82641C
82641-52060 Relay, Integration No.2[07.2012 - 07.2015] NCP14#,NSP140..CBU 寒冷地仕様 |
82641-52060 |
US $84.91 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82660-0H070 |
US $6.99 |
||
|
82662A
|
82662A
82662-52850 Cover, Relay Block, Upper, No.1[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82662-52850 |
US $19.80 |
||
|
82662A
|
82662A
82662-52852 Cover, Relay Block, Upper, No.1[07.2015 -] NCP145,NSP141..CBU |
82662-52852 |
US $17.33 |
||
|
82662B
|
82662B
82662-52661 Cover, Relay Block, Upper, No.2[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82662-52661 |
US $16.07 |
||
|
82662B
|
82662B
82662-52662 Cover, Relay Block, Upper, No.2[07.2015 -] NCP145,NSP141..CBU |
82662-52662 |
US $12.52 |
||
|
82662B
|
82662B
82662-52701 Cover, Relay Block, Upper, No.2[07.2012 - 07.2015] NCP14#,NSP140..SPADE..(F,G,X,Y)..CBU ヘッドランプ−ディスチャージ４灯 タイプＢ; NCP14#,NSP140..PORTE..(F,G,X,Y)..CBU ヘッドランプ−ディスチャージ４灯 タイプＡ |
82662-52701 |
US $13.83 |
||
|
82662B
|
82662B
82662-52702 Cover, Relay Block, Upper, No.2[07.2015 -] NCP145,NSP141..SPADE..(F,G,X,Y)..CBU ヘッドランプ−ディスチャージ４灯 タイプＢ; NCP145,NSP141..PORTE..(F,G,X,Y)..CBU ヘッドランプ−ディスチャージ４灯 タイプＡ |
82662-52702 |
US $12.52 |
||
|
82663
|
82663
82663-52080 Cover, Relay Block, Lower[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82663-52080 |
US $23.41 |
||
|
82663A
|
82663A
82663-52090 Cover, Relay Block, Lower, No.2[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82663-52090 |
US $15.96 |
||
|
82741
|
82741
82741-12130 Block, Engine Room Relay[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82741-12130 |
US $47.12 |
||
|
82742
|
82742
82741-52080 Block, Engine Room Relay, No.2[07.2012 - 07.2015] NCP14#,NSP140..CBU |
82741-52080 |
US $31.62 |
||
|
85912
|
85912
90987-02027 Relay[07.2012 - 07.2015] NCP14#,NSP140..CBU |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[07.2015 -] NCP145,NSP141..CBU |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[07.2015 -] NCP145,NSP141..SPADE..CBU; NCP145,NSP141..PORTE..(F,G,X,Y)..CBU ヘッドランプ−ディスチャージ４灯 タイプＡ |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[07.2012 - 07.2015] NCP14#,NSP140..CBU |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[07.2012 - 07.2015] NCP14#,NSP140..CBU |
90987-04004 |
from US $42.71 |
||
