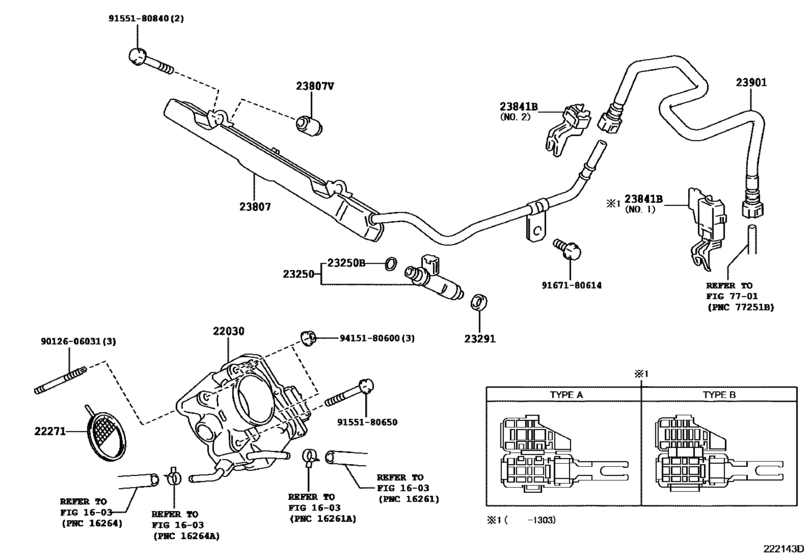

Fuel Injection System ([05.2007 - ] (0705- )1NZFE) Diagram Toyota PREMIO/ ALLION
- Year
- 2007 - 2018
- Sales region
- Japan
- Frame
- NZT260
- ENGINE
- 1NZFE
- Model
- PREMIO
- From
- 05.2007
- Vehicle Model
- Premio
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-21030 Body Assy, Throttle W/motor[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
22030-21030 |
US $822.12 |
||
|
22030
|
22030
22030-21040 Body Assy, Throttle W/motor[12.2012 - 06.2016] 1NZFE..NZT260..CBU |
22030-21040 |
US $822.12 |
||
|
22271
|
22271
22271-21060 Gasket, Throttle Body[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
22271-21060 |
from US $3.82 |
||
|
23250
|
23250
23209-21040 Injector Assy, Fuel[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23209-21040 |
US $183.53 |
||
| replacement | |||||
|
23250
|
23250
23209-21120 Injector Assy, Fuel[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23209-21120 |
from US $170.86 |
||
|
23250
|
23250
23209-21100 Injector Assy, Fuel[12.2012 - 06.2016] 1NZFE..NZT260..CBU |
23209-21100 |
US $174.08 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[05.2007 - 04.2010] 1NZFE..NZT260..CBU; 2ZRFE,3ZRFAE..ZRT26#..CBU |
90301-07037 |
from US $2.18 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[07.2011 - 06.2016] 1NZFE..NZT260..CBU |
23291-23010 |
from US $2.59 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23291-41010 |
from US $2.61 |
||
|
23807
|
23807
23807-21030
Pipe Sub-Assy, Fuel Delivery
[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23807-21030 |
— | ||
| replacement | |||||
|
23807
|
23807
23807-21031 Pipe Sub-Assy, Fuel Delivery[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23807-21031 |
US $132.84 |
||
|
23807
|
23807
23807-21031 Pipe Sub-Assy, Fuel Delivery[11.2014 - 06.2016] 1NZFE..NZT260..CBU |
23807-21031 |
US $132.84 |
||
|
23807V
|
23807V
23891-21010 Spacer, No.1(For Delivery Pipe)[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23891-21010 |
US $4.30 |
||
|
23841B
|
23841B
23841-21040 Clamp, Fuel Pipe, No.1(For Efi)[05.2007 - 04.2010] 1NZFE..NZT260..CBU ＮＯ．１; 2ZRFE,3ZRFAE..ZRT26#..CBU |
23841-21040 |
US $13.54 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[05.2007 - 04.2010] 1NZFE..NZT260..CBU ＮＯ．２ |
23841-21050 |
US $3.94 |
||
|
23841B
|
23841B
23841-37090 Clamp, Fuel Pipe, No.1(For Efi)[08.2012 - 03.2013] 1NZFE..NZT260..CBU ＮＯ．１，ＴＹＰＥ Ｂ：イラスト参照 |
23841-37090 |
US $14.56 |
||
|
23901
|
23901
23901-21160 Tube Sub-Assy, Fuel[05.2007 - 04.2010] 1NZFE..NZT260..CBU |
23901-21160 |
US $49.21 |
||
|
9012606031
|
9012606031
90126-06031 Stud, Bolt |
90126-06031 |
US $0.70 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.80 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
US $2.15 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
