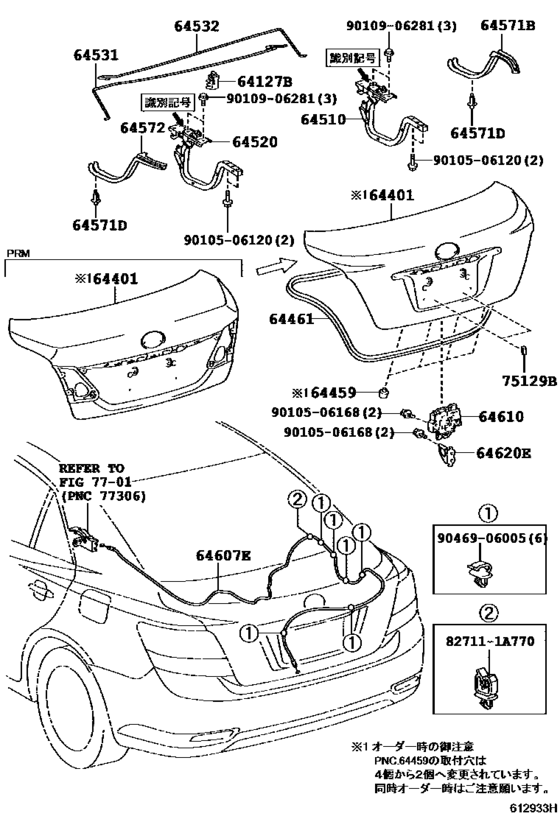

Luggage Compartment Door & Lock ([05.2007 - ] (0705- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2007 - 2018
- Sales region
- Japan
- Frame
- NZT260
- ENGINE
- 1NZFE
- Model
- PREMIO
- From
- 05.2007
- Vehicle Model
- Premio
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64127B
|
64127B
64127-33041 Support, Luggage Compartment Door Torsion Bar[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
64127-33041 |
from US $5.92 |
||
|
64401
|
64401
64401-20A40 Panel Sub-Assy, Luggage Compartment Door[05.2007 - 04.2010] NZT260,ZRT26#..PRM..CBU |
64401-20A40 |
US $594.36 |
||
|
64459
|
64459
90541-09116 Cushion(For Luggage Compartment Door Panel)[06.2013 - 06.2016] NZT260,ZRT26#..CBU |
90541-09116 |
from US $1.79 |
||
|
64461
|
64461
64461-20460 Weatherstrip, Luggage Compartment Door[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
64461-20460 |
US $85.28 |
||
|
64510
|
64510
64510-20230 Hinge Assy, Luggage Compartment Door, Rh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝０ |
64510-20230 |
from US $52.25 |
||
|
64510
|
64510
64510-20240 Hinge Assy, Luggage Compartment Door, Rh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝＋ |
64510-20240 |
US $42.66 |
||
| replacement | |||||
|
64510
|
64510
64510-20230 Hinge Assy, Luggage Compartment Door, Rh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝＋ |
64510-20230 |
from US $52.25 |
||
|
64510
|
64510
64510-20250 Hinge Assy, Luggage Compartment Door, Rh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝− |
64510-20250 |
US $42.66 |
||
| replacement | |||||
|
64510
|
64510
64510-20230 Hinge Assy, Luggage Compartment Door, Rh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝− |
64510-20230 |
from US $52.25 |
||
|
64520
|
64520
64520-20220 Hinge Assy, Luggage Compartment Door, Lh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝０ |
64520-20220 |
US $52.25 |
||
|
64520
|
64520
64520-20230 Hinge Assy, Luggage Compartment Door, Lh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝＋ |
64520-20230 |
US $42.66 |
||
| replacement | |||||
|
64520
|
64520
64520-20220 Hinge Assy, Luggage Compartment Door, Lh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝＋ |
64520-20220 |
US $52.25 |
||
|
64520
|
64520
64520-20240 Hinge Assy, Luggage Compartment Door, Lh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝− |
64520-20240 |
US $42.66 |
||
| replacement | |||||
|
64520
|
64520
64520-20220 Hinge Assy, Luggage Compartment Door, Lh[05.2007 - 04.2010] NZT260,ZRT26#..CBU 識別記号＝− |
64520-20220 |
US $52.25 |
||
|
64531
|
64531
64531-20660 Bar, Luggage Door Hinge Torsion, Rh[05.2007 - 04.2010] NZT260,ZRT26#..PRM..CBU |
64531-20660 |
US $23 |
||
|
64531
|
64531
64531-20680 Bar, Luggage Door Hinge Torsion, Rh[06.2016 -] NZT260,ZRT26#..PRM..CBU |
64531-20680 |
US $20.53 |
||
|
64532
|
64532
64532-20670 Bar, Luggage Door Hinge Torsion, Lh[05.2007 - 04.2010] NZT260,ZRT26#..PRM..CBU |
64532-20670 |
US $23 |
||
|
64532
|
64532
64532-20690 Bar, Luggage Door Hinge Torsion, Lh[06.2016 -] NZT260,ZRT26#..PRM..CBU |
64532-20690 |
US $20.53 |
||
|
64571B
|
64571B
64571-20020 Cover, Luggage Compartment Door Hinge, Rh[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
64571-20020 |
US $42.34 |
||
|
64571D
|
64571D
90467-07076-C0 Clip, Radiator Grille[05.2007 - 04.2010] NZT260,ZRT26#..CBU BLACK |
90467-07076-C0 |
from US $0.92 |
||
|
64571D
|
64571D
90467-07076-C7 Clip, Hood Moulding[03.2017 -] NZT260,ZRT26#..CBU BLACK |
90467-07076-C7 |
from US $0.84 |
||
|
64572
|
64572
64572-20020 Cover, Luggage Compartment Door Hinge, Lh[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
64572-20020 |
from US $39.27 |
||
|
64607E
|
64607E
64607-20A00 Cable Sub-Assy, Luggage Door Lock Control[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
64607-20A00 |
US $14.56 |
||
|
64610
|
64610
64600-12010
Lock Assy, Luggage Compartment Door
[09.2008 - 04.2010] NZT260,ZRT26#..CBU |
64600-12010 |
— | ||
| replacement | |||||
|
64610
|
64610
64600-20030 Lock Assy, Luggage Compartment Door[09.2008 - 04.2010] NZT260,ZRT26#..CBU |
64600-20030 |
US $171.20 |
||
|
64610
|
64610
64600-20030 Lock Assy, Luggage Compartment Door[01.2013 - 06.2016] NZT260,ZRT26#..CBU |
64600-20030 |
US $171.20 |
||
|
64610
|
64610
64600-52010
Lock Assy, Luggage Compartment Door
[05.2007 - 09.2008] NZT260,ZRT26#..CBU |
64600-52010 |
— | ||
| replacement | |||||
|
64610
|
64610
64600-20030 Lock Assy, Luggage Compartment Door[05.2007 - 09.2008] NZT260,ZRT26#..CBU |
64600-20030 |
US $171.20 |
||
|
64620E
|
64620E
64621-33010 Striker Assy, Luggage Compartment Door[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
64621-33010 |
from US $3.96 |
||
|
75129B
|
75129B
75129-13020 Cushion, Rr Licence Plate[11.2008 - 04.2010] NZT260,ZRT26#..CBU |
75129-13020 |
from US $0.88 |
||
|
75129B
|
75129B
75129-21010 Cushion, Windshield[05.2007 - 11.2008] NZT260,ZRT26#..CBU |
75129-21010 |
US $1.43 |
||
|
827111A770
|
827111A770
82711-1A770 Clamp, Wiring Harness |
82711-1A770 |
US $1.61 |
||
|
9010506120
|
9010506120
90105-06120 BOLT WASHER BASED |
90105-06120 |
from US $0.98 |
||
|
9010506168
|
9010506168
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.72 |
||
|
9010906281
|
9010906281
90109-06281 BOLT |
90109-06281 |
from US $0.80 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.33 |
||
