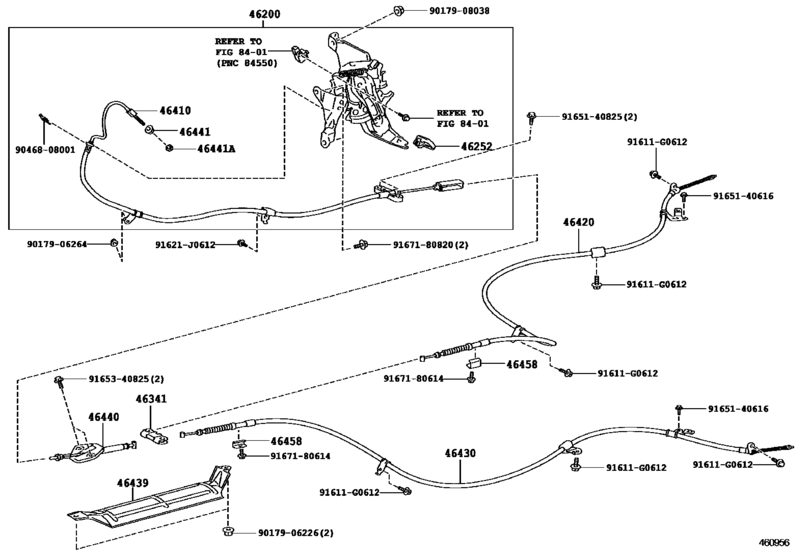

Parking Brake & Cable ([05.2007 - ] (0705- )NZT260,ZRT260,261) Diagram Toyota PREMIO/ ALLION
- Year
- 2007 - 2018
- Sales region
- Japan
- Frame
- NZT260
- ENGINE
- 1NZFE
- Model
- PREMIO
- From
- 05.2007
- Vehicle Model
- Premio
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-20050 Pedal Assy, Parking Brake Control[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46200-20050 |
US $189.28 |
||
|
46252
|
46252
46252-22010 Pad, Parking Pedal[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46252-22010 |
from US $3.74 |
||
|
46341
|
46341
46341-12020 Equalizer, Parking Brake[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46341-12020 |
US $7.88 |
||
|
46410
|
46410
46410-20470 Cable Assy, Parking Brake, No.1[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46410-20470 |
US $32.47 |
||
|
46420
|
46420
46420-20650 Cable Assy, Parking Brake, No.2[05.2007 - 04.2010] NZT260,ZRT260..CBU |
46420-20650 |
US $45.14 |
||
|
46430
|
46430
46430-20650 Cable Assy, Parking Brake, No.3[05.2007 - 04.2010] NZT260,ZRT260..CBU |
46430-20650 |
US $45.14 |
||
|
46439
|
46439
46408-63010 Insulator, Parking Brake Cable Heat[05.2007 - 04.2010] NZT260,ZRT260,261..CBU |
46408-63010 |
US $19.07 |
||
|
46440
|
46440
46440-21010 Cable Assy, Parking Brake, No.4[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46440-21010 |
US $16.89 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46441-12010 |
US $2.87 |
||
|
46441A
|
46441A
90179-06299 Nut, Wire Adjusting, No.1[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
90179-06299 |
from US $0.66 |
||
|
46458
|
46458
46458-28010 Retainer, Cable[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
46458-28010 |
US $4.12 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9017906226
|
9017906226
90179-06226
Nut (For Rear Wiper Arm Setting)
|
90179-06226 |
— | ||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.84 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.72 |
||
|
9165340825
|
9165340825
91653-40825 New Genuine Part |
91653-40825 |
US $1.02 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
