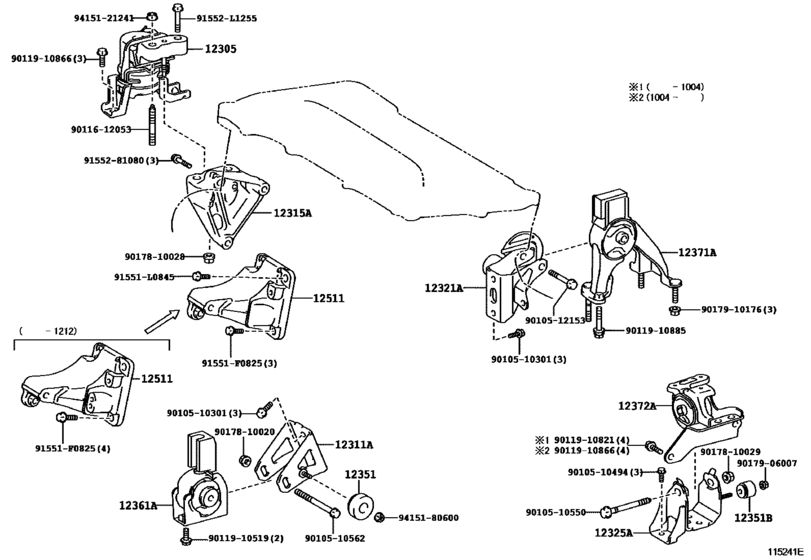

Mounting ([12.2007 - ] (0712- )3ZRFAE) Diagram Toyota PREMIO/ ALLION
- Year
- 2007 - 2018
- Sales region
- Japan
- Frame
- ZRT261
- ENGINE
- 3ZRFAE
- Model
- PREMIO
- From
- 12.2007
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-37120
Insulator Sub-Assy, Engine Mounting, Rh
[12.2007 - 07.2009] 3ZRFAE..ZRT261..CBU |
12305-37120 |
— | ||
| replacement | |||||
|
12305
|
12305
12305-37121 Insulator Sub-Assy, Engine Mounting, Rh[12.2007 - 07.2009] 3ZRFAE..ZRT261..CBU |
12305-37121 |
from US $170.61 |
||
|
12305
|
12305
12305-37121 Insulator Sub-Assy, Engine Mounting, Rh[08.2009 - 04.2010] 3ZRFAE..ZRT261..CBU |
12305-37121 |
from US $170.61 |
||
|
12311A
|
12311A
12311-37040 Bracket, Engine Mounting, Front(For Transverse Engine)[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12311-37040 |
US $24.29 |
||
|
12315A
|
12315A
12315-37030 Bracket, Engine Mounting, Rh(For Transverse Engine)[05.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
12315-37030 |
US $46.30 |
||
|
12321A
|
12321A
12321-37030 Bracket, Engine Mounting, Rear(For Transverse Engine)[12.2007 - 06.2008] 3ZRFAE..ZRT261..CBU |
12321-37030 |
US $56.35 |
||
| replacement | |||||
|
12321A
|
12321A
12321-37031 Bracket, Engine Mounting, Rear(For Transverse Engine)[12.2007 - 06.2008] 3ZRFAE..ZRT261..CBU |
12321-37031 |
US $35.38 |
||
|
12321A
|
12321A
12321-37031 Bracket, Engine Mounting, Rear(For Transverse Engine)[07.2008 - 04.2010] 3ZRFAE..ZRT261..CBU |
12321-37031 |
US $35.38 |
||
|
12325A
|
12325A
12325-37041 Bracket, Engine Mounting, Lh(For Transverse Engine)[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12325-37041 |
US $25.77 |
||
|
12351
|
12351
12351-28010 Damper, Engine Mounting[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12351-28010 |
US $32.83 |
||
|
12351B
|
12351B
12351-37040 Damper, Engine Mounting(For Insulator)[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12351-37040 |
US $16.77 |
||
|
12361A
|
12361A
12361-37040
Insulator, Engine Mounting, Front(For Transverse Engine)
[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12361-37040 |
— | ||
| replacement | |||||
|
12361A
|
12361A
12361-37140 Insulator, Engine Mounting, Front(For Transverse Engine)[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12361-37140 |
US $85.84 |
||
|
12371A
|
12371A
12371-37070 Insulator, Engine Mounting, Rear[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12371-37070 |
from US $121.76 |
||
|
12372A
|
12372A
12372-37050
Insulator, Engine Mounting, Lh(For Transverse Engine)
[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12372-37050 |
— | ||
| replacement | |||||
|
12372A
|
12372A
12372-37051 Insulator, Engine Mounting, Lh(For Transverse Engine)[12.2007 - 04.2010] 3ZRFAE..ZRT261..CBU |
12372-37051 |
US $112.48 |
||
|
12372A
|
12372A
12372-37051 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.2013 - 06.2016] 3ZRFAE..ZRT261..CBU |
12372-37051 |
US $112.48 |
||
|
12511
|
12511
12501-37010 Bracket Sub-Assy, Alternator[12.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
12501-37010 |
US $34.59 |
||
|
12511
|
12511
12511-37010 Bracket, Alternator, No.1[05.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
12511-37010 |
US $29.85 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.28 |
||
|
91551L0845
|
91551L0845
91551-L0845 BOLT FLANGE |
91551-L0845 |
US $0.79 |
||
|
91552L1255
|
91552L1255
91552-L1255 New Genuine Part |
91552-L1255 |
US $3.04 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010510562
|
9010510562
90105-10562 Bolt, No.2(For Alternator) |
90105-10562 |
US $3.84 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.28 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011910519
|
9011910519
90119-10519 New Genuine Part |
90119-10519 |
US $3.20 |
||
|
9011910821
|
9011910821
90119-10821 New Genuine Part |
90119-10821 |
US $2.72 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.99 |
||
|
9011910885
|
9011910885
90119-10885 New Genuine Part |
90119-10885 |
US $4.16 |
||
|
9017810020
|
9017810020
90178-10020 New Genuine Part |
90178-10020 |
US $2.24 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
US $1.60 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.40 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.56 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
US $1.60 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
