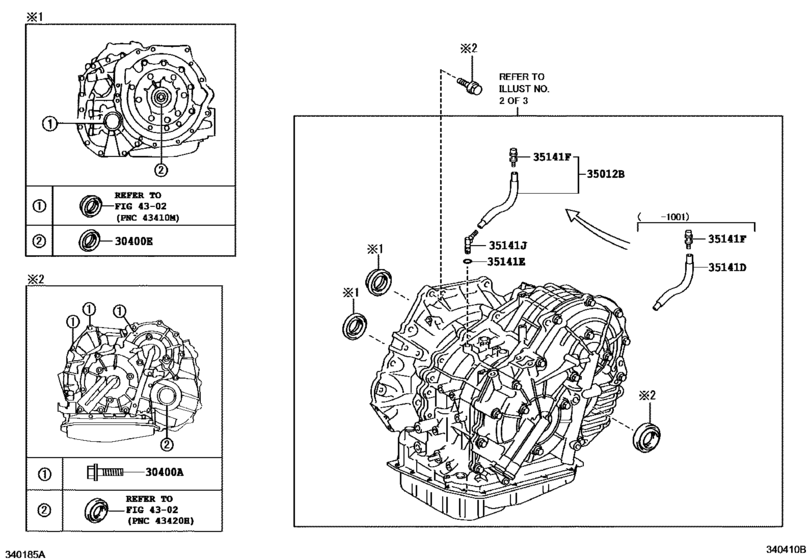

Transaxle Assy(Cvt) ([12.2007 - ] K111 (0712- )ZRT261) Diagram Toyota PREMIO/ ALLION
- Year
- 2007 - 2018
- Sales region
- Japan
- Frame
- ZRT261
- ENGINE
- 3ZRFAE
- Model
- PREMIO
- From
- 12.2007
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400A
|
30400A
91512-61045 Bolt[12.2007 - 04.2010] ZRT261..CBU |
91512-61045 |
US $2.24 |
||
|
30400E
|
30400E
90311-45025
Seal, Type T Oil(For Cvt Oil Pump)
[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
90311-45025 |
— | ||
| replacement | |||||
|
30400E
|
30400E
90311-45027 Seal, Type T Oil(For Cvt Oil Pump)[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
90311-45027 |
from US $7.52 |
||
|
30400E
|
30400E
90311-45027 Seal, Type T Oil(For Cvt Oil Pump)[12.2011 - 06.2016] NZT260,ZRT26#..CBU |
90311-45027 |
from US $7.52 |
||
|
35012B
|
35012B
3510A-44010 Hose Sub-Assy, Transmission BreatherTRANSMISSION BREATHER [01.2010 - 04.2010] ZRT261..CBU |
3510A-44010 |
US $14.27 |
||
| replacement | |||||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[01.2010 - 04.2010] ZRT261..CBU |
3510A-44012 |
US $16.11 |
||
|
35012B
|
35012B
3510A-44011 Hose Sub-Assy, Transmission Breather[01.2012 - 04.2012] ZRT261..CBU |
3510A-44011 |
US $14.27 |
||
| replacement | |||||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[01.2012 - 04.2012] ZRT261..CBU |
3510A-44012 |
US $16.11 |
||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[04.2012 - 06.2016] ZRT261..CBU |
3510A-44012 |
US $16.11 |
||
|
35141D
|
35141D
35121-63010 Hose(For Breather Plug)[12.2007 - 01.2010] ZRT261..CBU |
35121-63010 |
US $10.34 |
||
| replacement | |||||
|
35141D
|
35141D
3510A-44012 Hose Sub-Assy, Transmission Breather[12.2007 - 01.2010] ZRT261..CBU |
3510A-44012 |
US $16.11 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
90301-06005 |
from US $2.40 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[12.2015 - 06.2016] ZRT261..CBU |
90301-06021 |
US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[05.2007 - 04.2010] NZT260,ZRT26#..CBU |
90930-03149 |
from US $3.52 |
||
|
35141J
|
35141J
90930-03164 Plug, Breather(For Transaxle)[12.2007 - 04.2010] ZRT261..CBU |
90930-03164 |
US $5.76 |
||
