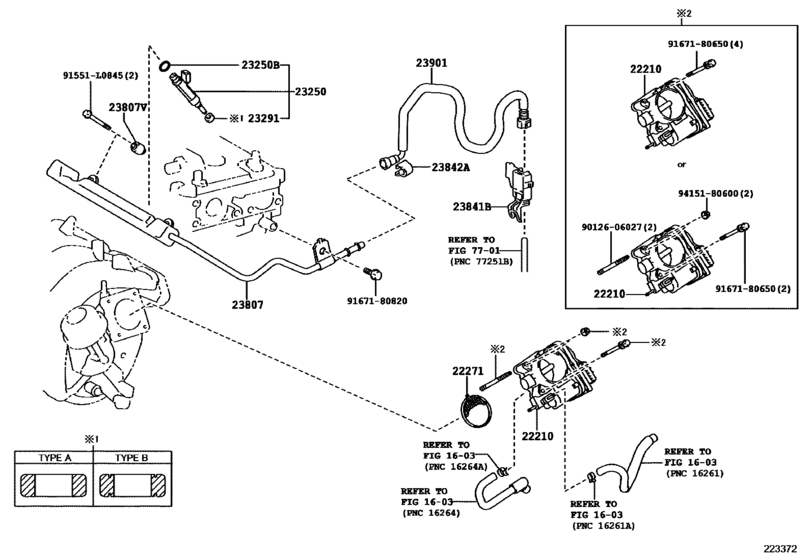

Fuel Injection System ([05.2007 - ] (0705- )2ZRFE) Diagram Toyota PREMIO/ ALLION
- Year
- 2007 - 2010
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFE
- Model
- PREMIO
- From
- 05.2007
- To
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-37010 Body Assy, Throttle[05.2007 - 04.2010] 2ZRFE..ZRT260,265 |
22030-37010 |
US $1,071.22 |
||
|
22271
|
22271
22271-75031 Gasket, Throttle Body[05.2007 - 09.2009] 2ZRFE..ZRT260,265 |
22271-75031 |
from US $3.02 |
||
|
23250
|
23250
23209-39145 Injector Assy, Fuel[05.2007 - 02.2009] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23209-39145 |
from US $182.88 |
||
|
23250
|
23250
23209-39146 Injector Assy, FuelFUEL [02.2009 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23209-39146 |
from US $169.16 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[05.2007 - 04.2010] 1NZFE..NZT260..CBU; 2ZRFE,3ZRFAE..ZRT26#..CBU |
90301-07037 |
from US $2.20 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[05.2008 - 02.2009] 2ZRFE,3ZRFAE..ZRT26#..CBU ＴＹＰＥ Ａ：イラスト参照 |
23291-23010 |
from US $2.98 |
||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[02.2009 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
23291-28020 |
from US $3.90 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.2007 - 05.2008] 2ZRFE,3ZRFAE..ZRT26#..CBU ＴＹＰＥ Ａ：イラスト参照 |
23291-41010 |
from US $2.77 |
||
|
23807
|
23807
23814-37050 Pipe Sub-Assy, Fuel Delivery[05.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23814-37050 |
US $160.16 |
||
| replacement | |||||
|
23807
|
23807
23814-37051 Pipe Sub-Assy, Fuel Delivery[05.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23814-37051 |
from US $87.73 |
||
|
23807V
|
23807V
23891-37010 Spacer, No.1(For Delivery Pipe)[05.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23891-37010 |
US $3.84 |
||
|
23841B
|
23841B
23841-21040 Clamp, Fuel Pipe, No.1(For Efi)[05.2007 - 04.2010] 1NZFE..NZT260..CBU ＮＯ．１; 2ZRFE,3ZRFAE..ZRT26#..CBU |
23841-21040 |
US $13.54 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[05.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23842-28010 |
from US $6.16 |
||
|
23901
|
23901
23901-37060 Tube Sub-Assy, Fuel[05.2007 - 08.2007] 2ZRFE..ZRT26# |
23901-37060 |
US $96.10 |
||
| replacement | |||||
|
23901
|
23901
23901-37090 Tube Sub-Assy, Fuel[05.2007 - 08.2007] 2ZRFE..ZRT26# |
23901-37090 |
US $59.99 |
||
|
23901
|
23901
23901-37090 Tube Sub-Assy, Fuel[09.2007 - 04.2010] 2ZRFE,3ZRFAE..ZRT26#..CBU |
23901-37090 |
US $59.99 |
||
|
91551L0845
|
91551L0845
91551-L0845 BOLT FLANGE |
91551-L0845 |
US $0.79 |
||
|
9012606027
|
9012606027
90126-06027 STUD HEXALOBULAR |
90126-06027 |
US $1.28 |
||
|
9167180650
|
9167180650
91671-80650 New Genuine Part |
91671-80650 |
US $1.28 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
