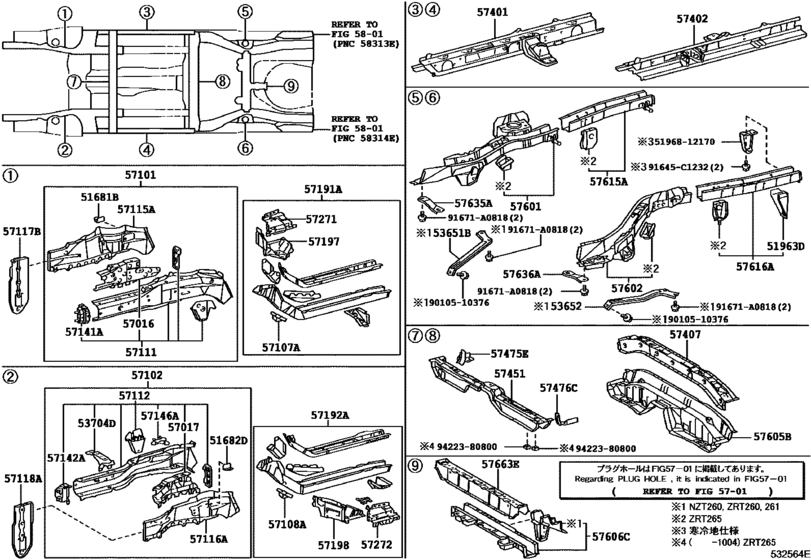

Floor Side Member ([05.2007 - ] (0705- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51681B
|
51681B
51681-32050 Bracket, Flexible Hose[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
51681-32050 |
US $7.86 |
||
|
51682D
|
51682D
51682-32040 Bracket, Flexible Hose, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
51682-32040 |
US $8.01 |
||
|
51963D
|
51963D
51968-32030 Hook, Transport, Rear Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
51968-32030 |
US $11.94 |
||
|
53704D
|
53704D
53771-63011 Support Sub-Assy, Battery, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53771-63011 |
US $17.76 |
||
|
57016
|
57016
57016-20060 Reinforcement Sub-Assy, Front Side Member, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57016-20060 |
US $35.38 |
||
|
57017
|
57017
57017-12050 Reinforcement Sub-Assy, Front Side Member, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57017-12050 |
US $41.64 |
||
|
57101
|
57101
57101-2B908 Member Sub-Assy, Front Side, RhFRONT SIDE, RH [04.2010 - 11.2014] NZT260,ZRT26#..CBU |
57101-2B908 |
US $279.55 |
||
|
57101
|
57101
57101-2B909 Member Sub-Assy, Front Side, Rh[11.2014 - 06.2016] NZT260,ZRT26#..CBU |
57101-2B909 |
US $253.34 |
||
|
57102
|
57102
57102-21906 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57102-21906 |
US $253.34 |
||
|
57107A
|
57107A
57107-32060 Plate Sub-Assy, Front Side Member, No.2 Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57107-32060 |
US $22.71 |
||
|
57108A
|
57108A
57108-32060 Plate Sub-Assy, Front Side Member, No.2 Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57108-32060 |
US $22.71 |
||
|
57111
|
57111
57111-21906 Member, Front Side, RhFRONT SIDE, RH [04.2010 - 11.2014] NZT260,ZRT26#..CBU |
57111-21906 |
US $199.47 |
||
|
57111
|
57111
57111-21908 Member, Front Side, Rh[11.2014 - 06.2016] NZT260,ZRT26#..CBU |
57111-21908 |
US $180.54 |
||
|
57112
|
57112
57112-21905 Member, Front Side, LhFRONT SIDE, LH [04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57112-21905 |
US $198.02 |
||
|
57115A
|
57115A
57115-32900 Plate, Front Side Member, Outer Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57115-32900 |
US $129.58 |
||
|
57116A
|
57116A
57116-20250 Plate, Front Side Member, Outer Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57116-20250 |
US $75.71 |
||
|
57117B
|
57117B
57117-63010 Reinforcement, Front Bumper Mounting, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57117-63010 |
US $45.02 |
||
|
57118A
|
57118A
57118-63010 Reinforcement, Front Bumper Mounting, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57118-63010 |
US $46.37 |
||
|
57141A
|
57141A
57141-63010 Support, Front Bumper Arm, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57141-63010 |
US $23.69 |
||
|
57142A
|
57142A
57142-63010 Support, Front Bumper Arm, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57142-63010 |
US $23.69 |
||
|
57146A
|
57146A
57146-12020 Reinforcement, Front Side Member, Rear Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57146-12020 |
US $7.28 |
||
|
57191A
|
57191A
57033-20900 Member, Front Side, Inner Rear Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57033-20900 |
US $398.94 |
||
|
57192A
|
57192A
57034-20900 Member, Front Side, Inner Rear Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57034-20900 |
US $398.94 |
||
|
57197
|
57197
57197-20102 Box, Torque, Front Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57197-20102 |
US $55.47 |
||
|
57198
|
57198
57198-20112 Box, Torque, Front Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57198-20112 |
US $55.47 |
||
|
57271
|
57271
57271-20070 Extension, Steering Gear Box Support Member, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57271-20070 |
US $33.20 |
||
|
57272
|
57272
57272-20070 Extension, Steering Gear Box Suport Member, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57272-20070 |
US $33.20 |
||
|
57401
|
57401
57401-21050 Member Sub-Assy, Main Floor Side, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57401-21050 |
US $170.35 |
||
|
57402
|
57402
57402-21050 Member Sub-Assy, Main Floor Side, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57402-21050 |
US $170.35 |
||
|
57407
|
57407
57407-21040 Cross Member Sub-Assy, Center Floor, No.1[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57407-21040 |
US $90.27 |
||
|
57451
|
57451
57408-63011 Member, Front Floor Cross[04.2010 - 06.2016] ZRT265..CBU |
57408-63011 |
US $158.70 |
||
|
57475E
|
57475E
57475-20070 Plate, Front Floor Crossmember[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57475-20070 |
US $4.80 |
||
|
57476C
|
57476C
57476-20070 Plate, Front Floor Crossmember, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57476-20070 |
US $4.80 |
||
|
57601
|
57601
57601-20910 Member Sub-Assy, Rear Floor Side, Rh[04.2010 - 06.2016] ZRT265..CBU |
57601-20910 |
US $283.92 |
||
|
57602
|
57602
57602-20913 Member Sub-Assy, Rear Floor Side, Lh[04.2010 - 06.2016] ZRT265..CBU |
57602-20913 |
US $304.30 |
||
|
57605B
|
57605B
57605-21040 Member Sub-Assy, Rear Floor Cross, No.1[04.2010 - 06.2016] ZRT265..CBU |
57605-21040 |
US $225.68 |
||
|
57606C
|
57606C
57606-20250 Member Sub-Assy, Rear Floor Cross, No.2[04.2010 - 06.2016] ZRT265..CBU |
57606-20250 |
US $135.41 |
||
|
57615A
|
57615A
57615-32916 Member, Rear Floor Side, Rear Rh[04.2010 - 06.2016] ZRT265..CBU |
57615-32916 |
US $122.30 |
||
|
57616A
|
57616A
57616-32924 Member, Rear Floor Side, Rear Lh[04.2010 - 06.2016] ZRT265..CBU |
57616-32924 |
US $94.64 |
||
|
57635A
|
57635A
57635-63010 Reinforcement, Rear Floor Side Member, Rear Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57635-63010 |
US $6.84 |
||
|
57636A
|
57636A
57636-63010 Reinforcement, Rear Floor Side Member, Rear Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57636-63010 |
US $6.84 |
||
|
57663E
|
57663E
57663-63010 Member, Rear Floor Cross, Center[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
57663-63010 |
US $74.26 |
||
|
91645C1232
|
91645C1232
91645-C1232 New Genuine Part |
91645-C1232 |
US $2.87 |
||
|
91671A0818
|
91671A0818
91671-A0818 New Genuine Part |
91671-A0818 |
US $0.96 |
||
|
5196812170
|
5196812170
51968-12170 Hook, Transport, Rear Lh |
51968-12170 |
US $23.06 |
||
|
9010510376
|
9010510376
90105-10376 Bolt(For Transaxle & Engine Setting) |
90105-10376 |
US $1.97 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.61 |
