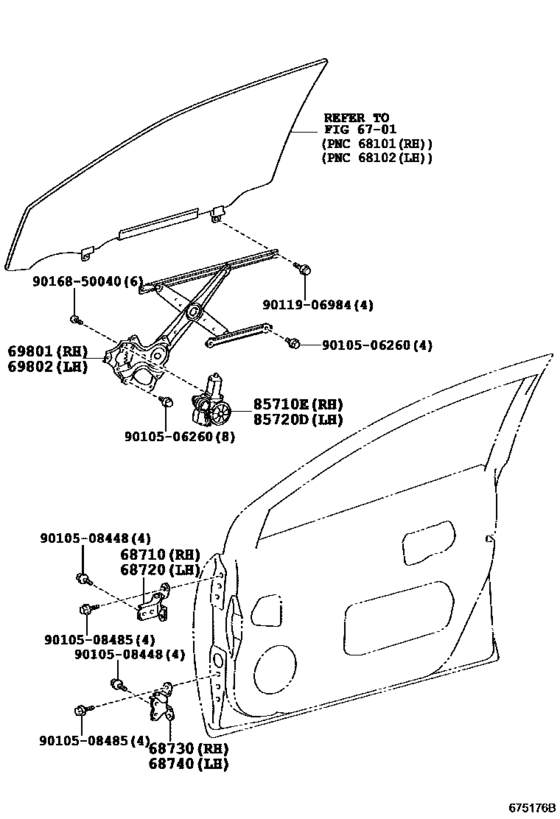

Front Door Window Regulator & Hinge ([05.2007 - ] (0705- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
68710-12151 |
from US $31.86 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
68720-12151 |
from US $31.79 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
68730-12120 |
from US $34.94 |
||
|
68740
|
68740
68740-12120 Hinge Assy, Front Door, Lower Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
68740-12120 |
from US $35.31 |
||
|
69801
|
69801
69801-20310 Regulator Sub-Assy, Front Door Window, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
69801-20310 |
US $93.48 |
||
|
69802
|
69802
69802-20330 Regulator Sub-Assy, Front Door Window, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
69802-20330 |
US $93.48 |
||
|
85710E
|
85710E
85710-12490 Motor Assy, Power Window Regulator, Rh[02.2013 - 06.2016] NZT260,ZRT26#..CBU |
85710-12490 |
from US $302.97 |
||
|
85710E
|
85710E
85710-30400 Motor Assy, Power Window Regulator, Rh[04.2010 - 08.2010] NZT260,ZRT26#..CBU |
85710-30400 |
US $281.01 |
||
| replacement | |||||
|
85710E
|
85710E
85710-12490 Motor Assy, Power Window Regulator, Rh[04.2010 - 08.2010] NZT260,ZRT26#..CBU |
85710-12490 |
from US $302.97 |
||
|
85710E
|
85710E
85710-60310 Motor Assy, Power Window Regulator, Rh[06.2016 -] NZT260,ZRT26#..CBU |
85710-60310 |
US $358.80 |
||
|
85720D
|
85720D
85720-12490 Motor Assy, Power Window Regulator, Lh[02.2013 - 06.2016] NZT260,ZRT26#..CBU |
85720-12490 |
from US $290.55 |
||
|
85720D
|
85720D
85720-30340 Motor Assy, Power Window Regulator, Lh[04.2010 - 08.2010] NZT260,ZRT26#..CBU |
85720-30340 |
US $310.13 |
||
| replacement | |||||
|
85720D
|
85720D
85720-12490 Motor Assy, Power Window Regulator, Lh[04.2010 - 08.2010] NZT260,ZRT26#..CBU |
85720-12490 |
from US $290.55 |
||
|
85720D
|
85720D
85720-60310 Motor Assy, Power Window Regulator, Lh[06.2016 -] NZT260,ZRT26#..CBU |
85720-60310 |
US $358.80 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.76 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.72 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
