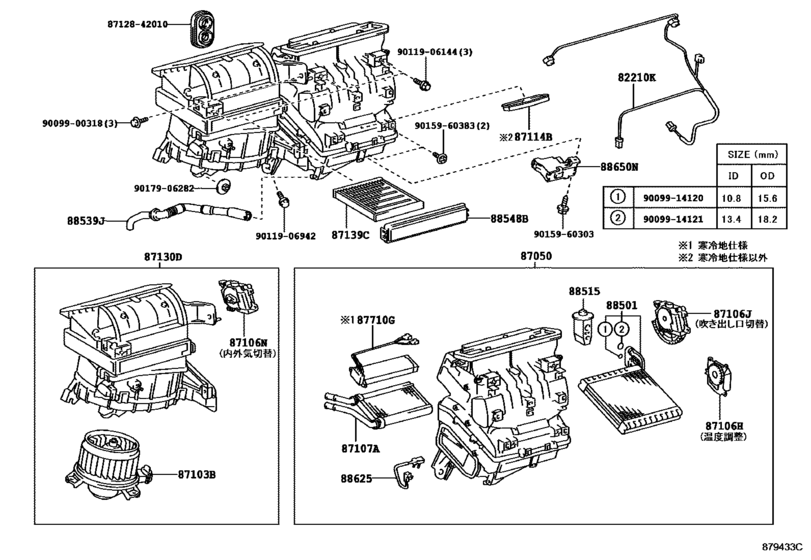

Heating & Air Conditioning - Cooler Unit ([05.2007 - ] (0705- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-12020
Harness Assy, Air Conditioner
[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
82212-12020 |
— | ||
|
87050
|
87050
87050-12351 Radiator Assy, Air Conditioner[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
87050-12351 |
US $835.74 |
||
|
87050
|
87050
87050-12361 Radiator Assy, Air Conditioner[04.2010 - 06.2016] NZT260,ZRT26#..CBU 寒冷地仕様 |
87050-12361 |
US $1,046.86 |
||
|
87103B
|
87103B
87103-12060 Motor Sub-Assy, Blower W/fan[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
87103-12060 |
US $256.84 |
||
|
87106H
|
87106H
87106-12170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[04.2010 - 10.2014] NZT260,ZRT26#..CBU |
87106-12170 |
US $126.59 |
||
|
87106H
|
87106H
87106-47170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[11.2014 - 06.2016] NZT260,ZRT26#..CBU |
87106-47170 |
from US $94.35 |
||
|
87106J
|
87106J
87106-42100 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
87106-42100 |
from US $89.11 |
||
|
87106N
|
87106N
87106-42120 Servo Sub-Assy, Damper, No.1[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
87106-42120 |
US $99.59 |
||
|
87107A
|
87107A
87107-42170 Unit Sub-Assy, Heater Radiator[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
87107-42170 |
US $394.17 |
||
|
87114B
|
87114B
87114-12080
Cover, Heater
[04.2010 - 06.2016] NZT260,ZRT26#..CBU; NZT260,ZRT26#..CBU 寒冷地仕様 |
87114-12080 |
— | ||
|
87130D
|
87130D
87130-12531 Blower Assy[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
87130-12531 |
US $291.78 |
||
|
87130D
|
87130D
87130-12541
Blower Assy
[04.2010 - 06.2016] NZT260,ZRT26#..CBU 寒冷地仕様 |
87130-12541 |
— | ||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[04.2010 - 12.2012] NZT260,ZRT26#..CBU 花粉フィルタ |
87139-30040 |
from US $33.60 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[04.2010 - 12.2012] NZT260,ZRT26#..CBU 花粉フィルタ |
87139-YZZ45 |
US $121.58 |
||
|
87139C
|
87139C
87139-50060
Filter, Clean Air (Charcoal)
[04.2010 - 04.2012] NZT260,ZRT26#..CBU 脱臭フィルタ |
87139-50060 |
— | ||
| replacement | |||||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[04.2010 - 04.2012] NZT260,ZRT26#..CBU 脱臭フィルタ |
87139-50100 |
from US $67.20 |
||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[05.2012 - 06.2016] NZT260,ZRT26#..CBU ＊ＤＰＦ |
87139-50100 |
from US $67.20 |
||
|
87139C
|
87139C
87139-52040 Filter, Clean Air[12.2012 - 06.2016] NZT260,ZRT26#..CBU 花粉フィルタ |
87139-52040 |
from US $33.60 |
||
|
87710G
|
87710G
87710-12010
Quick Heater Assy
[04.2010 - 06.2016] NZT260,ZRT26#..CBU 寒冷地仕様 |
87710-12010 |
— | ||
|
88501
|
88501
88501-72020 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [04.2010 - 06.2016] NZT260,ZRT26#..CBU |
88501-72020 |
US $448.91 |
||
|
88515
|
88515
88515-12100 Valve, Cooler Expansion[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
88515-12100 |
from US $106.41 |
||
|
88539J
|
88539J
88539-12190
Hose, Cooler Unit Drain, No.1
[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
88539-12190 |
— | ||
|
88548B
|
88548B
88548-42010
Case, Air Filter
[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
88548-42010 |
— | ||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [04.2010 - 06.2016] NZT260,ZRT26#..CBU |
88620-02110 |
US $10.20 |
||
|
88650N
|
88650N
88650-20A90
Amplifier Assy, Air Conditioner
[09.2014 - 06.2016] ZRT261..CBU; ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
88650-20A90 |
— | ||
|
88650N
|
88650N
88650-20B40
Amplifier Assy, Air Conditioner
[04.2010 - 12.2012] ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ＆寒冷地仕様; ZRT260,265..ALN..CBU Ｓパッケージ＆寒冷地仕様; ZRT260,265..PRM..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ＆寒冷地仕様; ZRT261..CBU 寒冷地仕様 |
88650-20B40 |
— | ||
|
88650N
|
88650N
88650-20B50
Amplifier Assy, Air Conditioner
[04.2010 - 12.2012] ZRT261..CBU; ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; ZRT260,265..ALN..CBU Ｓパッケージ; ZRT260,265..PRM..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
88650-20B50 |
— | ||
|
88650N
|
88650N
88650-20B60
Amplifier Assy, Air Conditioner
[04.2010 - 08.2011] ZRT260,265..CBU 寒冷地仕様 |
88650-20B60 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-20B61
Amplifier Assy, Air Conditioner
[04.2010 - 08.2011] ZRT260,265..CBU 寒冷地仕様 |
88650-20B61 |
— | ||
|
88650N
|
88650N
88650-20B61
Amplifier Assy, Air Conditioner
[09.2011 - 12.2012] ZRT260,265..CBU 寒冷地仕様 |
88650-20B61 |
— | ||
|
88650N
|
88650N
88650-20B70
Amplifier Assy, Air Conditioner
[04.2010 - 08.2011] ZRT260,265..CBU |
88650-20B70 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-20B71
Amplifier Assy, Air Conditioner
[04.2010 - 08.2011] ZRT260,265..CBU |
88650-20B71 |
— | ||
|
88650N
|
88650N
88650-20B71
Amplifier Assy, Air Conditioner
[09.2011 - 12.2012] ZRT260,265..CBU |
88650-20B71 |
— | ||
|
88650N
|
88650N
88650-20B80
Amplifier Assy, Air Conditioner
[09.2014 - 06.2016] ZRT260,265..CBU |
88650-20B80 |
— | ||
|
88650N
|
88650N
88650-20C40
Amplifier Assy, Air Conditioner
[12.2012 - 09.2014] ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ＆寒冷地仕様; ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ＆寒冷地仕様; ZRT261..CBU 寒冷地仕様 |
88650-20C40 |
— | ||
|
88650N
|
88650N
88650-20C50
Amplifier Assy, Air Conditioner
[12.2012 - 09.2014] ZRT261..CBU; ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
88650-20C50 |
— | ||
|
88650N
|
88650N
88650-20C60
Amplifier Assy, Air Conditioner
[12.2012 - 09.2014] ZRT260,265..CBU 寒冷地仕様 |
88650-20C60 |
— | ||
|
88650N
|
88650N
88650-20C70
Amplifier Assy, Air Conditioner
[12.2012 - 09.2014] ZRT260,265..CBU |
88650-20C70 |
— | ||
|
8712842010
|
8712842010
87128-42010
Grommet (For Heater Pipe)
|
87128-42010 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.66 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
