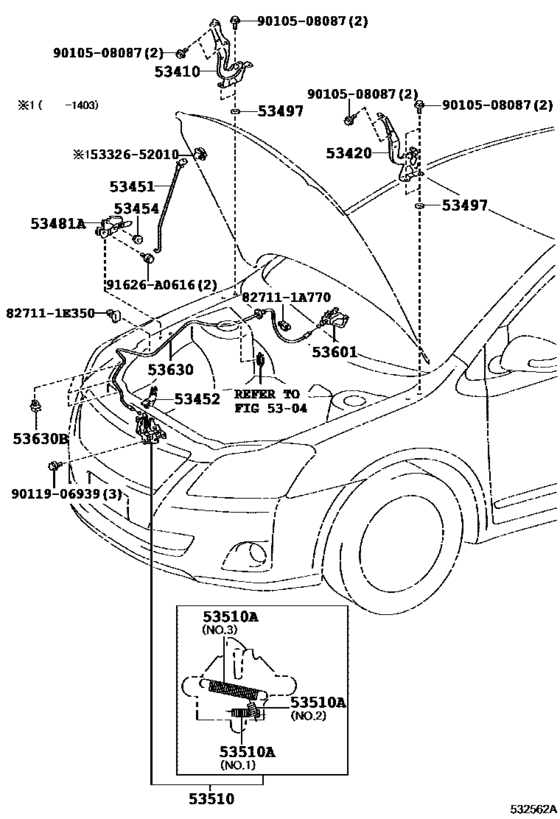

Hood Lock & Hinge ([05.2007 - ] (0705- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-20360 Hinge Assy, Hood, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53410-20360 |
US $35.28 |
||
|
53420
|
53420
53420-20310 Hinge Assy, Hood, Lh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53420-20310 |
US $35.28 |
||
|
53451
|
53451
53440-20070 Rod, Hood Support[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53440-20070 |
US $17.88 |
||
|
53452
|
53452
53452-20020 Holder, Hood Stay[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53452-20020 |
from US $15.21 |
||
|
53454
|
53454
53454-52050 Clip, Hood Support Rod[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53454-52050 |
US $3.58 |
||
|
53481A
|
53481A
53481-20010 Bracket, Hood Support, Rh[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53481-20010 |
US $15.05 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[04.2010 - 06.2016] NZT260,ZRT26#..CBU 厚さ＝２．０ |
53497-20070 |
US $2.51 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[04.2010 - 06.2016] NZT260,ZRT26#..CBU 厚さ＝０．５ |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-20630 Lock Assy, Hood[04.2010 - 06.2016] ZRT26#..PRM..CBU |
53510-20630 |
from US $51.42 |
||
|
53510
|
53510
53510-20700 Lock Assy, Hood[06.2016 -] ZRT26#..CBU |
53510-20700 |
US $44.86 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[04.2010 - 06.2016] NZT260,ZRT26#..CBU 線径＝０．９，コイル巻数＝２１,ＮＯ．１：イラスト参照 |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[04.2010 - 06.2016] NZT260,ZRT26#..CBU 線径＝１．２，コイル巻数＝８．５,ＮＯ．２：イラスト参照 |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-16077 Spring, Tension(For Hood Lock)[04.2010 - 06.2016] NZT260,ZRT26#..CBU 線径＝１．６，コイル巻数＝１２,ＮＯ．３：イラスト参照 |
90506-16077 |
US $2.15 |
||
|
53601
|
53601
53601-52010-A0 Lever Sub-Assy, Hood Lock Control[12.2012 - 06.2016] NZT260,ZRT26#..CBU IVORY,TRIM4# |
53601-52010-A0 |
from US $2.55 |
||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[04.2010 - 12.2012] NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
53601-52010-B3 |
from US $26.04 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[06.2016 - 12.2016] NZT260,ZRT26#..CBU BLACK,TRIM0#,2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[06.2016 - 12.2016] NZT260,ZRT26#..CBU BLACK,TRIM0#,2# |
53601-52010-C1 |
from US $23.69 |
||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[12.2016 -] NZT260,ZRT26#..CBU BLACK,TRIM0#,2# |
53601-52010-C1 |
from US $23.69 |
||
|
53601
|
53601
53601-52010-E4 Lever Sub-Assy, Hood Lock Control[04.2010 - 12.2012] NZT260,ZRT26#..CBU GREGE,TRIM4# |
53601-52010-E4 |
US $20.27 |
||
|
53601
|
53601
53601-52010-L0 Lever Sub-Assy, Hood Lock Control[12.2012 - 06.2016] NZT260,ZRT26#..CBU ORCHID BROWN,TRIM1# |
53601-52010-L0 |
US $20.82 |
||
|
53630
|
53630
53630-20630 Cable Assy, Hood Lock Control[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
53630-20630 |
from US $15.81 |
||
|
53630B
|
53630B
90469-06005 Clamp(For Hood Lock Control Cable)[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
90469-06005 |
from US $1.33 |
||
|
91626A0616
|
91626A0616
91626-A0616 BOLT WWASHER |
91626-A0616 |
US $6.09 |
||
|
827111A770
|
827111A770
82711-1A770 Clamp, Wiring Harness |
82711-1A770 |
US $1.61 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.09 |
||
|
5332652010
|
5332652010
53326-52010 Clip, Hood Protector |
53326-52010 |
from US $2.05 |
||
|
9010508087
|
9010508087
90105-08087 New Genuine Part |
90105-08087 |
US $2.15 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.64 |
||
