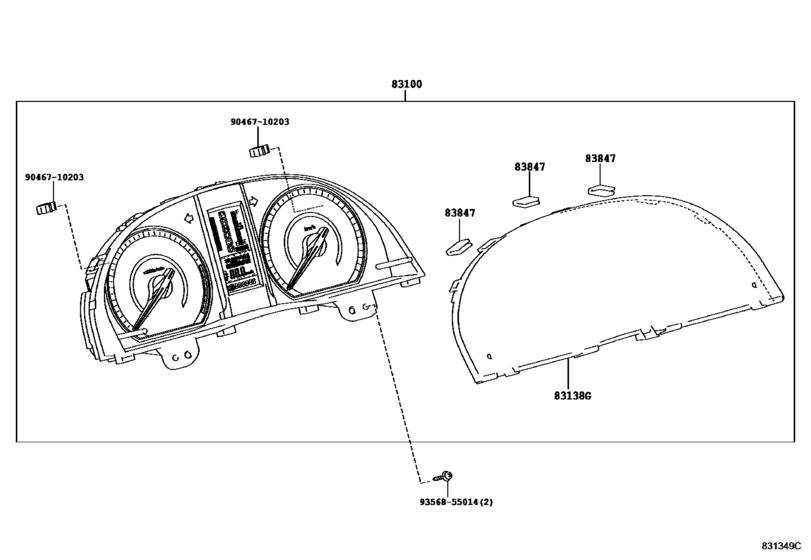

Meter ([05.2007 - ] (0705- )) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-20A91 Meter Assy, Combination[04.2010 - 12.2012] ZRT261..CBU; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; ZRT260,265..PRM..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
83800-20A91 |
US $902.72 |
||
|
83100
|
83100
83800-20B21 Meter Assy, Combination[04.2010 - 12.2012] NZT260,ZRT260,265..CBU |
83800-20B21 |
US $662.48 |
||
|
83100
|
83100
83800-20B22 Meter Assy, Combination[12.2012 - 09.2014] NZT260,ZRT260,265..CBU |
83800-20B22 |
US $551.82 |
||
|
83100
|
83100
83800-20B23 Meter Assy, Combination[09.2014 - 05.2015] NZT260,ZRT260,265..CBU |
83800-20B23 |
US $551.82 |
||
| replacement | |||||
|
83100
|
83100
83800-20B24 Meter Assy, Combination[09.2014 - 05.2015] NZT260,ZRT260,265..CBU |
83800-20B24 |
US $551.82 |
||
|
83100
|
83100
83800-20B24 Meter Assy, Combination[06.2015 - 06.2016] NZT260,ZRT260,265..CBU |
83800-20B24 |
US $551.82 |
||
|
83100
|
83100
83800-20B61 Meter Assy, Combination[09.2014 - 05.2015] ZRT261..CBU; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; NZT260,ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
83800-20B61 |
US $751.30 |
||
| replacement | |||||
|
83100
|
83100
83800-20B62 Meter Assy, Combination[09.2014 - 05.2015] ZRT261..CBU; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; NZT260,ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
83800-20B62 |
US $751.30 |
||
|
83100
|
83100
83800-20B62 Meter Assy, Combination[06.2015 - 06.2016] ZRT261..CBU; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; NZT260,ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
83800-20B62 |
US $751.30 |
||
|
83100
|
83100
83800-20B70 Meter Assy, Combination[12.2012 - 09.2014] ZRT261..CBU; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; NZT260,ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
83800-20B70 |
US $551.82 |
||
|
83100
|
83100
83800-20B80 Meter Assy, Combination[06.2016 -] NZT260,ZRT26#..CBU |
83800-20B80 |
US $1,036.67 |
||
|
83138G
|
83138G
83852-20A80 Glass, Combination Meter[04.2010 - 06.2016] ZRT261..CBU; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ; ZRT260,265..PRM..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ |
83852-20A80 |
US $23.41 |
||
|
83138G
|
83138G
83852-20B20 Glass, Combination Meter[04.2010 - 06.2016] NZT260,ZRT260,265..CBU |
83852-20B20 |
US $22.54 |
||
|
83138G
|
83138G
83852-20B80 Glass, Combination Meter[06.2016 -] NZT260,ZRT26#..CBU |
83852-20B80 |
US $29.85 |
||
|
83847
|
83847
83847-20A80 Cushion, Combination Speedmeter, No.1[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
83847-20A80 |
US $2.48 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
