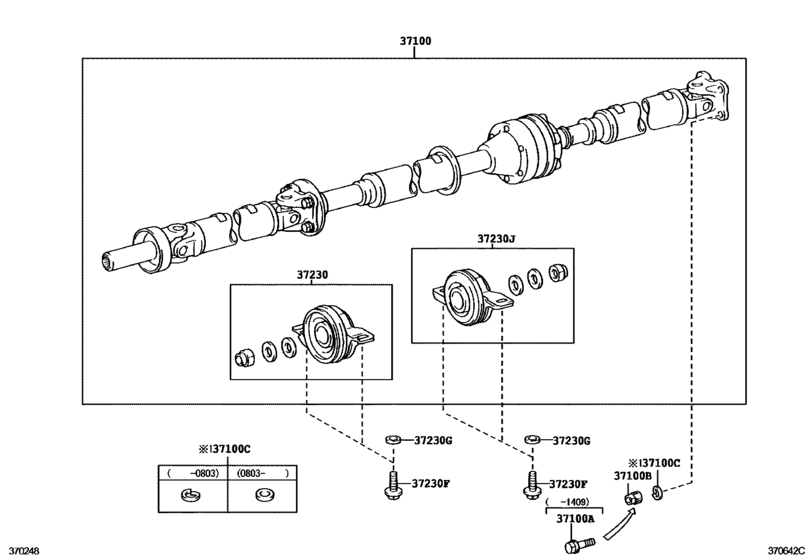

Propeller Shaft & Universal Joint ([05.2007 - ] (0705- )ZRT265) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-20420 Shaft Assy, Propeller W/center Bearing[04.2010 - 06.2016] ZRT265..CBU |
37100-20420 |
US $1,250.70 |
||
|
37100A
|
37100A
90105-10423 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.2010 - 09.2014] ZRT265..CBU |
90105-10423 |
US $2.06 |
||
|
37100B
|
37100B
90179-08268 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.2014 - 06.2016] ZRT265..CBU |
90179-08268 |
US $1.97 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[04.2010 - 06.2016] ZRT265..CBU |
90560-10102 |
US $1.25 |
||
|
37230
|
37230
37230-39035 Bearing Assy, Center Support, No.1[04.2010 - 06.2016] ZRT265..CBU |
37230-39035 |
US $176 |
||
|
37230F
|
37230F
90119-10444 Bolt, No.1 (For Center Support Bearing)[04.2010 - 06.2016] ZRT265..CBU |
90119-10444 |
US $2.87 |
||
|
37230G
|
37230G
90201-10081 Washer, No.1 (For Center Support Bearing)[04.2010 - 06.2016] ZRT265..CBU 厚さ＝４．５ |
90201-10081 |
US $3.40 |
||
|
37230G
|
37230G
90201-10083 Washer, No.1 (For Center Support Bearing)[04.2010 - 06.2016] ZRT265..CBU 厚さ＝６．５ |
90201-10083 |
US $4.30 |
||
|
37230G
|
37230G
90201-10084 Washer, No.1 (For Center Support Bearing)[04.2010 - 06.2016] ZRT265..CBU 厚さ＝９．０ |
90201-10084 |
US $4.02 |
||
|
37230G
|
37230G
90201-10095 Washer, No.1 (For Center Support Bearing)[04.2010 - 06.2016] ZRT265..CBU 厚さ＝３．２ |
90201-10095 |
US $3.23 |
||
|
37230J
|
37230J
37230-39045 Bearing Assy, Center Support, No.2[04.2010 - 06.2016] ZRT265..CBU |
37230-39045 |
US $136.28 |
