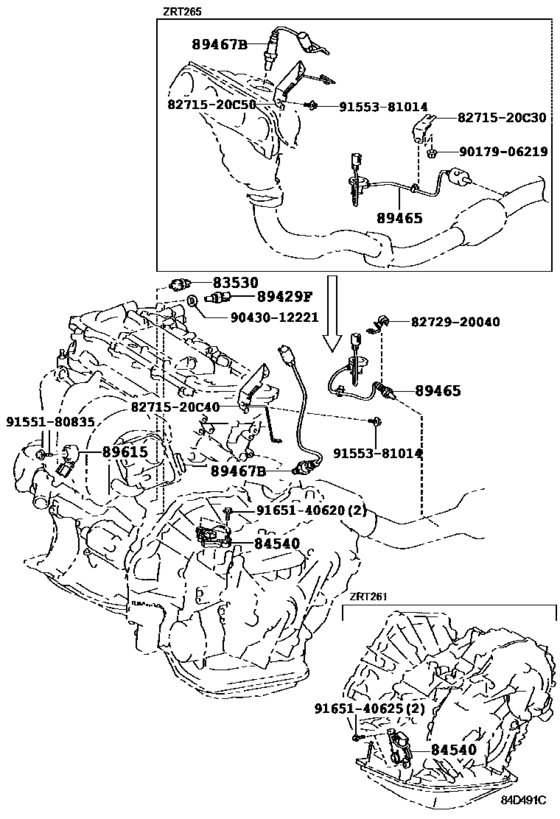

Switch & Relay & Computer ([12.2012 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1212- )ZRT26#) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZRT26#..CBU ＹＡＺＡＫＩ |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZRT26#..CBU ＹＡＺＡＫＩ |
83530-12060 |
from US $24.61 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2010 - 10.2013] ZRT26#..CBU ＹＡＺＡＫＩ |
83530-60020 |
from US $24.16 |
||
|
84540
|
84540
84540-52070 Switch Assy, Neutral Start[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
84540-52070 |
from US $114.06 |
||
|
89429F
|
89429F
89429-12010 Sensor, Temperature[12.2012 - 06.2016] ZRT26#..CBU |
89429-12010 |
from US $56.78 |
||
|
89465
|
89465
89465-20A10 Sensor, Oxygen[04.2010 - 12.2012] ZRT265..CBU |
89465-20A10 |
US $182.40 |
||
|
89465
|
89465
89465-20A40 Sensor, Oxygen[12.2012 - 06.2016] ZRT265..CBU |
89465-20A40 |
US $85.90 |
||
|
89467B
|
89467B
89467-68020 Sensor, OxygenAIR FUEL RATIO [04.2010 - 12.2012] ZRT265..CBU |
89467-68020 |
US $254.40 |
||
|
89467B
|
89467B
89467-68030 Sensor, Oxygen[12.2012 - 06.2016] ZRT265..CBU |
89467-68030 |
US $132.50 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[04.2010 - 06.2016] NZT260,ZRT26#..CBU |
89615-20090 |
from US $39.82 |
||
|
8271520C30
|
8271520C30
82715-20C30
Bracket,wiring Harness Clamp
|
82715-20C30 |
— | ||
|
8271520C40
|
8271520C40
82715-20C40
Bracket,wiring Harness Clamp
|
82715-20C40 |
— | ||
|
8271520C50
|
8271520C50
82715-20C50
Bracket,wiring Harness Clamp
|
82715-20C50 |
— | ||
|
8272920040
|
8272920040
82729-20040 New Genuine Part |
82729-20040 |
US $2.91 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
US $1.25 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
