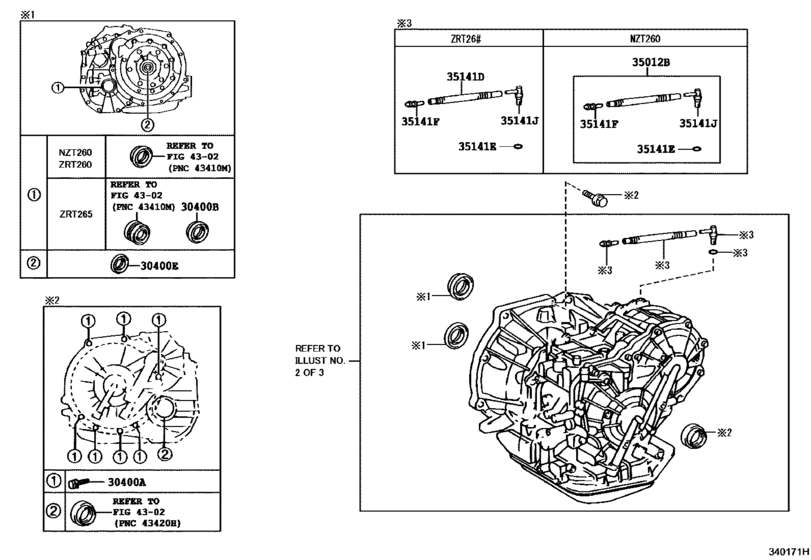

Transaxle Assy(Cvt) ([12.2012 - ] K310,K311,K311F (0705-1212)NZT260,ZRT260,265 ; (1212- )ZRT260 ,265) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- PREMIO
- From
- 04.2010
- Vehicle Model
- Premio
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400A
|
30400A
91612-61045 Bolt(For Transaxle & Engine Setting)[04.2010 - 06.2016] NZT260,ZRT260,265..CBU |
91612-61045 |
from US $1.15 |
||
|
30400B
|
30400B
90311-49002 Seal, Type T Oil, No.1(For Cvt)[04.2010 - 06.2016] ZRT265..CBU |
90311-49002 |
from US $5.56 |
||
|
30400E
|
30400E
90311-45025
Seal, Type T Oil(For Cvt Oil Pump)
[04.2010 - 12.2011] NZT260,ZRT26#..CBU |
90311-45025 |
— | ||
| replacement | |||||
|
30400E
|
30400E
90311-45027 Seal, Type T Oil(For Cvt Oil Pump)[04.2010 - 12.2011] NZT260,ZRT26#..CBU |
90311-45027 |
from US $8.42 |
||
|
30400E
|
30400E
90311-45027 Seal, Type T Oil(For Cvt Oil Pump)[12.2011 - 06.2016] NZT260,ZRT26#..CBU |
90311-45027 |
from US $8.42 |
||
|
35141D
|
35141D
35121-12090 Hose(For Breather Plug)[04.2010 - 04.2012] ZRT260,265..CBU |
35121-12090 |
US $12.67 |
||
|
35141D
|
35141D
35121-12100 Hose(For Breather Plug)[04.2012 - 07.2012] ZRT260,265..CBU |
35121-12100 |
US $7.86 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[04.2010 - 04.2016] NZT260,ZRT260,265..CBU |
90301-06005 |
from US $2.30 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[05.2016 - 06.2016] NZT260,ZRT260,265..CBU |
90301-06021 |
US $2.51 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[04.2010 - 04.2012] ZRT260,265..CBU |
90930-03149 |
from US $3.94 |
||
|
35141F
|
35141F
90930-03216 Plug, Breather, No.1(Cvt)[04.2012 - 06.2016] ZRT260,265..CBU |
90930-03216 |
US $4.66 |
||
|
35141J
|
35141J
90930-03191 Plug, Breather, No.1(Cvt)[04.2010 - 06.2016] NZT260,ZRT260,265..CBU |
90930-03191 |
US $4.66 |
||
