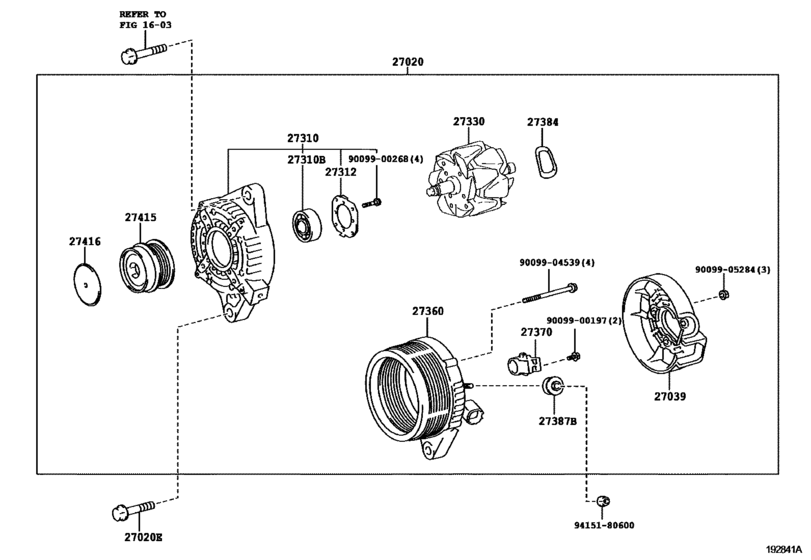

Alternator ([05.2007 - 12.2012] 12V 100A (0705-1212)2ZR#,3ZRFAE) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- ALLION
- From
- 04.2010
- Vehicle Model
- Alion
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-37071 Alternator Assy[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU １２Ｖ １００Ａ |
27060-37071 |
US $1,514.24 |
||
|
27020
|
27020
27060-37160 Alternator Assy[12.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU １２Ｖ １００Ａ |
27060-37160 |
US $1,138.59 |
||
|
27020E
|
27020E
90105-10307 Bolt(For Alternator)[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90105-10307 |
US $18.24 |
||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27039-31390 |
— | ||
|
27039
|
27039
27039-47330
Cover, Alternator Rear End
[12.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27039-47330 |
— | ||
|
27310
|
27310
27310-37100
Frame Assy, Drive End, Alternator
[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27310-37100 |
— | ||
|
27310
|
27310
27310-37130
Frame Assy, Drive End, Alternator
[12.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27310-37130 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27330-30070 |
— | ||
|
27330
|
27330
27330-47330
Rotor Assy, Alternator
[12.2012 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27330-47330 |
— | ||
|
27360
|
27360
27360-37030
Coil Assy, Alternator
[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27360-37030 |
— | ||
|
27360
|
27360
27360-37190
Coil Assy, Alternator
[12.2012 - 08.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27360-37190 |
— | ||
| replacement | |||||
|
27360
|
27360
27360-37191
Coil Assy, Alternator
[12.2012 - 08.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27360-37191 |
— | ||
|
27360
|
27360
27360-37191
Coil Assy, Alternator
[08.2013 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27360-37191 |
— | ||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27370-31220 |
from US $22.54 |
||
|
27384
|
27384
27384-38130
Washer
[12.2012 - 08.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27384-38130 |
— | ||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[04.2010 - 12.2012] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[04.2010 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0T011
Pulley, Alternator W/clutch
[04.2010 - 07.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27415-0T011 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0T060 Pulley, Alternator W/clutch[04.2010 - 07.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27415-0T060 |
US $91.76 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[04.2010 - 07.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27416-0W050 |
from US $4.08 |
||
|
27415
|
27415
27415-0T060 Pulley, Alternator W/clutch[08.2013 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27415-0T060 |
US $91.76 |
||
|
27416
|
27416
27416-0W020 Cap, Alternator Pulley[04.2010 - 07.2013] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27416-0W020 |
US $5.44 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[08.2013 - 06.2016] 2ZRFAE,3ZRFAE..ZRT26#..CBU |
27416-0W050 |
from US $4.08 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
