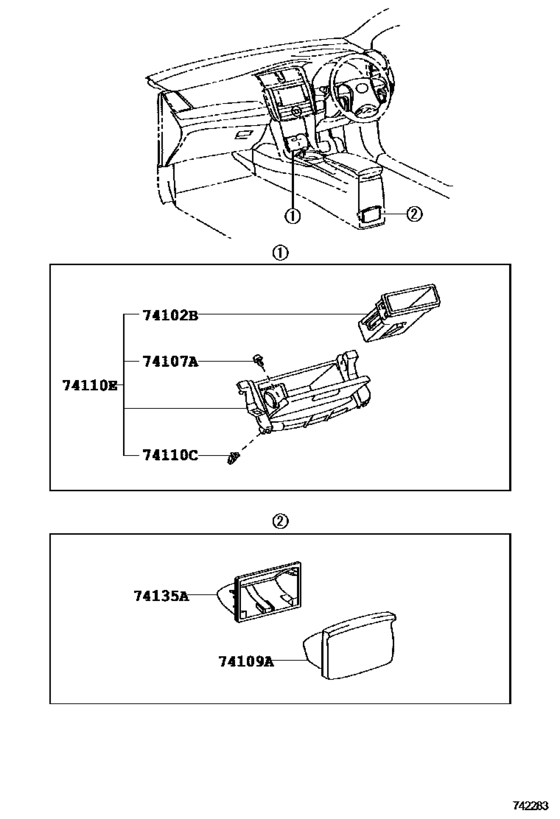

Ash Receptacle ([05.2007 - 06.2016] (0705-1606)) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- ALLION
- From
- 04.2010
- Vehicle Model
- Alion
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74102B
|
74102B
74102-12410 Box Sub-Assy, Front Ash Receptacle[04.2010 - 12.2012] ZRT260,265..ALN..CBU Ｓパッケージ |
74102-12410 |
from US $24.17 |
||
|
74107A
|
74107A
58959-60060 Cushion, Instrument Panel[04.2010 - 12.2012] ZRT260,265..ALN..CBU Ｓパッケージ |
58959-60060 |
from US $1.44 |
||
|
74109A
|
74109A
74109-42020-B1 Box Sub-Assy, Ash Receptacle[04.2010 - 09.2011] NZT260,ZRT26#..CBU DK.GRAY,TRIM1# |
74109-42020-B1 |
US $32.03 |
||
|
74109A
|
74109A
74109-42020-E1 Box Sub-Assy, Ash Receptacle[04.2010 - 09.2011] NZT260,ZRT26#..CBU GREGE,TRIM4# |
74109-42020-E1 |
US $32.03 |
||
|
74110C
|
74110C
90467-10203 Direct[04.2010 - 12.2012] ZRT260,265..ALN..CBU Ｓパッケージ |
90467-10203 |
from US $0.64 |
||
|
74110E
|
74110E
74110-20170-C0 Receptacle Assy, Front Ash[04.2010 - 12.2012] ZRT261..CBU DK.RED,TRIM10; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ,DK.RED,TRIM10; ZRT260,265..ALN..CBU Ｓパッケージ,DK.RED,TRIM10; ZRT260,265..PRM..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ,DK.RED,TRIM10 |
74110-20170-C0 |
US $81.54 |
||
|
74110E
|
74110E
74110-20170-E3 Receptacle Assy, Front Ash[04.2010 - 12.2012] ZRT261..CBU DARK BROWN,TRIM11,40,41; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ,DARK BROWN,TRIM11,4#; ZRT260,265..ALN..CBU Ｓパッケージ,DARK BROWN,TRIM11,4#; ZRT260,265..PRM..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ,DARK BROWN,TRIM11,4# |
74110-20170-E3 |
US $81.54 |
||
|
74110E
|
74110E
74110-20180-E0 Receptacle Assy, Front Ash[12.2012 - 06.2016] ZRT261..PRM..CBU BROWN,TRIM41; ZRT261..ALN..CBU BROWN,TRIM4#; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ,BROWN,TRIM4#; NZT260,ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ,BROWN,TRIM4# |
74110-20180-E0 |
US $67.12 |
||
|
74110E
|
74110E
74110-20180-E3 Receptacle Assy, Front Ash[12.2012 - 06.2016] ZRT261..CBU DK.BROWN,TRIM1#; NZT260,ZRT260,265..CBU Ｌパッケージ ＯＲ Ｇパッケージ,DK.BROWN,TRIM1#; NZT260,ZRT260,265..CBU ＥＸパッケージ ＯＲ Ｇ−ｐｌｕｓパッケージ,DK.BROWN,TRIM1# |
74110-20180-E3 |
US $67.12 |
||
|
74135A
|
74135A
74135-20090
Retainer Sub-Assy, Rear Ash Receptacle
[04.2010 - 09.2011] NZT260,ZRT26#..CBU |
74135-20090 |
— |
