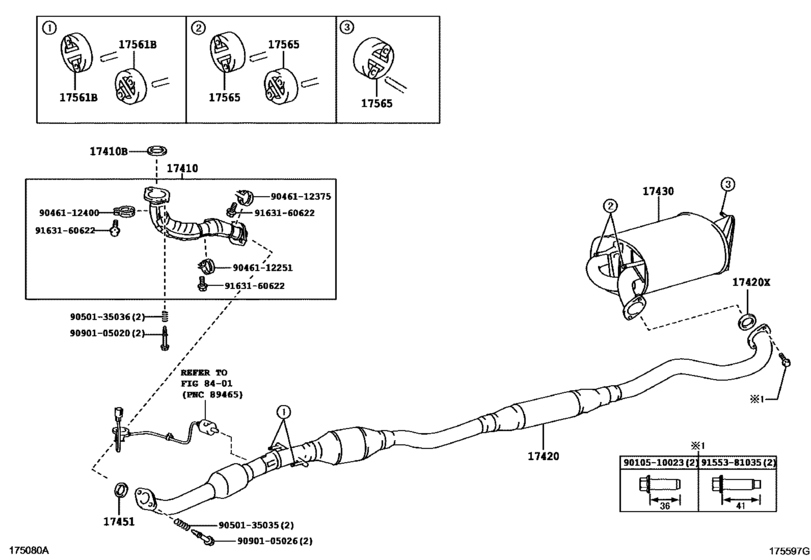

Exhaust Pipe ([05.2007 - ] (0705- )2ZR#..ZRT265) Diagram Toyota PREMIO/ ALLION
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- ZRT265
- ENGINE
- 2ZRFAE
- Model
- ALLION
- From
- 04.2010
- Vehicle Model
- Alion
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-37180 Pipe Assy, Exhaust, Front[04.2010 - 06.2016] 2ZRFAE..ZRT265 |
17410-37180 |
US $178.56 |
||
|
17410B
|
17410B
17451-21070 Gasket, Exhaust Pipe[04.2010 - 06.2016] 1NZFE,2ZRFAE..NZT260,ZRT265..CBU |
17451-21070 |
from US $19.87 |
||
|
17420
|
17420
17420-37071 Pipe Assy, Exhaust, Center[04.2010 - 03.2012] 2ZRFAE..ZRT265 |
17420-37071 |
US $1,543.36 |
||
| replacement | |||||
|
17420
|
17420
17420-37072 Pipe Assy, Exhaust, Center[04.2010 - 03.2012] 2ZRFAE..ZRT265 |
17420-37072 |
US $1,890.40 |
||
|
17420
|
17420
17420-37072 Pipe Assy, Exhaust, Center[04.2012 - 12.2012] 2ZRFAE..ZRT265 |
17420-37072 |
US $1,890.40 |
||
|
17420
|
17420
17420-37190 Pipe Assy, Exhaust, Center[12.2012 - 06.2016] 2ZRFAE..ZRT265 |
17420-37190 |
US $1,550.40 |
||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[04.2010 - 06.2016] 2ZRFAE..ZRT265 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[04.2010 - 06.2016] 2ZRFAE..ZRT265 |
90080-43028 |
US $19.44 |
||
|
17430
|
17430
17430-37270 Pipe Assy, Exhaust, Tail[04.2010 - 03.2012] 2ZRFAE..ZRT265 |
17430-37270 |
US $384.38 |
||
| replacement | |||||
|
17430
|
17430
17430-37271 Pipe Assy, Exhaust, Tail[04.2010 - 03.2012] 2ZRFAE..ZRT265 |
17430-37271 |
US $400.40 |
||
|
17430
|
17430
17430-37271 Pipe Assy, Exhaust, Tail[04.2012 - 06.2016] 2ZRFAE..ZRT265 |
17430-37271 |
US $400.40 |
||
|
17451
|
17451
17451-21080 Gasket, Exhaust Pipe[04.2010 - 06.2016] 2ZRFAE..ZRT265 |
17451-21080 |
US $27.66 |
||
|
17561B
|
17561B
17565-31040 Support, Exhaust Pipe, No.1[04.2010 - 06.2016] 2ZRFAE..ZRT265 |
17565-31040 |
from US $9.12 |
||
|
17565
|
17565
17565-22040 Support, Exhaust Pipe, No.1[04.2010 - 06.2016] 2ZRFAE..ZRT265 |
17565-22040 |
from US $9.95 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9046112251
|
9046112251
90461-12251 Clamp |
90461-12251 |
US $5.76 |
||
|
9046112375
|
9046112375
90461-12375 Clamp, Exhaust Pipe |
90461-12375 |
US $10.24 |
||
|
9046112400
|
9046112400
90461-12400 Clamp, Exhaust Pipe |
90461-12400 |
US $5.76 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
US $3.20 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $4.96 |
||
|
9155381035
|
9155381035
91553-81035 BOLT, FLANGE |
91553-81035 |
from US $1.31 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
