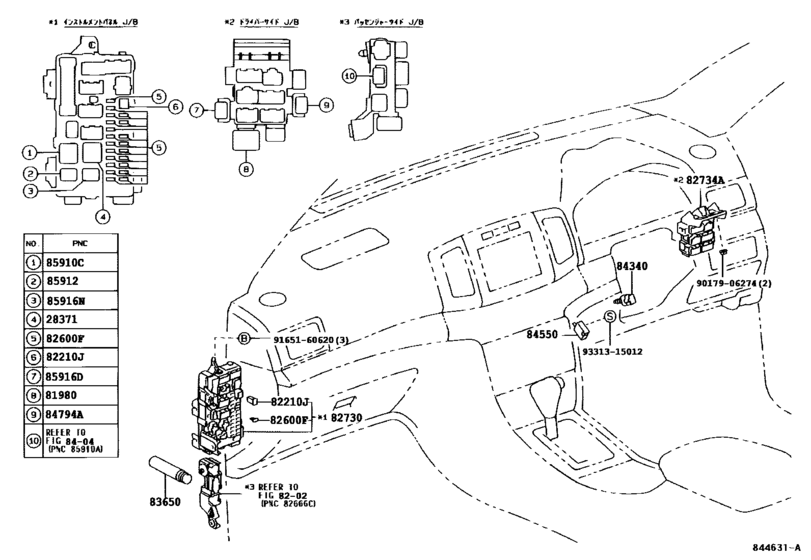

Switch & Relay & Computer ([12.2001 - 12.2004] ｶｳﾙ (0112-0412)) Diagram Toyota PREMIO/ ALLION
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- ZZT245
- ENGINE
- 1ZZFE
- Model
- ALLION
- From
- 12.2001
- To
- 05.2007
- Gear Shift Type
- 4FC
- Vehicle Model
- Alion
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02025 Relay[12.2001 - 12.2004] 1AZFSE,1NZFE,1ZZFE..AZT240,NZT240,ZZT24# |
90987-02025 |
from US $44.54 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[05.2007 -] 1AZFSE,1NZFE,1ZZFE..AZT240,NZT240,ZZT24# |
90987-02030 |
US $44.54 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
81980-50030 |
from US $52.79 |
||
|
82210J
|
82210J
90982-08254 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# １２０Ａ，オス端子 |
90982-08254 |
US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ３０Ａ，メス端子 |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ４０Ａ，メス端子 |
90982-08284 |
from US $9.44 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[12.2001 - 12.2004] AZT240,NZT240,ZZT24# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82730
|
82730
82730-20140 Block Assy, Instrument Panel Junction[12.2001 - 12.2004] ZZT245 |
82730-20140 |
US $598.42 |
||
|
82730
|
82730
82730-20150 Block Assy, Instrument Panel Junction[12.2004 -] ZZT245 |
82730-20150 |
US $764.40 |
||
|
82734A
|
82734A
82734-63010 Block, Center Junction[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
82734-63010 |
US $62.32 |
||
|
83650
|
83650
90986-01005
Fusee
[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90986-01005 |
— | ||
|
84340
|
84340
84340-19015 Switch Assy, Stop Lamp[12.2001 - 04.2004] NZT240,ZZT24# |
84340-19015 |
US $29.18 |
||
|
84340
|
84340
84340-69035 Switch Assy, Stop Lamp[05.2004 - 12.2004] NZT240,ZZT24# |
84340-69035 |
US $33.90 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
84550-30080 |
from US $18.39 |
||
|
84794A
|
84794A
90987-02022 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
84794A
|
84794A
90987-02027 Relay[12.2006 -] AZT240,NZT240,ZZT24# |
90987-02027 |
from US $44.54 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-04010 |
from US $42.71 |
||
|
85912
|
85912
90987-02022 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
85912
|
85912
90987-02027 Relay[12.2006 -] AZT240,NZT240,ZZT24# |
90987-02027 |
from US $44.54 |
||
|
85916D
|
85916D
90987-02022 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2006 -] AZT240,NZT240,ZZT24# |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02022 Relay, Starter Cut[12.2001 - 12.2004] AZT240,NZT240,ZZT24# |
90987-02022 |
from US $54 |
||
|
85916N
|
85916N
90987-02027 Relay[11.2006 -] AZT240,NZT240,ZZT24# |
90987-02027 |
from US $44.54 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
|
9331315012
|
9331315012
93313-15012 New Genuine Part |
93313-15012 |
US $1.05 |
