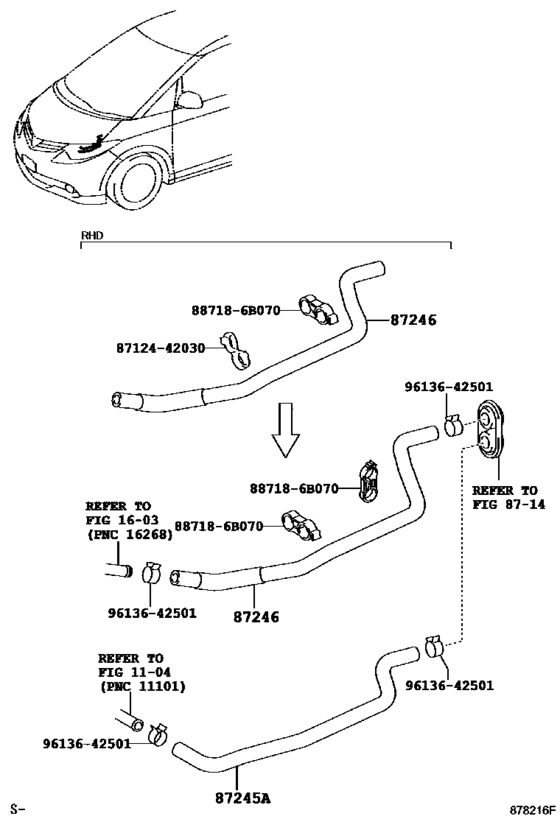

Heating & Air Conditioning - Water Piping ([01.2006 - ] FRONT,W/O(REAR HEATER) (0601- )ACR50) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- GL
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87209-28A10
Hose, Heater Water, Inlet A
[01.2006 - 12.2008] ACR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28A10 |
— | ||
| replacement | |||||
|
87245A
|
87245A
87209-28A11 Hose, Heater Water, Inlet A[01.2006 - 12.2008] ACR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28A11 |
US $83.54 |
||
|
87245A
|
87245A
87245-28B20
Hose, Heater Water, Inlet A
[01.2006 - 12.2008] ACR50..RHD |
87245-28B20 |
— | ||
|
87246
|
87246
87209-28870 Hose, Heater Water, OutletHEATER WATER, OUTLET [01.2006 - 12.2008] ACR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28870 |
US $55.47 |
||
| replacement | |||||
|
87246
|
87246
87209-28871
Hose, Heater Water, Outlet
[01.2006 - 12.2008] ACR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28871 |
— | ||
|
87246
|
87246
87245-28A90 Hose, Heater Water, OutletHEATER WATER, OUTLET [01.2006 - 12.2008] ACR50..RHD |
87245-28A90 |
US $21.99 |
||
|
887186B070
|
887186B070
88718-6B070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6B070 |
— | ||
|
8712442030
|
8712442030
87124-42030 Clamp, Heater |
87124-42030 |
from US $1.40 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.24 |
||
