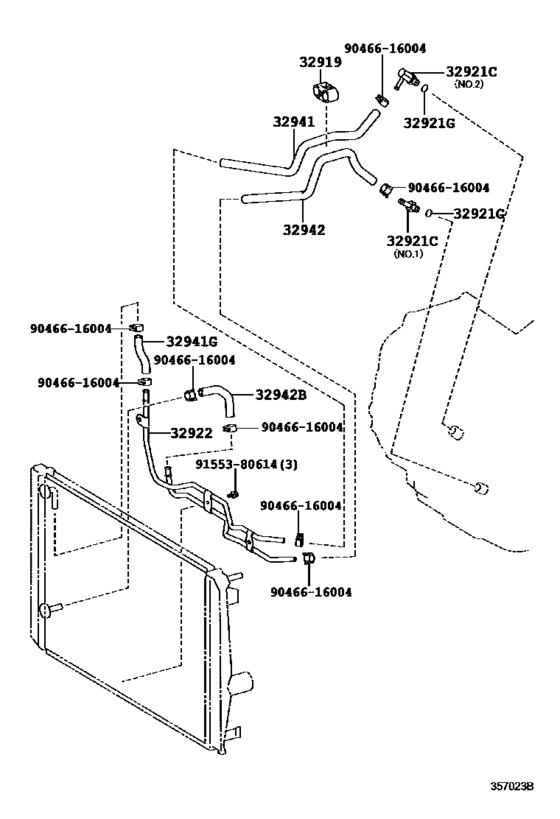

Oil Cooler & Tube (Atm) ([12.2008 - ] U241E (0812- )4FC) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- GL
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32919
|
32919
32919-58010 Holder, Oil Cooler Tube[12.2008 - 04.2012] GSR50..LHD;ACR50..4FC..(GCC,GEN) |
32919-58010 |
US $2.91 |
||
|
32921C
|
32921C
90404-13004
Union(For Oil Cooler Tube)
[01.2006 - 12.2008] ACR50 NO.1 |
90404-13004 |
— | ||
| replacement | |||||
|
32921C
|
32921C
90404-13010 Union(For Oil Cooler Tube)[01.2006 - 12.2008] ACR50 NO.1 |
90404-13010 |
US $5.56 |
||
|
32921C
|
32921C
90404-13010 Union(For Oil Cooler Tube)[03.2016 - 05.2016] ACR50..4FC NO.1 |
90404-13010 |
US $5.56 |
||
|
32921C
|
32921C
90407-13009 Union(For Oil Cooler Tube)[01.2006 - 12.2008] ACR50 NO.2 |
90407-13009 |
US $5.39 |
||
| replacement | |||||
|
32921C
|
32921C
90407-13010 Union(For Oil Cooler Tube)[01.2006 - 12.2008] ACR50 NO.2 |
90407-13010 |
US $7.17 |
||
|
32921C
|
32921C
90407-13010 Union(For Oil Cooler Tube)[03.2016 - 05.2016] ACR50..4FC NO.2 |
90407-13010 |
US $7.17 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[01.2006 - 12.2008] ACR50 |
90301-10189 |
from US $2.63 |
||
|
32922
|
32922
32907-28050 Tube Sub-Assy, Oil Cooler W/o Hose, No.1[01.2006 - 12.2008] ACR50,GSR50 |
32907-28050 |
from US $23.40 |
||
|
32941
|
32941
32941-28280
Hose, Oil Cooler Inlet, No.1
[01.2006 - 12.2008] ACR50 |
32941-28280 |
— | ||
|
32941
|
32941
32941-28300
Hose, Oil Cooler Inlet, No.1
[12.2008 - 04.2012] ACR50..4FC..(GCC,GEN) |
32941-28300 |
— | ||
|
32941G
|
32941G
90445-17179 Hose, Oil Cooler Inlet, No.3[01.2006 - 12.2008] ACR50,GSR50 |
90445-17179 |
from US $5.52 |
||
|
32942
|
32942
32942-28290 Hose, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [01.2006 - 12.2008] ACR50 |
32942-28290 |
US $30.71 |
||
|
32942
|
32942
32942-28340
Hose, Oil Cooler Outlet, No.1
[12.2008 - 04.2012] ACR50..4FC..(GCC,GEN) |
32942-28340 |
— | ||
|
32942B
|
32942B
32942-28270 Hose, Oil Cooler Inlet, No.2[01.2006 - 12.2008] ACR50,GSR50 |
32942-28270 |
from US $11.11 |
||
|
9046616004
|
9046616004
90466-16004 Clip(For Ventilation Hose No.2) |
90466-16004 |
from US $1.85 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
