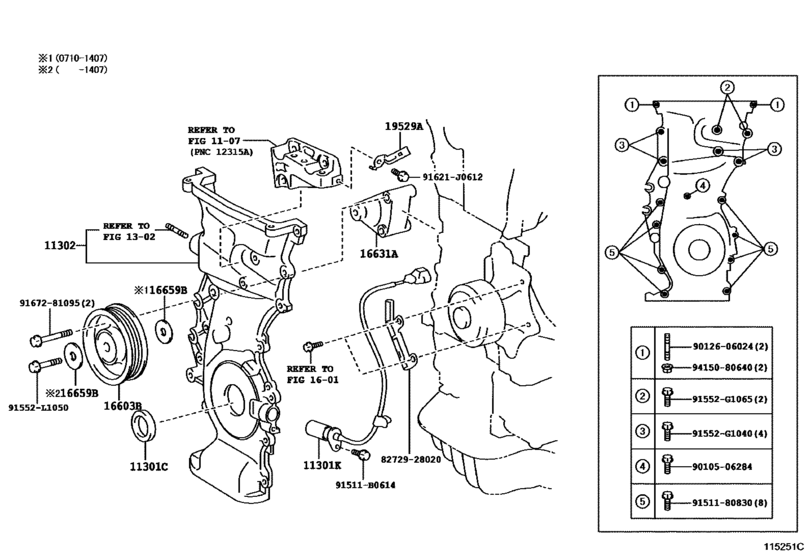

Timing Gear Cover & Rear End Plate ([01.2006 - 05.2016] *195 (0601-1605)2AZFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- GL
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-38089 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[01.2006 - 12.2008] 2AZFE..ACR50 *195 |
90311-38089 |
from US $7.17 |
||
|
11301C
|
11301C
90311-38098 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90311-38098 |
from US $7.17 |
||
|
11301K
|
11301K
90919-05047 Sensor, Crank Position[01.2006 - 12.2008] 2AZFE..ACR50 *195 |
90919-05047 |
from US $80.87 |
||
|
11302
|
11302
11310-28090 Cover Sub-Assy, Timing Chain Or Belt[01.2006 - 12.2008] 2AZFE..ACR50 *195 |
11310-28090 |
US $228.80 |
||
|
16603B
|
16603B
16603-28020 Pulley Sub-Assy, Idler[01.2006 - 09.2007] 2AZFE..ACR50 *195 |
16603-28020 |
from US $54.02 |
||
|
16603B
|
16603B
16603-28050 Pulley Sub-Assy, Idler[07.2014 - 05.2016] 2AZFE..ACR50 |
16603-28050 |
from US $53.86 |
||
|
16631A
|
16631A
16631-28030 Bracket, Idler Pulley[01.2006 - 10.2007] 2AZFE..ACR50 *195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC,*195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC&FRONT AI |
16631-28030 |
US $85.90 |
||
| replacements | |||||
|
16631A
|
16631A
16631-28031 Bracket, Idler Pulley[01.2006 - 10.2007] 2AZFE..ACR50 *195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC,*195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC&FRONT AI |
16631-28031 |
US $54.16 |
||
|
16631A
|
16631A
16659-31011 Plate, Idler Pulley Cover, No.2[01.2006 - 10.2007] 2AZFE..ACR50 *195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC,*195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC&FRONT AI |
16659-31011 |
from US $1.83 |
||
|
16631A
|
16631A
16631-28031 Bracket, Idler Pulley[10.2007 - 12.2008] 2AZFE..ACR50 *195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC,*195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC&FRONT AI |
16631-28031 |
US $54.16 |
||
|
16659B
|
16659B
16659-31011 Plate, Idler Pulley Cover, No.2[01.2006 - 10.2007] 2AZFE..ACR50 *195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC,*195; 2AZFE..ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC,*195; 2AZFE..ACR50..RHD..GEN MALAYSIA SPEC&FRONT AI |
16659-31011 |
from US $1.83 |
||
|
19529A
|
19529A
19529-28030 Clamp[01.2006 - 12.2008] 2AZFE..ACR50 *195 |
19529-28030 |
US $2.77 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91552G1040
|
91552G1040
91552-G1040 BOLT FLANGE |
91552-G1040 |
US $2.15 |
||
|
91552G1065
|
91552G1065
91552-G1065 BOLT FLANGE |
91552-G1065 |
US $1.93 |
||
|
91552L1050
|
91552L1050
91552-L1050 BOLT FLANGE |
91552-L1050 |
US $3.23 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
8272928020
|
8272928020
82729-28020 New Genuine Part |
82729-28020 |
US $2.91 |
||
|
9010506284
|
9010506284
90105-06284 New Genuine Part |
90105-06284 |
US $0.73 |
||
|
9012606024
|
9012606024
90126-06024 STUD HEX LOBULAR |
90126-06024 |
US $1.79 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.58 |
||
|
9167281095
|
9167281095
91672-81095 BOLT FLANGE |
91672-81095 |
US $3.16 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
