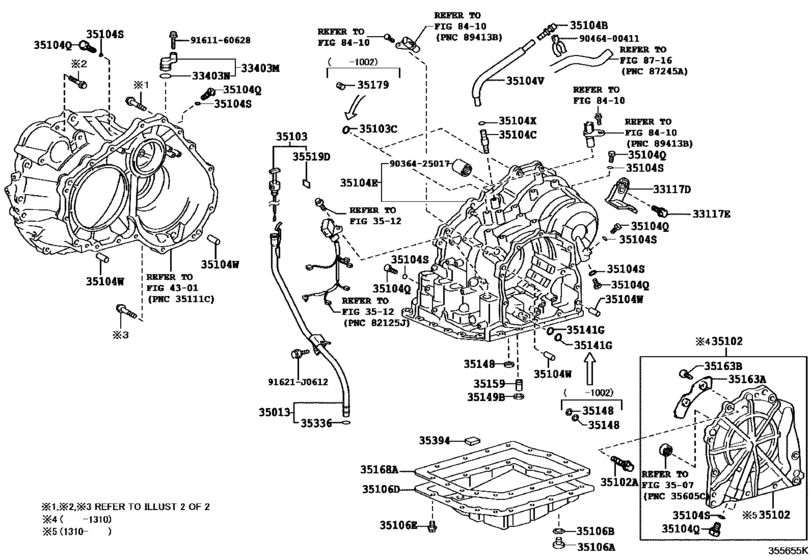

Transmission Case & Oil Pan (Atm) ([01.2006 - ] U241E (0601- )4FC) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- GL
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33117D
|
33117D
33117-28020 Protector, Automatic Transmission Case[01.2006 - 12.2008] ACR50 |
33117-28020 |
US $15 |
||
|
33117E
|
33117E
91641-H0820 Bolt[01.2006 - 12.2008] ACR50 |
91641-H0820 |
from US $0.82 |
||
|
33403M
|
33403M
33403-20230 Cover Sub-Assy, Speedometer Driven Hole[01.2006 - 12.2008] ACR50 |
33403-20230 |
US $13.80 |
||
|
33403N
|
33403N
96711-24018 Ring, O[01.2006 - 12.2008] ACR50 |
96711-24018 |
from US $2.22 |
||
|
35013
|
35013
35013-42090
Tube Sub-Assy, Transmission Oil Filler
[01.2006 - 12.2008] ACR50 |
35013-42090 |
— | ||
|
35102
|
35102
35102-42020 Cover Sub-Assy, Transaxle RearTRANSAXLE REAR [10.2013 - 05.2016] ACR50..4FC *345 |
35102-42020 |
US $316.68 |
||
|
35102
|
35102
35102-44010 Cover Sub-Assy, Transaxle Rear[01.2006 - 12.2008] ACR50 |
35102-44010 |
US $357.86 |
||
| replacements | |||||
|
35102
|
35102
35102-42020 Cover Sub-Assy, Transaxle RearTRANSAXLE REAR [01.2006 - 12.2008] ACR50 |
35102-42020 |
US $316.68 |
||
|
35102
|
35102
35102-42H00 Cover Sub-Assy, Transaxle Rear[01.2006 - 12.2008] ACR50 |
35102-42H00 |
US $33.49 |
||
|
35102A
|
35102A
90105-08071 Bolt (For Transaxle Rear Cover Setting)[01.2006 - 12.2008] ACR50 *8-1.25PX30-25 |
90105-08071 |
US $0.96 |
||
|
35103
|
35103
35103-42090
Gage Sub-Assy, Transmission Oil Level
[01.2006 - 12.2008] ACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN TAIWAN SPEC; ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..LHD..GL..GEN JORDAN SPEC; ACR50..LHD..GL..GEN GUATEMALA SPEC; ACR50..LHD..GL..GEN HONDURAS SPEC; ACR50..LHD..GL.. |
35103-42090 |
— | ||
|
35103C
|
35103C
90301-06008 Ring, O (For Transfer Oil Strainer)[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
90301-06008 |
from US $0.76 |
||
|
35104B
|
35104B
90930-03149 Plug Sub-Assy, Breather(For Transmission)[01.2006 - 12.2008] ACR50 |
90930-03149 |
from US $3.94 |
||
|
35104C
|
35104C
90930-03157 Plug, Breather, No.2 (Atm)[01.2006 - 12.2008] ACR50 |
90930-03157 |
from US $4.66 |
||
|
35104E
|
35104E
35104-28093 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [10.2013 - 05.2016] ACR50..4FC *345 |
35104-28093 |
from US $783.33 |
||
|
35104E
|
35104E
35104-33090 Case Sub-Assy, Automatic Transaxle[01.2006 - 09.2006] ACR50 |
35104-33090 |
US $1,244.88 |
||
| replacements | |||||
|
35104E
|
35104E
35104-33H02
Case Sub-Assy, Automatic Transmission
[01.2006 - 09.2006] ACR50 |
35104-33H02 |
— | ||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[01.2006 - 09.2006] ACR50 |
90301-06008 |
from US $0.76 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[01.2006 - 09.2006] ACR50 |
90301-10189 |
from US $2.63 |
||
|
35104E
|
35104E
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[01.2006 - 09.2006] ACR50 |
90105-06320 |
— | ||
|
35104E
|
35104E
35104-33091 Case Sub-Assy, Automatic Transaxle[09.2006 - 12.2008] ACR50 |
35104-33091 |
US $1,157.52 |
||
| replacements | |||||
|
35104E
|
35104E
35104-28093 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [09.2006 - 12.2008] ACR50 |
35104-28093 |
from US $783.33 |
||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[09.2006 - 12.2008] ACR50 |
90301-06008 |
from US $0.76 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[09.2006 - 12.2008] ACR50 |
90301-10189 |
from US $2.63 |
||
|
35104E
|
35104E
35104-33081 Case Sub-Assy, Automatic Transaxle[09.2006 - 12.2008] ACR50 |
35104-33081 |
US $1,082.29 |
||
|
35104E
|
35104E
82123-28431
Wire, Engine, No.3
[09.2006 - 12.2008] ACR50 |
82123-28431 |
— | ||
|
35104E
|
35104E
82715-44520 Bracket,wiring Harness Clamp[09.2006 - 12.2008] ACR50 |
82715-44520 |
US $5.24 |
||
|
35104E
|
35104E
90119-08868 BOLT WWASHER[09.2006 - 12.2008] ACR50 |
90119-08868 |
US $1.25 |
||
|
35104E
|
35104E
35104-33092 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
35104-33092 |
US $861.95 |
||
| replacements | |||||
|
35104E
|
35104E
35104-28093 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
35104-28093 |
from US $783.33 |
||
|
35104E
|
35104E
35104-33081 Case Sub-Assy, Automatic Transaxle[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
35104-33081 |
US $1,082.29 |
||
|
35104E
|
35104E
82123-28431
Wire, Engine, No.3
[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
82123-28431 |
— | ||
|
35104E
|
35104E
82715-44520 Bracket,wiring Harness Clamp[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
82715-44520 |
US $5.24 |
||
|
35104E
|
35104E
90119-08868 BOLT WWASHER[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
90119-08868 |
US $1.25 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[01.2006 - 12.2008] ACR50 |
90341-08001 |
from US $1.52 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[01.2006 - 12.2008] ACR50 |
90301-06196 |
from US $2.24 |
||
|
35104V
|
35104V
35121-21020 Hose (For Breather Plug)[01.2006 - 12.2008] ACR50 |
35121-21020 |
US $9.46 |
||
|
35104W
|
35104W
90250-10034 Pin, Straight (For Transaxle Case)[10.2013 - 05.2016] ACR50..4FC *345 |
90250-10034 |
US $1.16 |
||
|
35104W
|
35104W
90250-10036 Pin, Straight (For Transaxle Case)[01.2006 - 12.2008] ACR50 |
90250-10036 |
US $1.60 |
||
| replacement | |||||
|
35104W
|
35104W
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[01.2006 - 12.2008] ACR50 |
90250-10232 |
US $1.79 |
||
|
35104W
|
35104W
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[02.2013 - 10.2013] ACR50..4FC *344 |
90250-10232 |
US $1.79 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[01.2006 - 12.2008] ACR50,GSR50 |
90301-06005 |
from US $2.30 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[01.2006 - 12.2008] ACR50 |
90341-18016 |
from US $1.83 |
||
|
35106B
|
35106B
90430-18008 Gasket[01.2006 - 12.2008] ACR50 |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2006 - 12.2008] ACR50 |
90430-T0021 |
US $1.01 |
||
|
35106D
|
35106D
35106-28090 Pan Sub-Assy, Automatic Transaxle Oil[10.2013 - 05.2016] ACR50..4FC *345 |
35106-28090 |
from US $73.13 |
||
|
35106D
|
35106D
35106-33030 Pan Sub-Assy, Automatic Transaxle Oil[01.2006 - 12.2008] ACR50 |
35106-33030 |
from US $85.18 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[01.2006 - 12.2008] ACR50,GSR50 |
90119-06173 |
from US $0.76 |
||
|
35141G
|
35141G
90301-10189 Ring, O(For Oil Cooler Tube Union)[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
90301-10189 |
from US $2.63 |
||
|
35148
|
35148
35145-21010 Gasket, Transaxle Case[02.2010 - 04.2012] ACR50..4FC..(GCC,GEN) |
35145-21010 |
from US $5.34 |
||
|
35149B
|
35149B
35149-21010 Gasket, Transaxle Case 2Nd Brake[01.2006 - 12.2008] ACR50 |
35149-21010 |
from US $4.37 |
||
|
35159
|
35159
35159-21010 Gasket, Brake Drum[01.2006 - 12.2008] ACR50 |
35159-21010 |
from US $6.99 |
||
|
35163A
|
35163A
35163-28010 Plate, Transaxle Rear Cover[01.2006 - 12.2008] ACR50 |
35163-28010 |
US $2.97 |
||
|
35163B
|
35163B
90148-60055 Screw, Hex Lobular(For Transaxle Rear Cover Plate)[01.2006 - 12.2008] ACR50,GSR50 |
90148-60055 |
US $0.73 |
||
|
35168A
|
35168A
35168-21011 Gasket, Automatic Transaxle Oil Pan[10.2013 - 05.2016] ACR50..4FC *345 |
35168-21011 |
from US $9.09 |
||
|
35168A
|
35168A
35168-21020 Gasket, Automatic Transaxle Oil Pan[01.2006 - 12.2008] ACR50 |
35168-21020 |
from US $9.75 |
||
|
35179
|
35179
35179-32010 Gasket, Overdrive Brake[01.2006 - 12.2008] ACR50 |
35179-32010 |
US $8.67 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[01.2006 - 12.2008] ACR50 |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[01.2006 - 12.2008] ACR50,GSR50 |
35394-30011 |
from US $5.62 |
||
|
35394
|
35394
35394-48010 Magnet, Oil Cleaner (For Transmission)[10.2013 - 05.2016] ACR50..4FC *345 |
35394-48010 |
from US $5.02 |
||
|
35519D
|
35519D
35519-41010 Label, Automatic Transmission Information[01.2006 - 12.2008] ACR50..RHD;ACR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN TAIWAN SPEC; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC; ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..LHD..GL..GEN JORDAN SPEC; ACR50..LHD..GL..GEN GUATEMALA SPEC; ACR50..LHD.. |
35519-41010 |
US $4.08 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9036425017
|
9036425017
90364-25017 New Genuine Part |
90364-25017 |
US $40.77 |
||
|
9046400411
|
9046400411
90464-00411 New Genuine Part |
90464-00411 |
US $1.60 |
||
|
9161160628
|
9161160628
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
