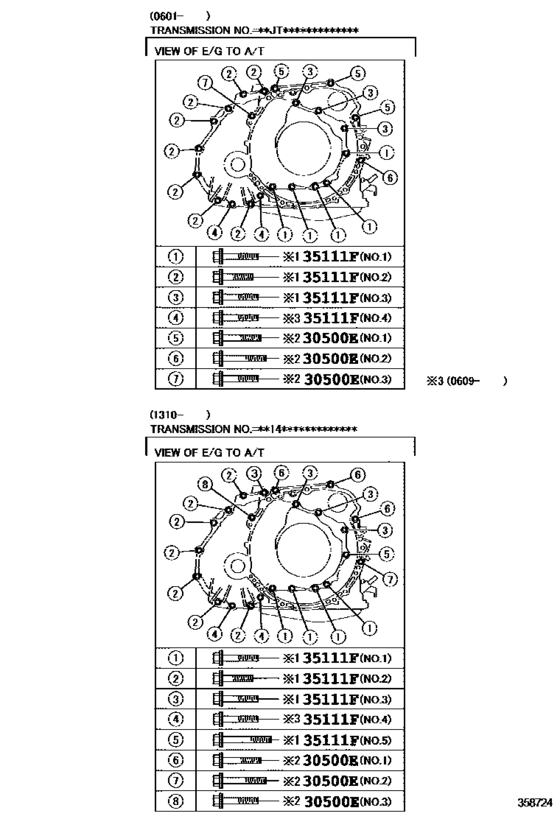

Transmission Case & Oil Pan (Atm) ([01.2006 - ] U241E (0601- )4FC) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- GL
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90119-12168 Bolt(For Transaxle & Engine Setting)[01.2006 - 12.2008] ACR50 *12-1.25PX55-30,NO.1 |
90119-12168 |
from US $2.01 |
||
|
30500E
|
30500E
91512-61050 Bolt(For Alternator)[01.2006 - 12.2008] ACR50 *10-1.25PX50-30,NO.3 |
91512-61050 |
US $2.15 |
||
|
30500E
|
30500E
91512-61065 Bolt(For Transaxle & Engine Setting)[01.2006 - 12.2008] ACR50 *10-1.25PX65-30,NO.2 |
91512-61065 |
US $2.62 |
||
|
35111F
|
35111F
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[09.2006 - 12.2008] ACR50 *6-1.00PX50-25,NO.4 |
90105-06320 |
— | ||
|
35111F
|
35111F
90105-08066 Bolt (For Transaxle Housing & Transaxle Case Setting)[10.2013 - 05.2016] ACR50..4FC *8-1.25PX72-30,*345,NO.5 |
90105-08066 |
US $1.75 |
||
|
35111F
|
35111F
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting)[10.2013 - 05.2016] ACR50..4FC *8-1.25PX42-30,*345,NO.2 |
90105-08233 |
US $0.87 |
||
| replacement | |||||
|
35111F
|
35111F
90080-10187 Bolt (For Transaxle Housing & Transaxle Case Setting)[10.2013 - 05.2016] ACR50..4FC *8-1.25PX42-30,*345,NO.2 |
90080-10187 |
US $3.96 |
||
|
35111F
|
35111F
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[01.2006 - 12.2008] ACR50 *8-1.25PX50-30,NO.1 & NO.3 |
90105-08353 |
from US $0.92 |
||
