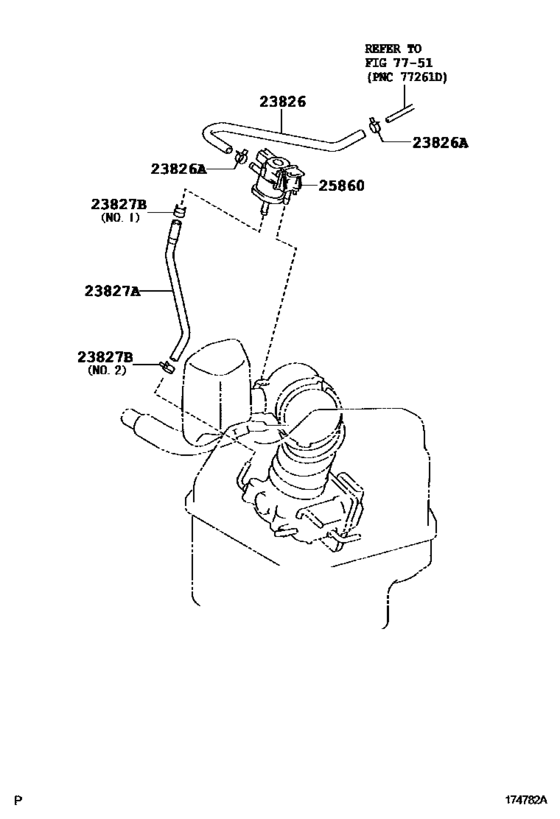

Vacuum Piping ([01.2006 - ] (0601- )2AZFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- GL
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23826
|
23826
23826-28350 Hose, Fuel Vapor Feed, No.1[01.2006 - 12.2008] 2AZFE..ACR50 |
23826-28350 |
from US $6.86 |
||
|
23826A
|
23826A
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[06.2008 - 12.2008] 2AZFE..ACR50 |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23826A
|
23826A
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[06.2008 - 12.2008] 2AZFE..ACR50 |
90466-A0001 |
US $3.15 |
||
|
23826A
|
23826A
96132-51100 Clip (For Hose)[01.2006 - 05.2008] 2AZFE..ACR50 |
96132-51100 |
from US $1.42 |
||
|
23827A
|
23827A
23827-28300 Hose, Fuel Vapor Feed, No.2[01.2006 - 12.2008] 2AZFE..ACR50 |
23827-28300 |
from US $6.94 |
||
|
23827B
|
23827B
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[01.2006 - 12.2008] 2AZFE..ACR50 NO.1 |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23827B
|
23827B
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[01.2006 - 12.2008] 2AZFE..ACR50 NO.1 |
90466-A0001 |
US $3.15 |
||
|
23827B
|
23827B
96132-41000 Clip, No.1(For Idle-Up Hose)[01.2006 - 12.2008] 2AZFE..ACR50 NO.2 |
96132-41000 |
from US $1.43 |
||
|
25860
|
25860
25860-28140 Valve Assy, Vacuum Switching, No.1[01.2006 - 12.2008] 2AZFE..ACR50 |
25860-28140 |
from US $55.21 |
||
