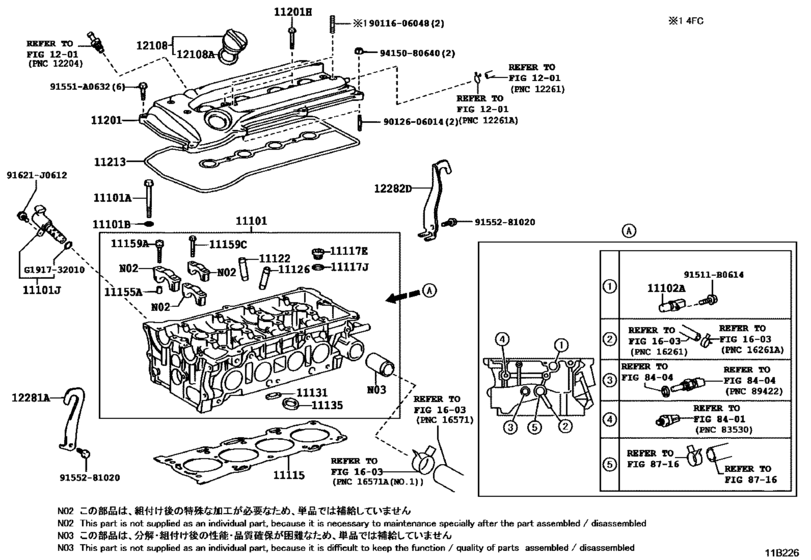

Cylinder Head ([05.2016 - ] (1605- )2AZFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- AERAS
- ENGINE
- 2AZFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 05.2012
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-0H040 Head Sub-Assy, Cylinder[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
11101-0H040 |
US $2,096.64 |
||
|
11101
|
11101
11101-28012 Head Sub-Assy, Cylinder[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
11101-28012 |
from US $1,890.91 |
||
|
11101A
|
11101A
90910-02162 Bolt(For Cylinder Head Set)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90910-02162 |
from US $5.56 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90201-11034 |
from US $0.90 |
||
|
11101J
|
11101J
15330-28020
Valve Assy, Camshaft Timing Oil Control
[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
15330-28020 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-28010 VALVE ASSY CAM[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
15330-28010 |
from US $58.97 |
||
|
11102A
|
11102A
90919-05026 Sensor, Position[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90919-05026 |
from US $76.25 |
||
|
11115
|
11115
11115-28040 Gasket, Cylinder Head[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
11115-28040 |
from US $52.96 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90341-27006 |
from US $5.73 |
||
|
11117J
|
11117J
90430-27005 Gasket(For Cylinder Head Screw Plug)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90430-27005 |
from US $1.25 |
||
|
11122
|
11122
11122-28010 Bush, Intake Valve Guide[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) STD,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*195 |
11122-28010 |
from US $8.33 |
||
|
11122
|
11122
11123-28010 Bush, Intake Valve Guide[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) O/S 0.05,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN O/S 0.05,2AZ-FE,*194 |
11123-28010 |
US $7.43 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) STD,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*195 |
11126-20020 |
from US $6.05 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) O/S 0.05,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN O/S 0.05,2AZ-FE,*194 |
11127-20020 |
US $8.60 |
||
|
11131
|
11131
11131-0H010 Seat, Intake Valve[04.2012 - 12.2013] 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194 |
11131-0H010 |
US $16.45 |
||
| replacement | |||||
|
11131
|
11131
11131-28030 Seat, Intake Valve[04.2012 - 12.2013] 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194 |
11131-28030 |
US $11.50 |
||
|
11131
|
11131
11131-0H030
Seat, Intake Valve
[12.2013 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194 |
11131-0H030 |
— | ||
|
11131
|
11131
11131-28021 Seat, Intake Valve[04.2012 - 12.2013] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) STD,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*195 |
11131-28021 |
US $17.47 |
||
|
11131
|
11131
11131-28040 Seat, Intake Valve[12.2013 - 05.2016] 2AZFE..ACR50 STD,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*195 |
11131-28040 |
US $8.27 |
||
|
11131
|
11131
11132-28021 Seat, Intake Valve[04.2012 - 12.2013] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) O/S 0.03,*195 |
11132-28021 |
US $11.50 |
||
|
11131
|
11131
11132-28030 Seat, Intake Valve[04.2012 - 12.2013] 2AZFE..ACR50..(AERAS,DLX)..GEN O/S 0.03,2AZ-FE,*194 |
11132-28030 |
US $11.50 |
||
|
11131
|
11131
11132-28040 Seat, Intake Valve[12.2013 - 05.2016] 2AZFE..ACR50 O/S 0.03,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN O/S 0.03,2AZ-FE,*194 |
11132-28040 |
from US $8.23 |
||
|
11135
|
11135
11135-0H010 Seat, Exhaust Valve[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194 |
11135-0H010 |
US $16.45 |
||
| replacement | |||||
|
11135
|
11135
11135-28050 Seat, Exhaust Valve[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*194 |
11135-28050 |
US $11.50 |
||
|
11135
|
11135
11135-28040 Seat, Exhaust Valve[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) STD,*195; 2AZFE..ACR50..(AERAS,DLX)..GEN STD,2AZ-FE,*195 |
11135-28040 |
US $10.34 |
||
|
11135
|
11135
11136-28040
Seat, Exhaust Valve
[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) O/S 0.03,*195 |
11136-28040 |
— | ||
|
11135
|
11135
11136-28050 Seat, Exhaust Valve[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN O/S 0.03,2AZ-FE,*194 |
11136-28050 |
US $11.50 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90253-11021 |
from US $1.44 |
||
|
11159A
|
11159A
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90105-08353 |
from US $0.92 |
||
|
11159A
|
11159A
90105-C0069
Bolt(For Head To Camshaft Bearing Cap)
[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
90105-C0069 |
— | ||
|
11159C
|
11159C
90119-06902 Bolt(For Head To Camshaft Bearing Cap)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90119-06902 |
US $1.61 |
||
|
11159C
|
11159C
90119-C0121 Bolt(For Head To Camshaft Bearing Cap)[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
90119-C0121 |
US $1.46 |
||
|
11201
|
11201
11201-0H060 Cover Sub-Assy, Cylinder Head[04.2012 - 09.2012] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
11201-0H060 |
US $253.34 |
||
| replacement | |||||
|
11201
|
11201
11201-0H061 Cover Sub-Assy, Cylinder Head[04.2012 - 09.2012] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
11201-0H061 |
from US $215.96 |
||
|
11201
|
11201
11201-0H061 Cover Sub-Assy, Cylinder Head[09.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
11201-0H061 |
from US $215.96 |
||
|
11201
|
11201
11201-28032 Cover Sub-Assy, Cylinder Head[04.2012 - 10.2012] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
11201-28032 |
US $253.34 |
||
| replacement | |||||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[04.2012 - 10.2012] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
11201-28033 |
from US $292.68 |
||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[10.2012 - 05.2016] 2AZFE..ACR50 *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
11201-28033 |
from US $292.68 |
||
|
11201H
|
11201H
90119-06903 Bolt(For Cylinder Head Cover)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90119-06903 |
US $1.43 |
||
|
11201H
|
11201H
90119-C0122
Bolt(For Cylinder Head Cover)
[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
90119-C0122 |
— | ||
|
11213
|
11213
11213-0H040
Gasket, Cylinder Head Cover
[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
11213-0H040 |
— | ||
|
11213
|
11213
11213-28021 Gasket, Cylinder Head Cover[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
11213-28021 |
from US $15.39 |
||
|
12108
|
12108
12180-0V010
Cap Sub-Assy, Oil Filler
[11.2014 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,(L),*194 |
12180-0V010 |
— | ||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[04.2012 - 11.2014] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
12180-38010 |
from US $11.47 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90430-35001 |
from US $1.17 |
||
|
12281A
|
12281A
12281-0H010
Hanger, Engine, No.1
[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
12281-0H010 |
— | ||
|
12281A
|
12281A
12281-28010 Hanger, Engine, No.1[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
12281-28010 |
US $12.75 |
||
|
12282D
|
12282D
12282-0H010
Hanger, Engine, No.2
[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
12282-0H010 |
— | ||
|
12282D
|
12282D
12282-28010 Hanger, Engine, No.2[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
12282-28010 |
US $26.04 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91551A0632
|
91551A0632
91551-A0632 New Genuine Part |
91551-A0632 |
US $1.61 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.66 |
||
|
9012606014
|
9012606014
90126-06014 STUD HEX LOBULAR |
90126-06014 |
US $3.40 |
||
|
9155281020
|
9155281020
91552-81020 Bolt(For Alternator) |
91552-81020 |
US $1.79 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
|
G191732010
|
G191732010
G1917-32010 RING O SOLENOID |
G1917-32010 |
from US $2.20 |
||
