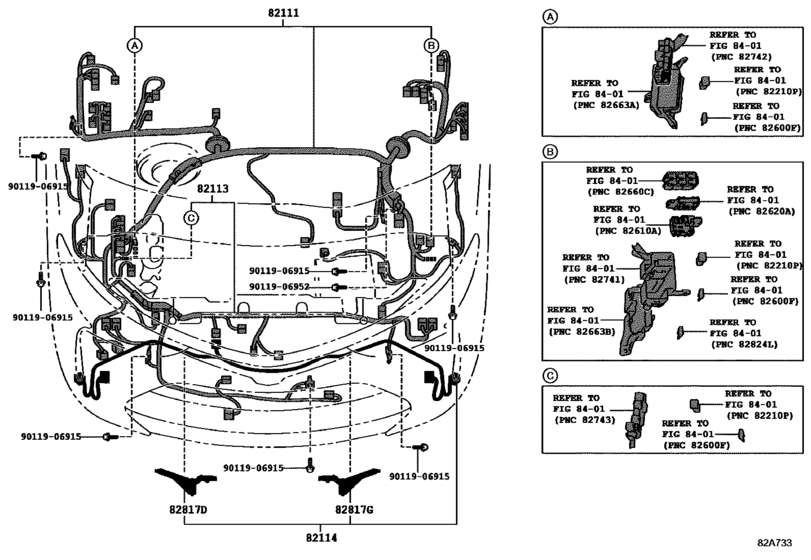

Wiring & Clamp ([05.2016 - ] ENGINE ROOM (1605- )AERAS) Diagram Toyota PREVIA/ TARAGO
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- AERAS
- ENGINE
- 2AZFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 05.2012
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-28F04
Wire, Engine Room Main
[04.2013 - 09.2014] ACR50..CVT..(AERAS,DLX); ACR50..RHD..CVT..GL VSC-WITH |
82111-28F04 |
— | ||
|
82111
|
82111
82111-28F05
Wire, Engine Room Main
[09.2014 - 05.2016] ACR50..RHD..CVT |
82111-28F05 |
— | ||
|
82111
|
82111
82111-28N51
Wire, Engine Room Main
[04.2012 - 04.2013] ACR50..(AERAS,DLX)..GEN; ACR50..RHD..CVT..GL VSC-WITH |
82111-28N51 |
— | ||
|
82111
|
82111
82111-28T00
Wire, Engine Room Main
[05.2016 -] ACR50..AERAS |
82111-28T00 |
— | ||
|
82113
|
82113
82113-28440
Wire, Engine Room, No.3
[05.2012 - 04.2013] ACR50..AERAS |
82113-28440 |
— | ||
|
82113
|
82113
82113-28441
Wire, Engine Room, No.3
[04.2013 - 09.2014] ACR50..AERAS |
82113-28441 |
— | ||
|
82113
|
82113
82113-28442
Wire, Engine Room, No.3
[09.2014 - 05.2016] ACR50..AERAS |
82113-28442 |
— | ||
|
82113
|
82113
82113-28510 Wire, Engine Room, No.3[05.2016 -] ACR50..AERAS |
82113-28510 |
US $404.77 |
||
|
82113
|
82113
82113-28520 Wire, Engine Room, No.3[05.2016 -] ACR50..AERAS CLEARANCE & BACK SONAR-WITH |
82113-28520 |
US $404.77 |
||
|
82114
|
82114
82114-28152 Wire, Engine Room, No.4[05.2012 - 05.2016] ACR50..AERAS |
82114-28152 |
US $59.49 |
||
|
82114
|
82114
82114-28252 Wire, Engine Room, No.4[04.2013 - 05.2016] ACR50..AERAS CLEARANCE SONAR-WITH |
82114-28252 |
US $84.45 |
||
|
82114
|
82114
82114-28260 Wire, Engine Room, No.4[05.2016 -] ACR50..AERAS |
82114-28260 |
US $75.24 |
||
|
82114
|
82114
82114-28270 Wire, Engine Room, No.4[05.2016 -] ACR50..AERAS CLEARANCE & BACK SONAR-WITH |
82114-28270 |
US $75.71 |
||
|
82817D
|
82817D
82817-28U80 Protector, Wiring Harness, No.5[05.2016 -] ACR50..AERAS |
82817-28U80 |
US $11.07 |
||
|
82817G
|
82817G
82817-28U90 Protector, Wiring Harness, No.8[05.2016 -] ACR50..AERAS |
82817-28U90 |
US $11.07 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
