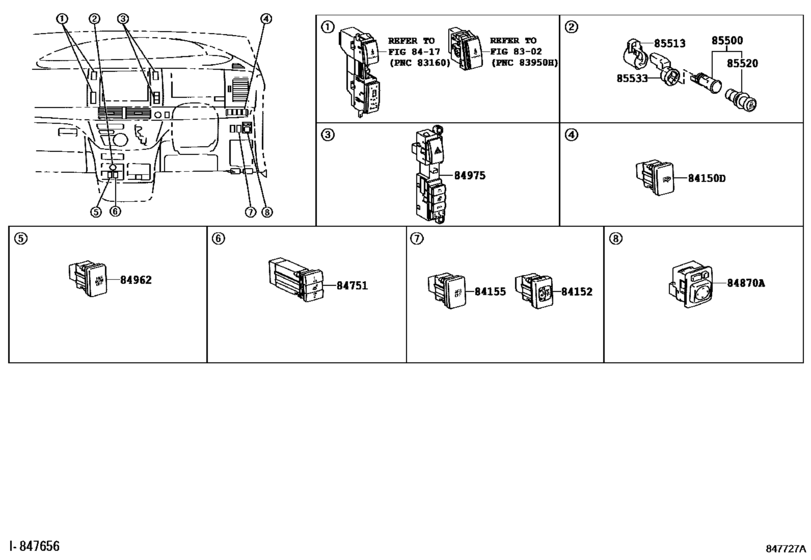

Switch & Relay & Computer ([01.2006 - 12.2008] INSTRUMENT PANEL (0601-0812)RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- ACR50
- grade
- DLX
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 01.2006
- To
- 04.2012
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[01.2006 - 12.2008] ACR50,GSR50 |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[01.2006 - 12.2008] ACR50,GSR50 |
84152-52071 |
US $43.24 |
||
|
84870A
|
84870A
84870-28030
Switch Assy, Outer Mirror
[01.2006 - 12.2008] ACR50..DLX;GSR50..ARL,GCC;ACR50..GL..GCC |
84870-28030 |
— | ||
|
84870A
|
84870A
84870-28040 Switch Assy, Outer Mirror[01.2006 - 12.2008] ACR50,GSR50..GL..GEN; ACR50..RHD..DLX..GEN HONG KONG SPEC |
84870-28040 |
US $73.25 |
||
|
84962
|
84962
84962-28010 Switch, Power Slide Door Main[01.2006 - 12.2008] GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50,GSR50..LHD..GL MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD); GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GE |
84962-28010 |
US $34.36 |
||
| replacement | |||||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[01.2006 - 12.2008] GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50,GSR50..LHD..GL MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD); GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GE |
84962-28011 |
US $51.58 |
||
|
84975
|
84975
84975-28080 Switch, Trip[01.2006 - 06.2007] ACR50..RHD..DLX..GEN |
84975-28080 |
US $103.38 |
||
|
84975
|
84975
84975-28140 Switch, Trip[06.2007 - 12.2008] ACR50..RHD..DLX..GEN |
84975-28140 |
US $129.58 |
||
| replacement | |||||
|
84975
|
84975
84975-28141 Switch, TripTRIP [06.2007 - 12.2008] ACR50..RHD..DLX..GEN |
84975-28141 |
US $107.74 |
||
|
84975
|
84975
84975-28141 Switch, TripTRIP [12.2008 - 04.2012] ACR50..RHD..DLX..GEN |
84975-28141 |
US $107.74 |
||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[01.2006 - 12.2008] ACR50,GSR50 |
85500-28080 |
from US $27.53 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[01.2006 - 12.2008] ACR50,GSR50 |
85513-28010 |
from US $2.54 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[01.2006 - 12.2008] ACR50,GSR50 |
85520-28010 |
from US $16.77 |
||
|
85533
|
85533
85533-30060 Lens, Cigarette Lighter Indicator[01.2006 - 12.2008] ACR50,GSR50 |
85533-30060 |
US $31.75 |
||
