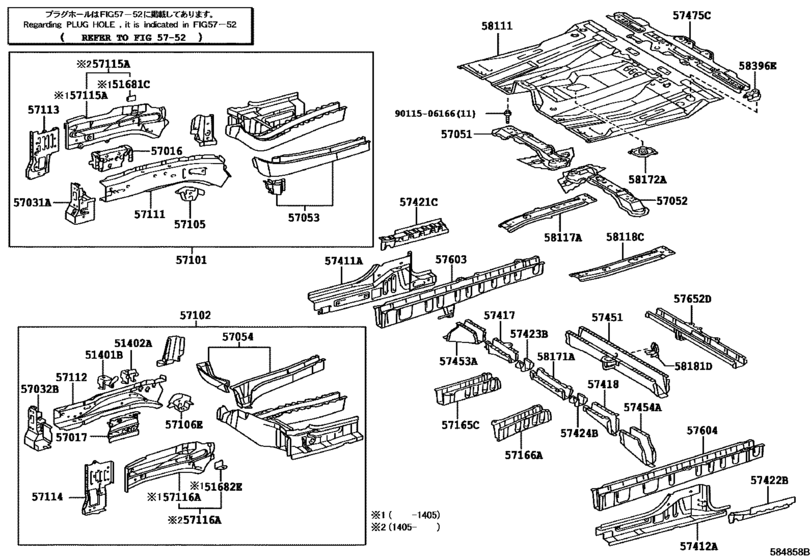

Front Floor Panel & Front Floor Member ([04.2013 - ] (1304- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2013 - 2016
- Sales region
- General
- Frame
- AHR20
- grade
- DLX
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 04.2013
- To
- 05.2016
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-28070 Bracket Sub-Assy, Engine Front Mounting[04.2013 -] AHR20 |
51401-28070 |
US $23.73 |
||
|
51402A
|
51402A
51402-28060 Bracket Sub-Assy, Engine Front Mounting, Lh[04.2013 -] AHR20 |
51402-28060 |
US $23.30 |
||
|
51681C
|
51681C
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[04.2013 - 05.2014] AHR20 |
51681-12080 |
US $8.01 |
||
|
51682E
|
51682E
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[04.2013 - 05.2014] AHR20 |
51682-12080 |
US $8.01 |
||
|
57016
|
57016
57016-12110 Reinforcement Sub-Assy, Front Side Member, Rh[04.2013 -] AHR20 |
57016-12110 |
US $44.69 |
||
|
57017
|
57017
57017-12070 Reinforcement Sub-Assy, Front Side Member, Lh[04.2013 -] AHR20 |
57017-12070 |
US $41.34 |
||
|
57031A
|
57031A
57031-12010 Reinforce Sub-Assy, Front Side Member, No.2 Rh[04.2013 -] AHR20 |
57031-12010 |
US $96.20 |
||
|
57032B
|
57032B
57032-12010 Reinforcement Sub-Assy, Front Side Member, No.2 Lh[04.2013 -] AHR20 |
57032-12010 |
US $102.12 |
||
|
57051
|
57051
57051-28020 Member Sub-Assy, Front Floor Cross, Rh[04.2013 -] AHR20 |
57051-28020 |
US $88.82 |
||
|
57052
|
57052
57052-28010 Member Sub-Assy, Front Floor Cross, Lh[04.2013 -] AHR20 |
57052-28010 |
US $78.62 |
||
|
57053
|
57053
57053-28020 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[04.2013 -] AHR20 |
57053-28020 |
US $158.70 |
||
|
57054
|
57054
57054-28010 Reinforce Sub-Assy, Front Side Member, No.5[04.2013 -] AHR20 |
57054-28010 |
US $161.62 |
||
|
57101
|
57101
57101-28882 Member Sub-Assy, Front Side, Rh[04.2013 -] AHR20 |
57101-28882 |
US $982.80 |
||
|
57102
|
57102
57102-28762 Member Sub-Assy, Front Side, Lh[04.2013 -] AHR20 |
57102-28762 |
US $1,001.73 |
||
|
57105
|
57105
57105-12160 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[04.2013 -] AHR20 |
57105-12160 |
US $31.30 |
||
|
57106E
|
57106E
57106-12150 Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh[04.2013 -] AHR20 |
57106-12150 |
US $33.20 |
||
|
57111
|
57111
57111-12230 Member, Front Side, Rh[04.2013 -] AHR20 |
57111-12230 |
US $109.20 |
||
|
57112
|
57112
57112-28270 Member, Front Side, Lh[04.2013 -] AHR20 |
57112-28270 |
from US $109.20 |
||
|
57113
|
57113
57113-12220 Extension, Front Side Member, Rh[04.2013 -] AHR20 |
57113-12220 |
US $50.62 |
||
|
57114
|
57114
57114-12190 Extension, Front Side Member, Lh[04.2013 - 06.2014] AHR20 |
57114-12190 |
US $44.55 |
||
| replacement | |||||
|
57114
|
57114
57114-12191 Extension, Front Side Member, Lh[04.2013 - 06.2014] AHR20 |
57114-12191 |
US $50.31 |
||
|
57114
|
57114
57114-12191 Extension, Front Side Member, Lh[07.2014 -] AHR20 |
57114-12191 |
US $50.31 |
||
|
57115A
|
57115A
57025-12010 Member Sub-Assy, Front Side, Outer Rh[05.2014 -] AHR20 |
57025-12010 |
US $71.28 |
||
| replacement | |||||
|
57115A
|
57115A
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[05.2014 -] AHR20 |
51681-12080 |
US $8.01 |
||
|
57115A
|
57115A
57115-12090 Plate, Front Side Member, Outer Rh[04.2013 - 05.2014] AHR20 |
57115-12090 |
US $78.62 |
||
| replacement | |||||
|
57115A
|
57115A
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[04.2013 - 05.2014] AHR20 |
51681-12080 |
US $8.01 |
||
|
57116A
|
57116A
57026-12020 Member Sub-Assy, Front Side, Outer Lh[05.2014 -] AHR20 |
57026-12020 |
US $85 |
||
| replacement | |||||
|
57116A
|
57116A
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[05.2014 -] AHR20 |
51682-12080 |
US $8.01 |
||
|
57116A
|
57116A
57116-12091 Plate, Front Side Member, Outer Lh[01.2014 - 05.2014] AHR20 |
57116-12091 |
US $78.62 |
||
| replacement | |||||
|
57116A
|
57116A
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[01.2014 - 05.2014] AHR20 |
51682-12080 |
US $8.01 |
||
|
57116A
|
57116A
57116-42030 Plate, Front Side Member, Outer Lh[04.2013 - 12.2013] AHR20 |
57116-42030 |
US $85.90 |
||
| replacement | |||||
|
57116A
|
57116A
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[04.2013 - 12.2013] AHR20 |
51682-12080 |
US $8.01 |
||
|
57165C
|
57165C
57165-28041 Gusset, Floor Member, Rh[04.2013 -] AHR20 |
57165-28041 |
US $55.47 |
||
|
57166A
|
57166A
57166-28031 Gusset, Floor Member, Lh[04.2013 -] AHR20 |
57166-28031 |
US $55.47 |
||
|
57411A
|
57411A
57411-28031 Member, Floor Side, Inner Rh[04.2013 -] AHR20 |
57411-28031 |
US $90.27 |
||
|
57412A
|
57412A
57412-28031 Member, Floor Side, Inner Lh[04.2013 -] AHR20 |
57412-28031 |
US $90.27 |
||
|
57417
|
57417
57417-28040 Reinforcement, Front Floor Under, Rh[04.2013 -] AHR20 |
57417-28040 |
US $40.48 |
||
|
57418
|
57418
57418-28040 Reinforcement, Front Floor Under, Lh[04.2013 -] AHR20 |
57418-28040 |
US $37.86 |
||
|
57421C
|
57421C
57421-28130 Plate, Floor Side Rail, Rh[04.2013 -] AHR20 |
57421-28130 |
US $26.35 |
||
|
57422B
|
57422B
57422-28100 Plate, Floor Side Rail, Lh[04.2013 -] AHR20 |
57422-28100 |
US $26.35 |
||
|
57423B
|
57423B
57423-28050 Reinforcement, Front Floor Under, Inner Rh[04.2013 -] AHR20 |
57423-28050 |
US $9.76 |
||
|
57424B
|
57424B
57424-28040 Reinforcement, Front Floor Under, Inner Lh[04.2013 -] AHR20 |
57424-28040 |
US $9.76 |
||
|
57451
|
57451
57408-28120 Member, Front Floor Cross[04.2013 -] AHR20 |
57408-28120 |
US $246.06 |
||
|
57453A
|
57453A
57453-28050 Reinforcement, Front Floor Cross Member, Rh[04.2013 -] AHR20 |
57453-28050 |
US $32.47 |
||
|
57454A
|
57454A
57454-28020 Reinforcement, Front Floor Cross Member, Lh[04.2013 -] AHR20 |
57454-28020 |
US $32.18 |
||
|
57475C
|
57475C
57475-28070 Plate, Front Floor Crossmember[04.2013 -] AHR20 |
57475-28070 |
US $129.58 |
||
|
57603
|
57603
57603-28090 Member Sub-Assy, Rear Floor Side, Front Rh[04.2013 -] AHR20 |
57603-28090 |
US $208.21 |
||
|
57604
|
57604
57604-28060 Member Sub-Assy, Rear Floor Side, Front Lh[04.2013 -] AHR20 |
57604-28060 |
US $230.05 |
||
|
57652D
|
57652D
57652-28150 Member, Rear Floor Cross, No.1[04.2013 -] AHR20 |
57652-28150 |
US $135.41 |
||
|
58111
|
58111
58111-28F60 Pan, Front Floor[04.2013 -] AHR20 |
58111-28F60 |
US $279.55 |
||
|
58117A
|
58117A
58117-28040 Reinforcement, Front Floor Side, Rh[04.2013 -] AHR20 |
58117-28040 |
US $46.45 |
||
|
58118C
|
58118C
58118-28060 Reinforcement, Front Floor Side, Lh[04.2013 -] AHR20 |
58118-28060 |
US $46.74 |
||
|
58171A
|
58171A
58171-28050 Reinforce, Parking Brake Base[04.2013 -] AHR20 |
58171-28050 |
US $24.75 |
||
|
58172A
|
58172A
58172-28060 Plate, Parking Brake Mounting[04.2013 -] AHR20 |
58172-28060 |
US $11.21 |
||
|
58181D
|
58181D
58181-28090 Retainer, Parking Brake[04.2013 -] AHR20 |
58181-28090 |
US $13.40 |
||
|
58396E
|
58396E
58396-28060 Bracket, Wire Harness Clamp[04.2013 -] AHR20 |
58396-28060 |
US $3.64 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
