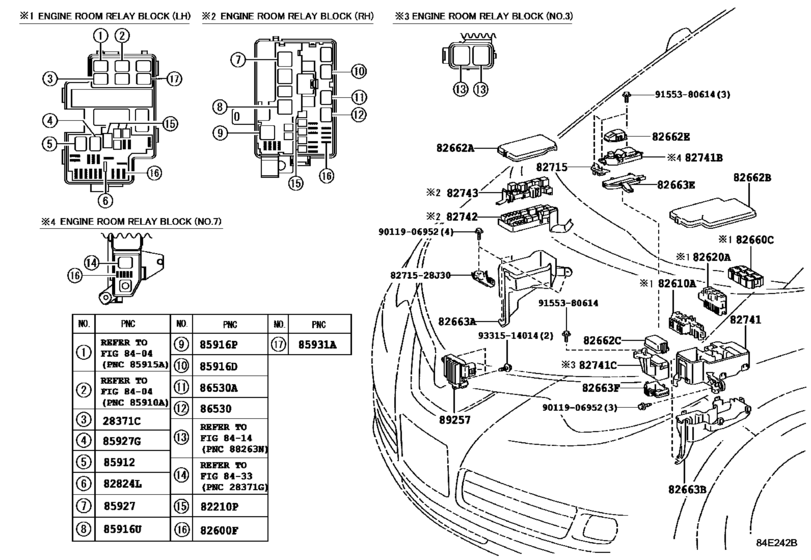

Switch & Relay & Computer ([04.2013 - ] ENGINE ROOM (1304- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2013 - 2016
- Sales region
- General
- Frame
- AHR20
- grade
- DLX
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 04.2013
- To
- 05.2016
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90987-02024 Relay, Ignition, No.1[04.2013 -] 2AZFXE..AHR20 MARK 90987-02024 |
90987-02024 |
US $38.75 |
||
|
28371C
|
28371C
90987-02027 Relay[04.2013 -] 2AZFXE..AHR20 MARK 90987-02027 |
90987-02027 |
from US $31.43 |
||
|
82210P
|
82210P
90982-08203 Fusible Link[04.2013 - 05.2016] AHR20 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[04.2013 - 05.2016] AHR20 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[04.2013 - 05.2016] AHR20 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[04.2013 - 05.2016] AHR20 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2013 - 05.2016] AHR20 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2013 - 05.2016] AHR20 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2013 - 05.2016] AHR20 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2013 - 05.2016] AHR20 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2013 - 05.2016] AHR20 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2013 - 05.2016] AHR20 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82610A
|
82610A
82610-28080 Block Assy, Fuse[04.2013 -] AHR20 |
82610-28080 |
US $31.80 |
||
|
82620A
|
82620A
82620-28270 Block Assy, Fusible Link[04.2013 -] AHR20 |
82620-28270 |
from US $39.04 |
||
|
82660C
|
82660C
82660-28260 Block Assy, Relay[04.2013 -] AHR20 |
82660-28260 |
US $16.60 |
||
|
82662A
|
82662A
82662-28270 Cover, Relay Block, Upper, No.1[04.2013 -] AHR20 |
82662-28270 |
US $26.94 |
||
|
82662B
|
82662B
82662-28180 Cover, Relay Block, Upper, No.2[04.2013 -] AHR20 |
82662-28180 |
US $22.36 |
||
|
82662C
|
82662C
82662-28150 Cover, Relay Block, Upper, No.3[04.2013 -] AHR20 |
82662-28150 |
US $9.32 |
||
|
82662E
|
82662E
82662-28160 Cover, Relay Block, Upper, No.7[04.2013 - 05.2013] AHR20 |
82662-28160 |
US $10.34 |
||
| replacement | |||||
|
82662E
|
82662E
82662-28161 Cover, Relay Block, Upper, No.7[04.2013 - 05.2013] AHR20 |
82662-28161 |
US $14.88 |
||
|
82662E
|
82662E
82662-28161 Cover, Relay Block, Upper, No.7[06.2013 -] AHR20 |
82662-28161 |
US $14.88 |
||
|
82663A
|
82663A
82663-28040 Cover, Relay Block, Lower, No.2[04.2013 -] AHR20 |
82663-28040 |
from US $71.28 |
||
|
82663B
|
82663B
82663-28050 Cover, Relay Block, Lower[04.2013 -] AHR20 |
82663-28050 |
from US $28.57 |
||
|
82663E
|
82663E
82663-28070 Cover, Relay Block, Lower, No.7[04.2013 -] AHR20 |
82663-28070 |
US $9.32 |
||
|
82663F
|
82663F
82663-28090 Cover, Relay Block, Lower, No.8[04.2013 -] AHR20 |
82663-28090 |
US $9.32 |
||
|
82715
|
82715
82715-28G80 Bracket,wiring Harness Clamp[04.2013 -] AHR20 |
82715-28G80 |
US $5.10 |
||
|
82741
|
82741
82741-28020 Block, Engine Room Relay[04.2013 -] AHR20 |
82741-28020 |
US $49.27 |
||
|
82741B
|
82741B
82741-28040 Block, Engine Room Relay[04.2013 -] AHR20 |
82741-28040 |
US $42.66 |
||
|
82741C
|
82741C
82741-28080 Block, Engine Room Relay[04.2013 -] AHR20 |
82741-28080 |
US $19.36 |
||
|
82742
|
82742
82742-28010 Block, Engine Room Relay, No.2[04.2013 -] AHR20 |
82742-28010 |
from US $64.36 |
||
|
82743
|
82743
82743-28020 Block, Engine Room Relay, No.3[04.2013 -] AHR20 |
82743-28020 |
US $54.60 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[04.2013 -] AHR20 |
82824-20140 |
US $3.32 |
||
|
85912
|
85912
90987-04004 Relay, Starter Cut[04.2013 -] AHR20 |
90987-04004 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[04.2013 -] AHR20 |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90987-02025 Relay[04.2013 -] AHR20 MARK 90987-02025 |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-04010 Relay Assy (For Heater Blower Motor)[04.2013 -] AHR20 MARK 90987-04010 |
90987-04010 |
from US $42.71 |
||
|
85916U
|
85916U
90987-02025 Relay[04.2013 -] AHR20 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[04.2013 -] AHR20 |
90987-02025 |
from US $44.54 |
||
|
85927G
|
85927G
90987-02024 Relay, Ignition, No.1[04.2013 -] AHR20 |
90987-02024 |
US $38.75 |
||
|
85931A
|
85931A
90987-04004 Relay, Starter Cut[09.2014 -] AHR20 |
90987-04004 |
from US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[04.2013 -] AHR20 |
90987-02027 |
from US $31.43 |
||
|
86530A
|
86530A
90987-02027 Relay[04.2013 -] AHR20 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
90987-02027 |
from US $31.43 |
||
|
89257
|
89257
89257-30080 Computer, Cooling Fan[04.2013 - 05.2016] AHR20 |
89257-30080 |
from US $226.08 |
||
|
8271528J30
|
8271528J30
82715-28J30
Bracket,wiring Harness Clamp
|
82715-28J30 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
