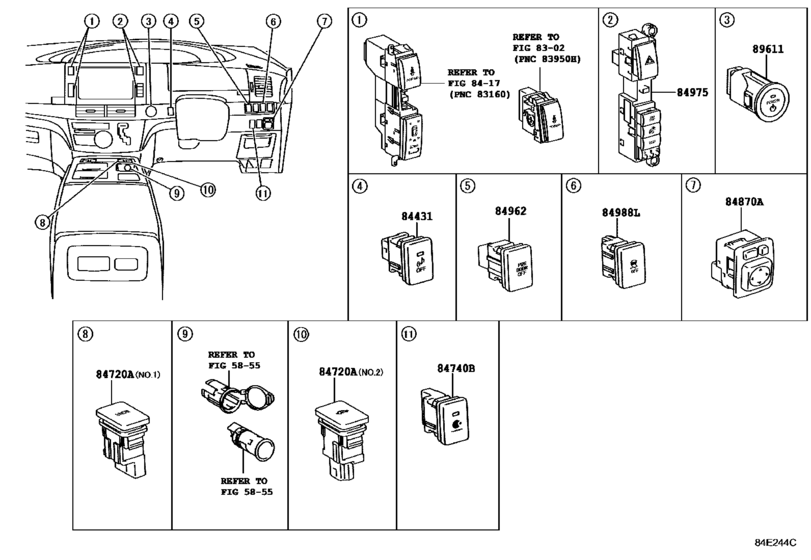

Switch & Relay & Computer ([04.2013 - ] INSTRUMENT PANEL (1304- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2013 - 2016
- Sales region
- General
- Frame
- AHR20
- grade
- DLX
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 04.2013
- To
- 05.2016
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84431
|
84431
84431-76010 Switch, Vehicle Approaching Speaker[04.2013 - 01.2015] AHR20 |
84431-76010 |
US $44.84 |
||
| replacement | |||||
|
84431
|
84431
84431-76011 Switch, Vehicle Approaching Speaker[04.2013 - 01.2015] AHR20 |
84431-76011 |
US $40.77 |
||
|
84431
|
84431
84431-76011 Switch, Vehicle Approaching Speaker[02.2015 -] AHR20 |
84431-76011 |
US $40.77 |
||
|
84720A
|
84720A
84720-28040 Switch Assy, Pattern Select[04.2013 - 12.2014] AHR20 NO.1 |
84720-28040 |
US $39.75 |
||
| replacement | |||||
|
84720A
|
84720A
84720-28041 Switch Assy, Pattern Select[04.2013 - 12.2014] AHR20 NO.1 |
84720-28041 |
US $32.01 |
||
|
84720A
|
84720A
84720-28041 Switch Assy, Pattern Select[01.2015 -] AHR20 NO.1 |
84720-28041 |
US $32.01 |
||
|
84720A
|
84720A
84720-47020 Switch Assy, Pattern Select, No.1[04.2013 - 12.2014] AHR20 NO.2 |
84720-47020 |
US $34.36 |
||
| replacement | |||||
|
84720A
|
84720A
84720-47021 Switch Assy, Pattern Select, No.1[04.2013 - 12.2014] AHR20 NO.2 |
84720-47021 |
US $34.36 |
||
|
84720A
|
84720A
84720-47021 Switch Assy, Pattern Select, No.1[01.2015 -] AHR20 NO.2 |
84720-47021 |
US $34.36 |
||
|
84740B
|
84740B
84741-52010 Switch Assy, Air Purifier[04.2013 - 02.2015] AHR20 |
84741-52010 |
US $21.99 |
||
| replacement | |||||
|
84740B
|
84740B
84741-52011 Switch Assy, Air Purifier[04.2013 - 02.2015] AHR20 |
84741-52011 |
US $19.95 |
||
|
84740B
|
84740B
84741-52011 Switch Assy, Air Purifier[03.2015 -] AHR20 |
84741-52011 |
US $19.95 |
||
|
84870A
|
84870A
84870-28040 Switch Assy, Outer Mirror[04.2013 - 09.2014] AHR20 |
84870-28040 |
US $66.27 |
||
|
84870A
|
84870A
84870-28061 Switch Assy, Outer Mirror[09.2014 -] AHR20 |
84870-28061 |
US $60.28 |
||
|
84962
|
84962
84962-28010 Switch, Power Slide Door Main[04.2013 - 11.2014] AHR20 |
84962-28010 |
US $34.36 |
||
| replacement | |||||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[04.2013 - 11.2014] AHR20 |
84962-28011 |
US $46.66 |
||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[12.2014 -] AHR20 |
84962-28011 |
US $46.66 |
||
|
84975
|
84975
84975-28122 Switch, Trip[04.2013 -] AHR20 |
84975-28122 |
US $142.08 |
||
|
84988L
|
84988L
84988-48070 Switch, Vehicle Stability Control[09.2014 - 12.2014] AHR20 |
84988-48070 |
US $39.75 |
||
| replacement | |||||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[09.2014 - 12.2014] AHR20 |
84988-48071 |
US $34.94 |
||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[01.2015 -] AHR20 |
84988-48071 |
US $34.94 |
||
|
89611
|
89611
89611-75043 Switch, Push Start[04.2013 - 02.2016] AHR20 |
89611-75043 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[04.2013 - 02.2016] AHR20 |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75044 Switch, Push Start[03.2016 - 05.2016] AHR20 |
89611-75044 |
US $210.24 |
||
