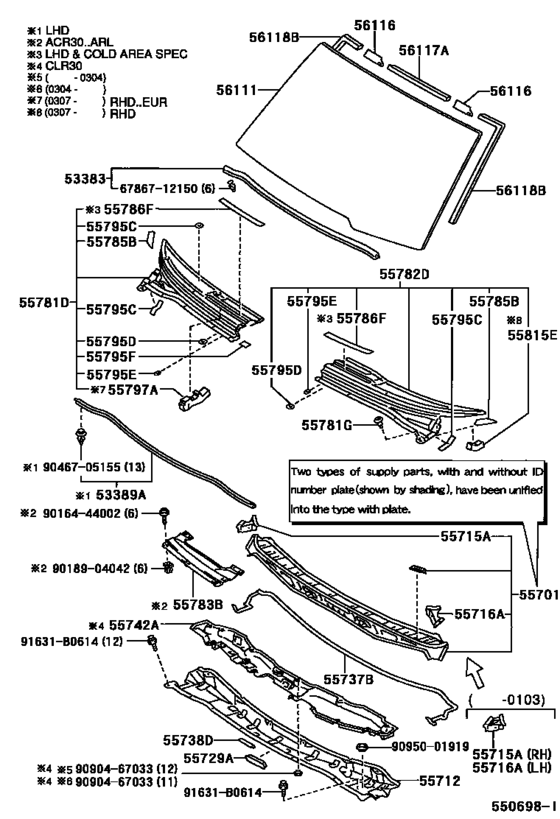

Cowl Panel & Windshield Glass ([02.2000 - ] (0002- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- CLR30
- grade
- DX
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- From
- 02.2001
- To
- 01.2006
- Seating Capacity
- 06S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-28030 Seal, Hood To Cowl Top[02.2000 - 04.2003] ACR30,CLR30 |
53383-28030 |
US $14.50 |
||
|
53389A
|
53389A
53389-28010 Seal, Hood To Cowl Top, No.2HOOD TO COWL TOP, NO.2 [02.2000 - 04.2003] ACR30,CLR30..LHD |
53389-28010 |
US $13.69 |
||
|
55701
|
55701
55700-28020 Panel Sub-Assy, Cowl[07.2000 - 04.2003] ACR30,CLR30 |
55700-28020 |
from US $216.94 |
||
|
55712
|
55712
55720-28050 Panel, Cowl Top Outside, FrontCOWL TOP OUTSIDE, FRONT [02.2001 - 04.2003] CLR30..LHD |
55720-28050 |
US $216.94 |
||
|
55712
|
55712
55720-28120 Panel, Cowl Top Outside, FrontCOWL TOP OUTSIDE, FRONT [04.2003 -] CLR30..LHD |
55720-28120 |
US $216.94 |
||
|
55715A
|
55715A
55715-28010 Brace, Cowl Top To Apron, Rh[02.2000 - 03.2001] ACR30,CLR30 |
55715-28010 |
US $19.95 |
||
|
55715A
|
55715A
55715-28020 Brace, Cowl Top To Apron, Rh[03.2001 - 04.2003] ACR30,CLR30 |
55715-28020 |
US $18.20 |
||
|
55716A
|
55716A
55716-28050 Brace, Cowl Top To Apron, Lh[02.2000 - 03.2001] ACR30,CLR30 |
55716-28050 |
US $19.95 |
||
|
55716A
|
55716A
55716-28060 Brace, Cowl Top To Apron, Lh[03.2001 - 04.2003] ACR30,CLR30 |
55716-28060 |
US $18.20 |
||
|
55729A
|
55729A
55729-28010 Cover, Cowl Panel Hole[02.2000 - 04.2003] ACR30,CLR30 |
55729-28010 |
US $8.44 |
||
|
55737B
|
55737B
55737-28010 Seal, Heater Air Duct Splash Shield, No.1[02.2000 - 04.2003] ACR30,CLR30 |
55737-28010 |
US $20.97 |
||
|
55738D
|
55738D
55738-28020 Seal, Heater Air Duct Splash Shield, No.2[02.2000 - 04.2003] ACR30,CLR30 |
55738-28020 |
US $2.04 |
||
|
55742A
|
55742A
55742-28020 Sheet, Cowl Top InsulatorCOWL TOP INSULATOR [02.2001 - 04.2003] CLR30 |
55742-28020 |
US $94.64 |
||
|
55742A
|
55742A
55742-28030 Sheet, Cowl Top InsulatorCOWL TOP INSULATOR [04.2003 -] CLR30 |
55742-28030 |
US $71.34 |
||
|
55781D
|
55781D
55708-28100 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GCC) |
55708-28100 |
US $101.92 |
||
| replacement | |||||
|
55781D
|
55781D
55708-28110
Louver, Cowl Top Ventilator, Rh
[02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GCC) |
55708-28110 |
— | ||
|
55781D
|
55781D
55708-28110
Louver, Cowl Top Ventilator, Rh
[02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GEN) COLD SPEC |
55708-28110 |
— | ||
|
55781G
|
55781G
55799-28020 Clip, Cowl Top Ventilator Louver[08.2003 -] ACR30,CLR30 |
55799-28020 |
US $2.40 |
||
|
55781G
|
55781G
90467-07197 Clip, Cowl Top Ventilator Louver[02.2000 - 04.2003] ACR30,CLR30 |
90467-07197 |
US $1.75 |
||
| replacement | |||||
|
55781G
|
55781G
55799-28020 Clip, Cowl Top Ventilator Louver[02.2000 - 04.2003] ACR30,CLR30 |
55799-28020 |
US $2.40 |
||
|
55782D
|
55782D
55709-28030
Louver, Cowl Top Ventilator, Lh
[02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GCC) |
55709-28030 |
— | ||
| replacement | |||||
|
55782D
|
55782D
55709-28040
Louver, Cowl Top Ventilator, Lh
[02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GCC) |
55709-28040 |
— | ||
|
55782D
|
55782D
55709-28040
Louver, Cowl Top Ventilator, Lh
[02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GEN) COLD SPEC |
55709-28040 |
— | ||
|
55785B
|
55785B
55785-28030 Sheet, Cowl Top Ventilator Louver[02.2000 - 04.2003] ACR30,CLR30 |
55785-28030 |
US $3.93 |
||
|
55786F
|
55786F
55786-28040 Net, Cowl Top Ventilator LouverCOWL TOP VENTILATOR LOUVER [02.2000 - 04.2003] ACR30,CLR30..LHD..(EUR,GEN) |
55786-28040 |
US $6.41 |
||
|
55795C
|
55795C
55795-28010 Seal, Wiper Motor Service Hole[02.2000 - 04.2003] ACR30,CLR30 L=80 |
55795-28010 |
US $3.93 |
||
| replacement | |||||
|
55795C
|
55795C
55795-28050 Seal, Wiper Motor Service Hole[02.2000 - 04.2003] ACR30,CLR30 L=80 |
55795-28050 |
US $5.68 |
||
|
55795C
|
55795C
55795-28050 Seal, Wiper Motor Service Hole[02.2000 - 04.2003] ACR30,CLR30 L=155 |
55795-28050 |
US $5.68 |
||
|
55795D
|
55795D
55795-28020 Seal, Wiper Motor Service Hole[02.2000 - 05.2001] ACR30,CLR30 |
55795-28020 |
US $2.04 |
||
|
55795E
|
55795E
55795-28030 Seal, Wiper Motor Service Hole[02.2000 - 04.2003] ACR30,CLR30 |
55795-28030 |
US $2.04 |
||
|
55795F
|
55795F
55795-28040 Seal, Wiper Motor Service Hole[02.2000 - 04.2003] ACR30,CLR30 |
55795-28040 |
US $2.04 |
||
|
56111
|
56111
56111-28320
Glass, Windshield
[02.2000 - 01.2003] ACR30,CLR30..LHD..(EUR,GEN) *TL,T=4.7,GREEN |
56111-28320 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-28321
Glass, Windshield
[02.2000 - 01.2003] ACR30,CLR30..LHD..(EUR,GEN) *TL,T=4.7,GREEN |
56111-28321 |
— | ||
|
56111
|
56111
56111-28321
Glass, Windshield
[01.2003 - 04.2003] ACR30,CLR30..LHD..(EUR,GEN) *TL,T=4.7,GREEN |
56111-28321 |
— | ||
|
56116
|
56116
56116-35050 Stopper, Windshield Glass, No.1[02.2000 - 04.2003] ACR30,CLR30 |
56116-35050 |
from US $1.92 |
||
|
56117A
|
56117A
56118-28030 Dam, Window Glass Adhesive[02.2000 - 04.2003] ACR30,CLR30 *D,L=638 |
56118-28030 |
US $8.44 |
||
| replacement | |||||
|
56117A
|
56117A
64813-52010
Dam Kit, Window Glass
[02.2000 - 04.2003] ACR30,CLR30 *D,L=638 |
64813-52010 |
— | ||
|
56118B
|
56118B
56118-28030 Dam, Window Glass Adhesive[02.2000 - 04.2003] ACR30,CLR30 *D,L=1106 |
56118-28030 |
US $8.44 |
||
| replacement | |||||
|
56118B
|
56118B
64813-52010
Dam Kit, Window Glass
[02.2000 - 04.2003] ACR30,CLR30 *D,L=1106 |
64813-52010 |
— | ||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
6786712150
|
6786712150
67867-12150 Clip(For Hood Air Intake Duct Seal) |
67867-12150 |
from US $1.60 |
||
|
9016444002
|
9016444002
90164-44002 New Genuine Part |
90164-44002 |
US $0.96 |
||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.76 |
||
|
9046705155
|
9046705155
90467-05155 New Genuine Part |
90467-05155 |
US $1.75 |
||
|
9090467033
|
9090467033
90904-67033 Clip(For Deck Board No.1) |
90904-67033 |
US $1.28 |
||
|
9095001919
|
9095001919
90950-01919 Cushion, Rear Seat |
90950-01919 |
US $1.60 |
||
