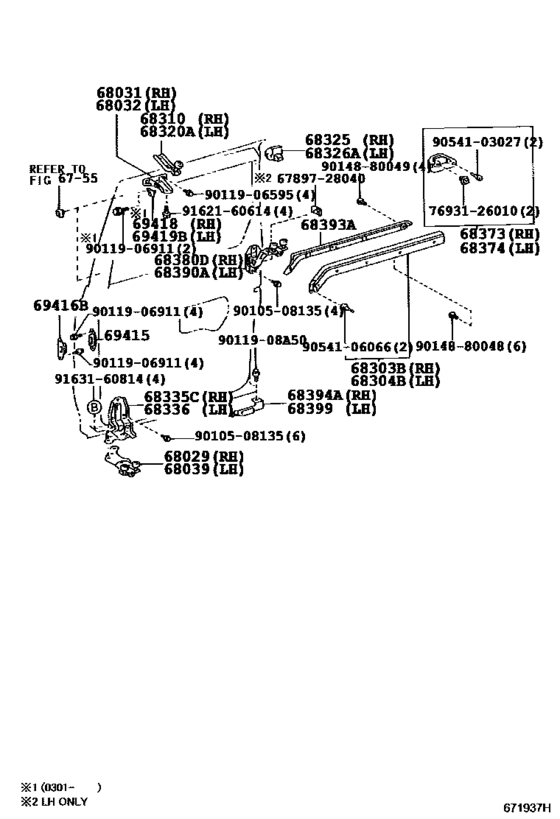

Slide Roller & Rail ([02.2000 - 04.2003] (0002-0304)) Diagram Toyota PREVIA/ TARAGO
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- CLR30
- grade
- DX
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- From
- 02.2001
- To
- 01.2006
- Seating Capacity
- 06S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68029
|
68029
68029-28030 Base Sub-Assy, Slide Door Lower Roller[02.2000 - 04.2003] ACR30,CLR30 |
68029-28030 |
US $68.84 |
||
|
68031
|
68031
68031-28010 Arm Sub-Assy, Slide Door Upper Roller, Rh[02.2000 - 01.2003] ACR30,CLR30 |
68031-28010 |
US $19.80 |
||
| replacements | |||||
|
68031
|
68031
68031-28011 Arm Sub-Assy, Slide Door Upper Roller, Rh[02.2000 - 01.2003] ACR30,CLR30 |
68031-28011 |
from US $19.22 |
||
|
68031
|
68031
68301-28021 Roller Assy, Slide Door, Upper[02.2000 - 01.2003] ACR30,CLR30 |
68301-28021 |
US $13.98 |
||
|
68031
|
68031
68031-28011 Arm Sub-Assy, Slide Door Upper Roller, Rh[01.2003 - 04.2003] ACR30,CLR30 |
68031-28011 |
from US $19.22 |
||
|
68032
|
68032
68032-28010 Arm Sub-Assy, Slide Door Upper Roller, Lh[02.2000 - 01.2003] ACR30,CLR30 |
68032-28010 |
US $19.80 |
||
| replacements | |||||
|
68032
|
68032
68032-28011 Arm Sub-Assy, Slide Door Upper Roller, Lh[02.2000 - 01.2003] ACR30,CLR30 |
68032-28011 |
US $19.22 |
||
|
68032
|
68032
68302-28011 Roller Assy, Slide Door, Upper, Lh[02.2000 - 01.2003] ACR30,CLR30 |
68302-28011 |
US $13.98 |
||
|
68032
|
68032
68032-28011 Arm Sub-Assy, Slide Door Upper Roller, Lh[01.2003 - 04.2003] ACR30,CLR30 |
68032-28011 |
US $19.22 |
||
|
68039
|
68039
68039-28040 Base Sub-Assy, Slide Door Lower Roller, Lh[02.2000 - 04.2003] ACR30,CLR30 |
68039-28040 |
US $68.84 |
||
|
68303B
|
68303B
68303-28050 Rail Sub-Assy, Slide Door, Center Rh[02.2000 - 04.2003] ACR30,CLR30 |
68303-28050 |
US $165.98 |
||
|
68304B
|
68304B
68304-28080 Rail Sub-Assy, Slide Door, Center Lh[02.2000 - 04.2003] ACR30,CLR30 |
68304-28080 |
US $165.98 |
||
|
68310
|
68310
68301-28020
Roller Assy, Slide Door, Upper
[02.2000 - 01.2003] ACR30,CLR30 |
68301-28020 |
— | ||
| replacements | |||||
|
68310
|
68310
68031-28011 Arm Sub-Assy, Slide Door Upper Roller, Rh[02.2000 - 01.2003] ACR30,CLR30 |
68031-28011 |
from US $19.22 |
||
|
68310
|
68310
68301-28021 Roller Assy, Slide Door, Upper[02.2000 - 01.2003] ACR30,CLR30 |
68301-28021 |
US $13.98 |
||
|
68310
|
68310
68301-28021 Roller Assy, Slide Door, Upper[01.2003 - 04.2003] ACR30,CLR30 |
68301-28021 |
US $13.98 |
||
|
68320A
|
68320A
68302-28010
Roller Assy, Slide Door, Upper, Lh
[02.2000 - 01.2003] ACR30,CLR30 |
68302-28010 |
— | ||
| replacements | |||||
|
68320A
|
68320A
68032-28011 Arm Sub-Assy, Slide Door Upper Roller, Lh[02.2000 - 01.2003] ACR30,CLR30 |
68032-28011 |
US $19.22 |
||
|
68320A
|
68320A
68302-28011 Roller Assy, Slide Door, Upper, Lh[02.2000 - 01.2003] ACR30,CLR30 |
68302-28011 |
US $13.98 |
||
|
68320A
|
68320A
68302-28011 Roller Assy, Slide Door, Upper, Lh[01.2003 - 04.2003] ACR30,CLR30 |
68302-28011 |
US $13.98 |
||
|
68325
|
68325
68325-28010
Cushion, Slide Door Upper Rail, Rh
[02.2000 - 04.2003] ACR30,CLR30 |
68325-28010 |
— | ||
| replacement | |||||
|
68325
|
68325
68325-28011 Cushion, Slide Door Upper Rail, Rh[02.2000 - 04.2003] ACR30,CLR30 |
68325-28011 |
US $7.86 |
||
|
68325
|
68325
68325-28011 Cushion, Slide Door Upper Rail, Rh[08.2003 -] ACR30,CLR30 |
68325-28011 |
US $7.86 |
||
|
68326A
|
68326A
68326-28010
Cushion, Slide Door Upper Rail, Lh
[02.2000 - 04.2003] ACR30,CLR30 |
68326-28010 |
— | ||
| replacement | |||||
|
68326A
|
68326A
68326-28011 Cushion, Slide Door Upper Rail, Lh[02.2000 - 04.2003] ACR30,CLR30 |
68326-28011 |
US $7.86 |
||
|
68326A
|
68326A
68326-28011 Cushion, Slide Door Upper Rail, Lh[08.2003 -] ACR30,CLR30 |
68326-28011 |
US $7.86 |
||
|
68335C
|
68335C
68335-28020 Arm, Slide Door Lower Roller, Rh[02.2000 - 04.2003] ACR30,CLR30 |
68335-28020 |
US $80.08 |
||
|
68336
|
68336
68336-28040 Arm, Slide Door Lower Roller, Lh[02.2000 - 04.2003] ACR30,CLR30 |
68336-28040 |
US $66.68 |
||
|
68373
|
68373
68373-28040 Moulding, Slide Rail End, Rh[02.2000 - 04.2003] ACR30,CLR30 |
68373-28040 |
US $10.19 |
||
|
68374
|
68374
68374-28100 Moulding, Slide Rail End, Lh[02.2000 - 04.2003] ACR30,CLR30 |
68374-28100 |
US $10.19 |
||
|
68380D
|
68380D
68380-28010 Hinge Assy, Slide Door, Center Rh[02.2000 - 04.2003] ACR30,CLR30 |
68380-28010 |
from US $96.10 |
||
|
68390A
|
68390A
68390-28020 Hinge Assy, Slide Door, Center Lh[02.2000 - 04.2003] ACR30,CLR30 |
68390-28020 |
from US $96.10 |
||
|
68393A
|
68393A
61057-28010 Protector, Slide Door Center Rail[02.2000 - 04.2003] ACR30,CLR30 RH |
61057-28010 |
from US $70.76 |
||
|
68393A
|
68393A
61067-28020 Protector, Slide Door Center Rail[02.2000 - 04.2003] ACR30,CLR30 LH |
61067-28020 |
US $71.05 |
||
|
68394A
|
68394A
68394-28010 Plate, Slide Door Lower Rail, Rh[02.2000 - 04.2003] ACR30,CLR30 |
68394-28010 |
US $8.15 |
||
|
68399
|
68399
68399-28020 Plate, Slide Door Lower Rail, Lh[02.2000 - 04.2003] ACR30,CLR30 |
68399-28020 |
US $8.15 |
||
|
69415
|
69415
69405-28010 Stopper, Slide Door Down Female[09.2001 - 04.2003] ACR30,CLR30 |
69405-28010 |
US $4.95 |
||
|
69415
|
69415
69415-26010 Stopper, Slide Door Down Female[02.2000 - 09.2001] ACR30,CLR30 |
69415-26010 |
from US $9.91 |
||
|
69415
|
69415
69415-28030 Stopper, Slide Door Down Female[04.2003 -] ACR30,CLR30 |
69415-28030 |
US $16.26 |
||
|
69416B
|
69416B
69416-26010 Stop, Slide Door Down Male[02.2000 - 04.2003] ACR30,CLR30 |
69416-26010 |
from US $11.33 |
||
|
69416B
|
69416B
69416-28050 Stopper, Slide Door Down Male[04.2003 - 10.2005] ACR30,CLR30 |
69416-28050 |
US $14.41 |
||
| replacements | |||||
|
69416B
|
69416B
69416-28110 Stopper, Slide Door Down Male[04.2003 - 10.2005] ACR30,CLR30 |
69416-28110 |
US $14.41 |
||
|
69416B
|
69416B
69457-28030 New Genuine Part[04.2003 - 10.2005] ACR30,CLR30 |
69457-28030 |
US $1.75 |
||
|
69416B
|
69416B
69416-28110 Stopper, Slide Door Down Male[10.2005 -] ACR30,CLR30 |
69416-28110 |
US $14.41 |
||
|
69418
|
69418
69418-28050 Stop, Slide Door Open[01.2003 - 04.2003] ACR30,CLR30 |
69418-28050 |
US $9.32 |
||
|
69419B
|
69419B
69419-28030 Stop, Slide Door Open, Lh[01.2003 - 04.2003] ACR30,CLR30 |
69419-28030 |
US $9.32 |
||
|
9011908A50
|
9011908A50
90119-08A50 New Genuine Part |
90119-08A50 |
US $1.75 |
||
| replacement | |||||
|
9011908A50
|
9011908A50
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.82 |
||
|
6789728040
|
6789728040
67897-28040 Cushion, Rear Door |
67897-28040 |
US $4.95 |
||
|
7693126010
|
7693126010
76931-26010 Retainer, Side Mudguard, No.3 |
76931-26010 |
US $1.12 |
||
|
9010508135
|
9010508135
90105-08135 BOLTWATER BASED |
90105-08135 |
US $1.89 |
||
| replacement | |||||
|
9010508135
|
9010508135
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.11 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.52 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9014880048
|
9014880048
90148-80048 New Genuine Part |
90148-80048 |
US $5.82 |
||
|
9014880049
|
9014880049
90148-80049 New Genuine Part |
90148-80049 |
US $0.96 |
||
|
9054103027
|
9054103027
90541-03027 New Genuine Part |
90541-03027 |
US $1.31 |
||
|
9054106066
|
9054106066
90541-06066 New Genuine Part |
90541-06066 |
US $2.18 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9163160814
|
9163160814
91631-60814 New Genuine Part |
91631-60814 |
US $1.28 |
||
