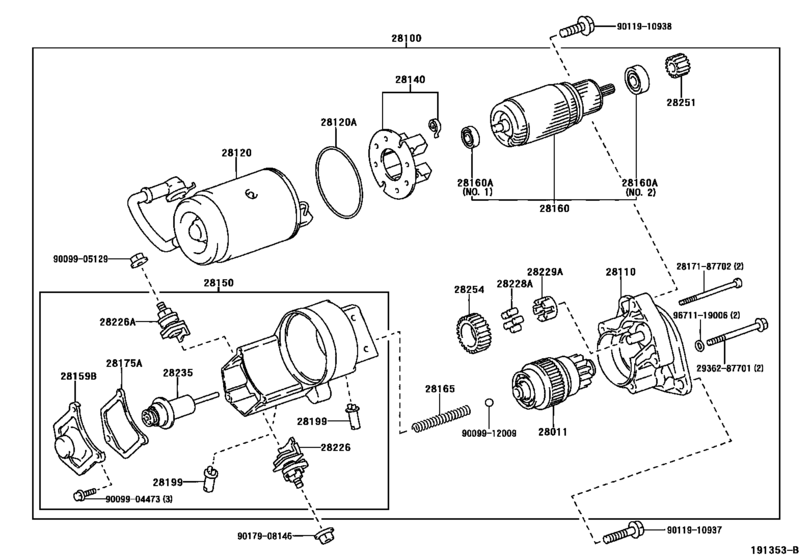

Starter ([02.2001 - 04.2003] 12V 2.2KW (0102-0304)1CDFTV) Diagram Toyota PREVIA/ TARAGO
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- CLR30
- grade
- DX
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- From
- 02.2001
- To
- 01.2006
- Seating Capacity
- 06S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64020 Clutch Sub-Assy, Starter[02.2001 - 04.2003] 1CDFTV..CLR30 |
28011-64020 |
US $203.84 |
||
|
28100
|
28100
28100-64430 Starter Assy[02.2001 - 04.2003] 1CDFTV..CLR30 12V 2.2KW |
28100-64430 |
US $1,994.72 |
||
|
28110
|
28110
28115-64430
Housing Assy, Starter Drive
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28115-64430 |
— | ||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28120-64040 |
— | ||
|
28120A
|
28120A
90099-64040
Rubber(For Starter Yoke)
[02.2001 - 04.2003] 1CDFTV..CLR30 |
90099-64040 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[02.2001 - 04.2003] 1CDFTV..CLR30 |
28140-64040 |
from US $37.19 |
||
|
28150
|
28150
28150-64430 Switch Assy, Magnet StarterMAGNET STARTER [02.2001 - 04.2003] 1CDFTV..CLR30 |
28150-64430 |
US $311.58 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28159-10040 |
— | ||
|
28160
|
28160
28160-64041 Armature Assy, Starter[02.2001 - 04.2003] 1CDFTV..CLR30 |
28160-64041 |
US $242.86 |
||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[02.2001 - 04.2003] 1CDFTV..CLR30 NO.1 |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[02.2001 - 04.2003] 1CDFTV..CLR30 NO.2 |
90099-10143 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28165-26040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28175-10040 |
— | ||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[02.2001 - 04.2003] 1CDFTV..CLR30 |
28199-46080 |
from US $2.97 |
||
|
28226
|
28226
28226-74300
Starter Kit, Battery Terminal
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28226-74300 |
— | ||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[02.2001 - 04.2003] 1CDFTV..CLR30 |
28226-72010 |
from US $10.49 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28228-26040 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[02.2001 - 04.2003] 1CDFTV..CLR30 |
28235-35080 |
from US $25.68 |
||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28251-54070 |
— | ||
|
28254
|
28254
28254-64040
Pinion, Starter Drive
[02.2001 - 04.2003] 1CDFTV..CLR30 |
28254-64040 |
— | ||
|
2817187702
|
2817187702
28171-87702
Bolt, Starter
|
28171-87702 |
— | ||
|
2936287701
|
2936287701
29362-87701
Bolt, Starter
|
29362-87701 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011910937
|
9011910937
90119-10937 New Genuine Part |
90119-10937 |
US $2.33 |
||
|
9011910938
|
9011910938
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9671119006
|
9671119006
96711-19006 Packing(For Radiator Drain Cock) |
96711-19006 |
US $2.88 |
||
