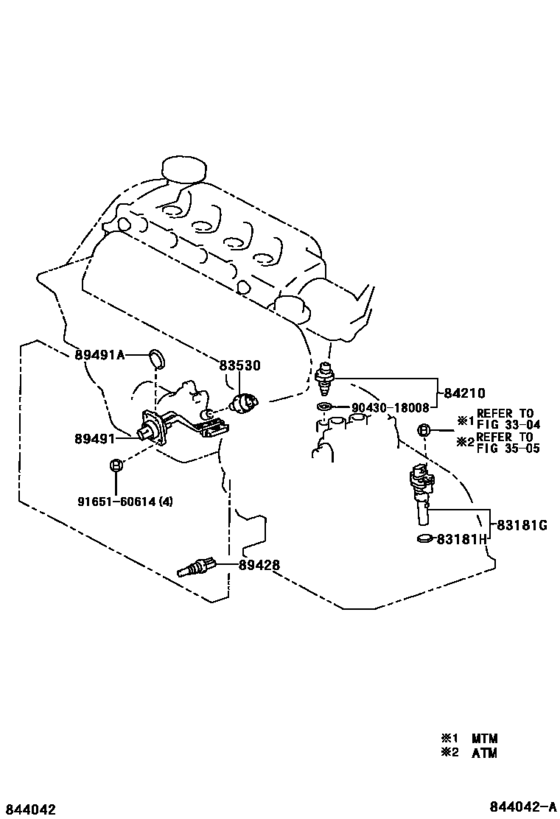

Switch & Relay & Computer ([02.2001 - ] ENGINE & TRANSMISSI0N (0102- )CLR30) Diagram Toyota PREVIA/ TARAGO
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- CLR30
- grade
- DX
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- From
- 02.2001
- To
- 01.2006
- Seating Capacity
- 06S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12030 Sensor, Speedometer[02.2000 - 04.2003] ACR30,CLR30..MTM |
83181-12030 |
from US $160.74 |
||
|
83181H
|
83181H
96711-24018 Ring, O[02.2000 - 04.2003] ACR30,CLR30 |
96711-24018 |
from US $2.26 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[02.2001 - 04.2003] CLR30 |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[02.2000 - 04.2003] ACR30,CLR30..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[02.2000 - 04.2003] ACR30,CLR30..MTM |
84210-52050 |
from US $20.67 |
||
|
89428
|
89428
89428-20110 Switch, Temperature Detect, No.2[02.2000 - 04.2003] ACR30,CLR30 |
89428-20110 |
from US $76.95 |
||
|
89491
|
89491
89491-28080 Sensor, Engine Oil LevelENGINE OIL LEVEL [02.2001 - 04.2003] CLR30 |
89491-28080 |
US $305.76 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[02.2000 - 04.2003] ACR30,CLR30 |
89493-60010 |
from US $2.24 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
