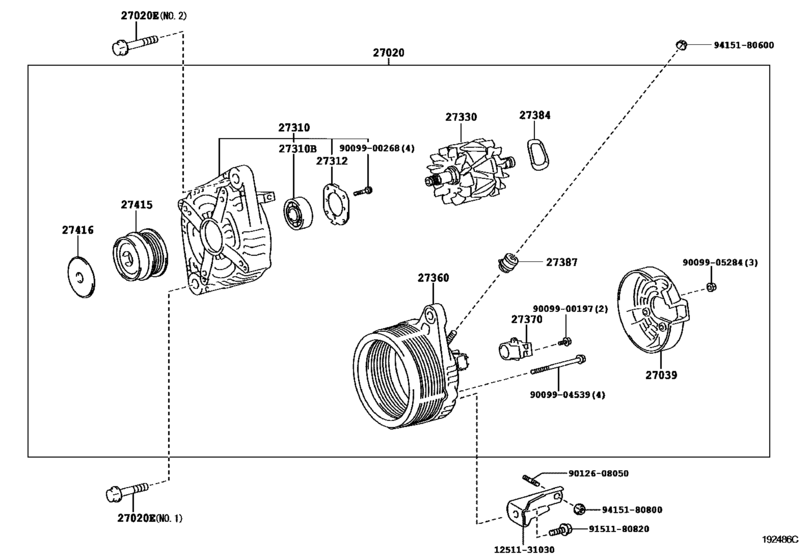

Alternator ([11.2006 - ] 12V 150A (0611- )2GRFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31100 Alternator Assy[11.2006 - 06.2007] 2GRFE..GSR50 12V 150A |
27060-31100 |
US $2,184 |
||
| replacement | |||||
|
27020
|
27020
27060-31102 Alternator Assy[11.2006 - 06.2007] 2GRFE..GSR50 12V 150A |
27060-31102 |
US $1,359.90 |
||
|
27020
|
27020
27060-31101 Alternator Assy[07.2007 - 12.2008] 2GRFE..GSR50 12V 150A |
27060-31101 |
US $1,805.44 |
||
| replacement | |||||
|
27020
|
27020
27060-31102 Alternator Assy[07.2007 - 12.2008] 2GRFE..GSR50 12V 150A |
27060-31102 |
US $1,359.90 |
||
|
27020
|
27020
27060-31102 Alternator Assy[08.2009 - 04.2012] 2GRFE..GSR50..LHD 12V 150A |
27060-31102 |
US $1,359.90 |
||
|
27020E
|
27020E
91552-81040 Bolt(For Alternator)[11.2006 - 12.2008] 2GRFE..GSR50 NO.1 |
91552-81040 |
from US $1.15 |
||
|
27020E
|
27020E
91552-81070 Bolt(For Alternator)[11.2006 - 12.2008] 2GRFE..GSR50 NO.2 |
91552-81070 |
from US $1.52 |
||
|
27039
|
27039
27039-27060
Cover, Alternator Rear End
[01.2006 - 12.2008] 2AZFE,2GRFE..ACR50,GSR50 |
27039-27060 |
— | ||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[07.2009 - 04.2012] 2GRFE..GSR50..LHD |
27039-31390 |
— | ||
|
27310
|
27310
27310-31290
Frame Assy, Drive End, Alternator
[11.2006 - 12.2008] 2GRFE..GSR50 |
27310-31290 |
— | ||
|
27310B
|
27310B
90099-10142 Bearing(For Alternator Drive End Frame)[01.2006 - 12.2006] 2GRFE..GSR50 |
90099-10142 |
US $17.39 |
||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[12.2006 - 12.2008] 2AZFE,2GRFE..ACR50,GSR50 |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[01.2006 - 12.2008] 2AZFE,2GRFE..ACR50,GSR50 |
27312-72100 |
— | ||
|
27330
|
27330
27330-58460
Rotor Assy, Alternator
[01.2006 - 12.2008] 2AZFE,2GRFE..ACR50,GSR50 |
27330-58460 |
— | ||
|
27360
|
27360
27360-31300
Coil Assy, Alternator
[11.2006 - 12.2008] 2GRFE..GSR50 |
27360-31300 |
— | ||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[11.2006 - 12.2008] 2GRFE..GSR50 |
27370-31220 |
from US $19.62 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[01.2006 - 12.2008] 2AZFE,2GRFE..ACR50,GSR50 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[01.2006 - 12.2008] 2AZFE,2GRFE..ACR50,GSR50 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0W010
Pulley, Alternator W/clutch
[11.2006 - 12.2008] 2GRFE..GSR50 |
27415-0W010 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[11.2006 - 12.2008] 2GRFE..GSR50 |
27415-0W131 |
from US $60.37 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[11.2006 - 12.2008] 2GRFE..GSR50 |
27416-0W050 |
from US $3.84 |
||
|
27415
|
27415
27415-0W130
Pulley, Alternator W/clutch
[07.2009 - 04.2012] 2GRFE..GSR50..LHD |
27415-0W130 |
— | ||
| replacement | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[07.2009 - 04.2012] 2GRFE..GSR50..LHD |
27415-0W131 |
from US $60.37 |
||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[07.2013 - 05.2016] 2GRFE..GSR50 |
27415-0W131 |
from US $60.37 |
||
|
27416
|
27416
27416-0W010 Cap, Alternator Pulley[11.2006 - 12.2008] 2GRFE..GSR50 |
27416-0W010 |
US $7.16 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[07.2009 - 04.2012] 2GRFE..GSR50..LHD |
27416-0W050 |
from US $3.84 |
||
|
1251131030
|
1251131030
12511-31030 Bracket, Alternator, No.1 |
12511-31030 |
US $12.38 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.42 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9012608050
|
9012608050
90126-08050 New Genuine Part |
90126-08050 |
US $1.43 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.80 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
