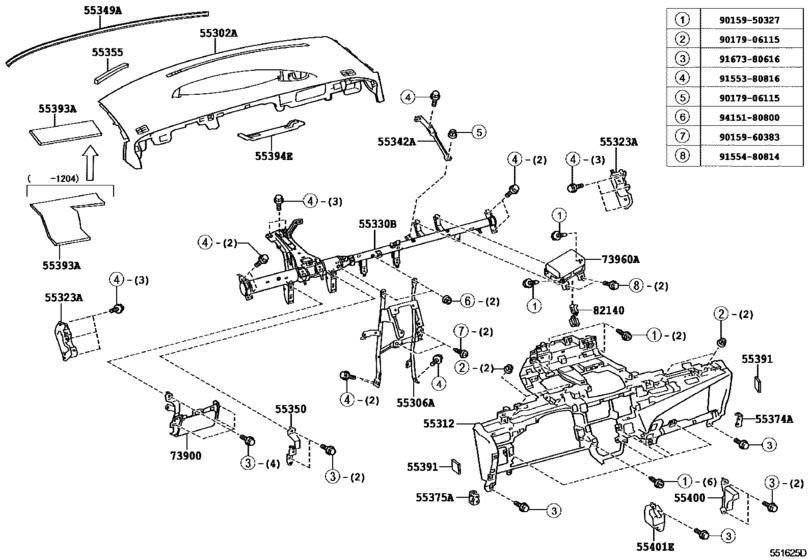

Instrument Panel & Glove Compartment ([01.2006 - ] (0601- )LHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-28070-E0
Panel Sub-Assy, Instrument, Upper
[01.2006 - 12.2006] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN ASH BROWN,TRIM4# |
55302-28070-E0 |
— | ||
| replacement | |||||
|
55302A
|
55302A
55302-28231-E1 Panel Sub-Assy, Center Control[01.2006 - 12.2006] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN ASH BROWN,TRIM4# |
55302-28231-E1 |
US $640.64 |
||
|
55302A
|
55302A
55302-28071-E0
Panel Sub-Assy, Instrument, Upper
[01.2007 - 12.2008] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN ASH BROWN,TRIM4# |
55302-28071-E0 |
— | ||
| replacement | |||||
|
55302A
|
55302A
55302-28231-E1 Panel Sub-Assy, Center Control[01.2007 - 12.2008] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN ASH BROWN,TRIM4# |
55302-28231-E1 |
US $640.64 |
||
|
55302A
|
55302A
55302-28230-E0
Panel Sub-Assy, Instrument, Upper
[04.2012 - 12.2015] ACR50,GSR50..LHD DK. BROWN,TRIM0# |
55302-28230-E0 |
— | ||
| replacement | |||||
|
55302A
|
55302A
55302-28231-E0
Panel Sub-Assy, Instrument, Upper
[04.2012 - 12.2015] ACR50,GSR50..LHD DK. BROWN,TRIM0# |
55302-28231-E0 |
— | ||
|
55302A
|
55302A
55302-28231-E0
Panel Sub-Assy, Instrument, Upper
[01.2016 - 05.2016] ACR50,GSR50..LHD DK. BROWN,TRIM0# |
55302-28231-E0 |
— | ||
|
55306A
|
55306A
55306-28200
Brace Sub-Assy, Instrument Panel, No.1
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55306-28200 |
— | ||
|
55312
|
55312
55312-28070-A0
Panel, Instrument, Lower
[04.2012 - 12.2015] ACR50,GSR50..LHD SHELL,TRIM0# |
55312-28070-A0 |
— | ||
| replacement | |||||
|
55312
|
55312
55312-28071-A0
Panel, Instrument, Lower
[04.2012 - 12.2015] ACR50,GSR50..LHD SHELL,TRIM0# |
55312-28071-A0 |
— | ||
|
55312
|
55312
55312-28070-E0
Panel, Instrument, Lower
[01.2006 - 12.2008] ACR50,GSR50..LHD GREGE,TRIM4# |
55312-28070-E0 |
— | ||
| replacement | |||||
|
55312
|
55312
55312-28071-E0
Panel, Instrument, Lower
[01.2006 - 12.2008] ACR50,GSR50..LHD GREGE,TRIM4# |
55312-28071-E0 |
— | ||
|
55312
|
55312
55312-28071-A0
Panel, Instrument, Lower
[01.2016 - 05.2016] ACR50,GSR50..LHD SHELL,TRIM0# |
55312-28071-A0 |
— | ||
|
55323A
|
55323A
55304-28020 Bracket, Instrument Panel, No.3[01.2006 - 12.2008] ACR50,GSR50 RH |
55304-28020 |
US $22.42 |
||
|
55323A
|
55323A
55304-28030 Bracket, Instrument Panel, No.3[01.2006 - 12.2008] ACR50,GSR50 LH |
55304-28030 |
US $22.42 |
||
|
55330B
|
55330B
55330-28200
Reinforcement Assy, Instrument Panel
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55330-28200 |
— | ||
|
55342A
|
55342A
55342-28070
Brace, Instrument Panel To Cowl, No.2
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55342-28070 |
— | ||
|
55349A
|
55349A
55349-28220
Cushion, Instrument Panel
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55349-28220 |
— | ||
|
55349A
|
55349A
55349-28260
Cushion, Instrument Panel
[12.2008 - 04.2012] ACR50,GSR50..LHD |
55349-28260 |
— | ||
|
55350
|
55350
55350-28020
Brace Assy, Instrument Panel
[01.2006 - 12.2008] ACR50,GSR50..LHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
55350-28020 |
— | ||
|
55355
|
55355
55355-28110 Cushion, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [01.2006 - 12.2008] ACR50,GSR50..LHD |
55355-28110 |
US $2.18 |
||
|
55374A
|
55374A
55374-28050 Bracket, Instrument Panel Lower Mounting, Rh[01.2006 - 12.2008] ACR50,GSR50 |
55374-28050 |
US $5.10 |
||
|
55375A
|
55375A
55375-28050 Bracket, Instrument Panel Lower Mounting, Lh[01.2006 - 12.2008] ACR50,GSR50 |
55375-28050 |
US $5.10 |
||
|
55391
|
55391
55391-28040 Cushion, Instrument Panel, Lower No.1[01.2006 - 12.2008] ACR50,GSR50 |
55391-28040 |
US $4.66 |
||
|
55393A
|
55393A
55393-28070
Cushion, Instrument Panel, Lower No.3
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55393-28070 |
— | ||
|
55393A
|
55393A
55393-28080 Cushion, Instrument Panel, Lower No.3[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
55393-28080 |
US $17.18 |
||
|
55394E
|
55394E
55394-28040 Cushion, Instrument Panel, Lower No.4[01.2006 - 12.2008] ACR50,GSR50 |
55394-28040 |
US $7.43 |
||
|
55400
|
55400
55400-28020
Pad Assy, Instrument Panel Safety
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55400-28020 |
— | ||
|
55401E
|
55401E
55401-28090
Pad Sub-Assy, Instrument Panel Safety
[01.2006 - 12.2008] ACR50,GSR50..LHD |
55401-28090 |
— | ||
|
73900
|
73900
73900-28020-A0
Air Bag Assy, Instrument Panel, Lower No.1
[04.2012 - 05.2016] GSR50..LHD SHELL,TRIM0#; ACR50..LHD..CVT SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0# |
73900-28020-A0 |
— | ||
|
73900
|
73900
73900-28020-E0
Air Bag Assy, Instrument Panel, Lower No.1
[01.2006 - 12.2008] ACR50,GSR50..LHD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
73900-28020-E0 |
— | ||
|
73960A
|
73960A
73960-28080
Air Bag Assy, Instrument Panel Passenger W/o Door
[01.2006 - 12.2008] ACR50,GSR50..LHD |
73960-28080 |
— | ||
|
82140
|
82140
82140-28010 Wire Assy, Instrument Panel[01.2006 - 12.2008] ACR50,GSR50 |
82140-28010 |
US $7.28 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9155380816
|
9155380816
91553-80816 Bolt (For Transmission Control Cable Bracket) |
91553-80816 |
from US $0.84 |
||
|
9155480814
|
9155480814
91554-80814 New Genuine Part |
91554-80814 |
US $0.67 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
