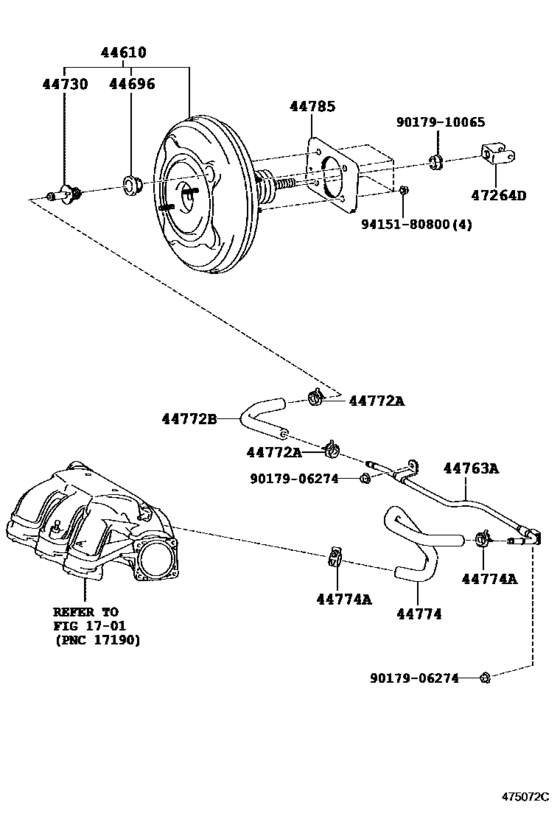

Brake Booster & Vacuum Tube ([11.2006 - ] (0611- )GSR50..RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-28A30 Booster Assy, Brake[01.2006 - 12.2008] ACR50,GSR50..RHD VSC-WITH |
44610-28A30 |
US $470.29 |
||
|
44610
|
44610
44610-28A40 Booster Assy, Brake[01.2006 - 12.2008] ACR50,GSR50..RHD |
44610-28A40 |
US $786.24 |
||
|
44610
|
44610
44610-28B80 Booster Assy, Brake[09.2014 - 05.2016] GSR50..ARL;ACR50..RHD..CVT |
44610-28B80 |
US $425.15 |
||
|
44696
|
44696
90480-24015 Grommet, Check Valve[01.2006 - 12.2008] ACR50,GSR50 |
90480-24015 |
from US $2.33 |
||
|
44730
|
44730
44730-28030 Valve Assy, Vacuum Check(For Brake)[01.2006 - 12.2008] ACR50,GSR50..RHD |
44730-28030 |
from US $22.85 |
||
|
44763A
|
44763A
44763-28120 Tube, Hose To Hose, No.1[11.2006 - 12.2008] GSR50..RHD |
44763-28120 |
US $16.16 |
||
|
44772A
|
44772A
90467-16014 Clip(For Vacuum Hose)[12.2012 - 05.2016] ACR50..LHD;GSR50..ARL,GCC;GSR50..LHD..GEN |
90467-16014 |
US $4.12 |
||
|
44772A
|
44772A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.2006 - 12.2008] GSR50;ACR50..LHD |
96133-41500 |
from US $2.32 |
||
|
44772B
|
44772B
44772-28190 Hose, Check Valve To Brake Booster[11.2006 - 12.2008] GSR50..RHD |
44772-28190 |
US $10.34 |
||
|
44774
|
44774
44774-28260 Hose, Union To Connector Tube[11.2006 - 12.2008] GSR50..RHD |
44774-28260 |
US $16.74 |
||
|
44774A
|
44774A
90467-16014 Clip(For Vacuum Hose)[12.2012 - 05.2016] ACR50..LHD;GSR50..ARL,GCC;GSR50..LHD..GEN |
90467-16014 |
US $4.12 |
||
|
44774A
|
44774A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[01.2006 - 12.2008] GSR50;ACR50..LHD |
96133-41500 |
from US $2.32 |
||
|
44785
|
44785
44785-12040 Gasket, Brake Booster[08.2010 - 05.2012] ACR50..ARL;GSR50..RHD |
44785-12040 |
from US $3.06 |
||
|
44785
|
44785
44785-28010 Gasket, Brake Booster[01.2006 - 12.2008] ACR50,GSR50 |
44785-28010 |
US $3.49 |
||
| replacement | |||||
|
44785
|
44785
44785-12040 Gasket, Brake Booster[01.2006 - 12.2008] ACR50,GSR50 |
44785-12040 |
from US $3.06 |
||
|
47264D
|
47264D
47264-30060 Clevis, Master Cylinder Push Rod[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
47264-30060 |
US $4.22 |
||
|
47264D
|
47264D
47264-63020 Clevis, Master Cylinder Push Rod[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN VSC-WITHOUT |
47264-63020 |
from US $3.49 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
