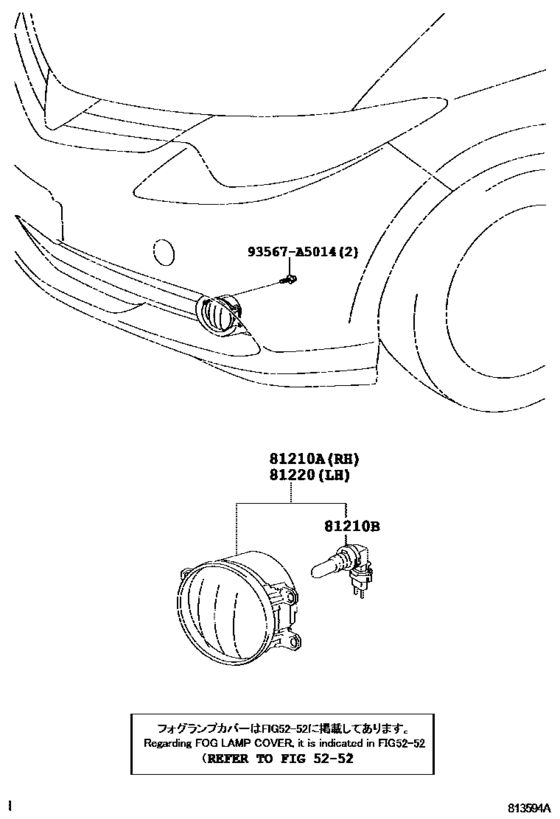

Fog Lamp ([01.2006 - 12.2008] (0601-0812)) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210A
|
81210A
81210-0D040 Lamp Assy, Fog, Rh[01.2006 - 12.2006] GSR50 |
81210-0D040 |
US $165.98 |
||
| replacement | |||||
|
81210A
|
81210A
81210-0D042 Lamp Assy, Fog, Rh[01.2006 - 12.2006] GSR50 |
81210-0D042 |
from US $119.65 |
||
|
81210A
|
81210A
81210-0D041
Lamp Assy, Fog, Rh
[12.2006 - 12.2008] ACR50,GSR50 |
81210-0D041 |
— | ||
| replacement | |||||
|
81210A
|
81210A
81210-0D042 Lamp Assy, Fog, Rh[12.2006 - 12.2008] ACR50,GSR50 |
81210-0D042 |
from US $119.65 |
||
|
81210A
|
81210A
81210-0D042 Lamp Assy, Fog, Rh[05.2010 - 05.2012] ACR50..ARL;GSR50..RHD |
81210-0D042 |
from US $119.65 |
||
|
81210B
|
81210B
90981-13075 Bulb(For Headlamp, No.1)[01.2006 - 12.2008] ACR50,GSR50 12V 55W,HALOGEN,PHILIPS |
90981-13075 |
from US $17.43 |
||
|
81210B
|
81210B
90981-13081 Bulb(For Headlamp, No.1)[01.2006 - 12.2008] ACR50,GSR50 12V 55W,HALOGEN,OSRAM |
90981-13081 |
from US $16.38 |
||
|
81220
|
81220
81220-0D040 Lamp Assy, Fog, Lh[01.2006 - 12.2006] GSR50 |
81220-0D040 |
US $163.07 |
||
| replacement | |||||
|
81220
|
81220
81220-0D042 Lamp Assy, Fog, Lh[01.2006 - 12.2006] GSR50 |
81220-0D042 |
from US $118.89 |
||
|
81220
|
81220
81220-0D041
Lamp Assy, Fog, Lh
[12.2006 - 12.2008] ACR50,GSR50 |
81220-0D041 |
— | ||
| replacement | |||||
|
81220
|
81220
81220-0D042 Lamp Assy, Fog, Lh[12.2006 - 12.2008] ACR50,GSR50 |
81220-0D042 |
from US $118.89 |
||
|
81220
|
81220
81220-0D042 Lamp Assy, Fog, Lh[05.2010 - 05.2012] ACR50..ARL;GSR50..RHD |
81220-0D042 |
from US $118.89 |
||
|
93567A5014
|
93567A5014
93567-A5014 SCREW TAPPING |
93567-A5014 |
from US $0.68 |
||
