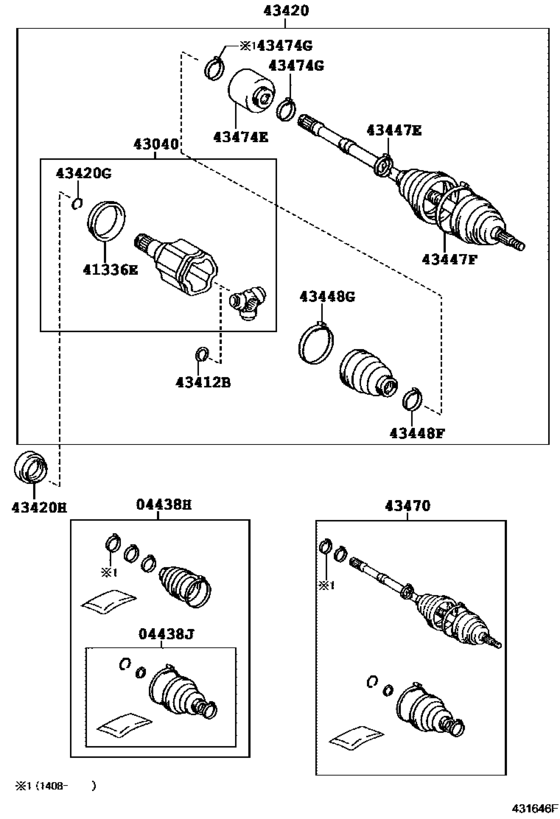

Front Drive Shaft ([01.2006 - ] LH (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-42120
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2006 - 12.2008] GSR50 |
04428-42120 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-78030
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[11.2006 - 12.2008] GSR50 |
04428-78030 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-78031 BOOT KIT FR DRIVE[11.2006 - 12.2008] GSR50 |
04428-78031 |
from US $115.48 |
||
|
04438H
|
04438H
04428-78030
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[08.2014 - 05.2016] GSR50..ARL,GCC;GSR50..LHD..GEN |
04428-78030 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-78031 BOOT KIT FR DRIVE[08.2014 - 05.2016] GSR50..ARL,GCC;GSR50..LHD..GEN |
04428-78031 |
from US $115.48 |
||
|
04438J
|
04438J
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[09.2006 - 12.2008] ACR50,GSR50 |
04438-42180 |
from US $65.77 |
||
|
41336E
|
41336E
41336-28020 Cover, Front Drive Shaft Dust, Lh[01.2006 - 12.2008] ACR50,GSR50 |
41336-28020 |
from US $4.54 |
||
|
43040
|
43040
43040-28011 Joint Assy, Front Drive Inboard, Lh[01.2006 - 12.2008] ACR50,GSR50 |
43040-28011 |
from US $252.17 |
||
|
43412B
|
43412B
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[01.2006 - 12.2008] ACR50,GSR50 |
43425-28010 |
US $0.72 |
||
|
43420
|
43420
43420-28090
Shaft Assy, Front Drive, Lh
[11.2006 - 12.2008] GSR50 |
43420-28090 |
— | ||
| replacement | |||||
|
43420
|
43420
4342028091 SHAFT ASSY FR[11.2006 - 12.2008] GSR50 |
4342028091 |
from US $588 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[01.2006 - 12.2008] ACR50,GSR50 |
90521-33002 |
from US $1.76 |
||
|
43420H
|
43420H
90311-50033
Oil Seal, Front Drive Shaft, Lh
[01.2006 - 12.2008] ACR50,GSR50 |
90311-50033 |
— | ||
| replacements | |||||
|
43420H
|
43420H
90311-50045
Oil Seal, Front Drive Shaft, Lh
[01.2006 - 12.2008] ACR50,GSR50 |
90311-50045 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-50064 SEAL TYPE T OIL[01.2006 - 12.2008] ACR50,GSR50 |
90311-50064 |
from US $9.68 |
||
|
43420H
|
43420H
90311-50064 SEAL TYPE T OIL[01.2006 - 12.2008] ACR50,GSR50 |
90311-50064 |
from US $9.68 |
||
|
43420H
|
43420H
90311-50045
Oil Seal, Front Drive Shaft, Lh
[06.2011 - 05.2012] ACR50..ARL;GSR50..RHD |
90311-50045 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-50064 SEAL TYPE T OIL[06.2011 - 05.2012] ACR50..ARL;GSR50..RHD |
90311-50064 |
from US $9.68 |
||
|
43447E
|
43447E
42345-42120 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2006 - 12.2008] GSR50 |
42345-42120 |
from US $2.91 |
||
|
43447F
|
43447F
42345-42110 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[11.2006 - 12.2008] GSR50 |
42345-42110 |
US $4.40 |
||
|
43448F
|
43448F
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [01.2006 - 12.2008] ACR50,GSR50 |
42345-42010 |
from US $1.60 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [01.2006 - 12.2008] ACR50,GSR50 |
42345-12160 |
from US $4.43 |
||
|
43470
|
43470
43470-80176 Shaft Assy, Front Drive Outboard Joint, Lh[11.2006 - 12.2008] GSR50 |
43470-80176 |
US $439.71 |
||
| replacement | |||||
|
43470
|
43470
43470-80353 Shaft Assy, Front Drive Outboard Joint, Lh[11.2006 - 12.2008] GSR50 |
43470-80353 |
US $398.94 |
||
|
43470
|
43470
43470-80353 Shaft Assy, Front Drive Outboard Joint, Lh[08.2014 - 05.2016] GSR50..ARL,GCC;GSR50..LHD..GEN |
43470-80353 |
US $398.94 |
||
|
43474E
|
43474E
43474-28020 Damper, Front Drive Shaft, Lh[11.2006 - 12.2008] GSR50 |
43474-28020 |
US $87.36 |
||
| replacement | |||||
|
43474E
|
43474E
43474-42050 Damper, Front Drive Shaft, LhFRONT DRIVE SHAFT, LH [11.2006 - 12.2008] GSR50 |
43474-42050 |
US $55.04 |
||
|
43474E
|
43474E
43474-42050 Damper, Front Drive Shaft, LhFRONT DRIVE SHAFT, LH [02.2009 - 05.2012] GSR50..RHD |
43474-42050 |
US $55.04 |
||
|
43474G
|
43474G
42345-12090 Clamp (For Drive Shaft Damper Setting)[05.2016 -] ACR50,GSR50 |
42345-12090 |
US $2.51 |
||
| replacement | |||||
|
43474G
|
43474G
42345-14010 Clamp, Rear Drive Shaft Boot[05.2016 -] ACR50,GSR50 |
42345-14010 |
US $12.54 |
||
|
43474G
|
43474G
42345-14010 Clamp, Rear Drive Shaft Boot[01.2006 - 12.2008] ACR50,GSR50 |
42345-14010 |
US $12.54 |
||
