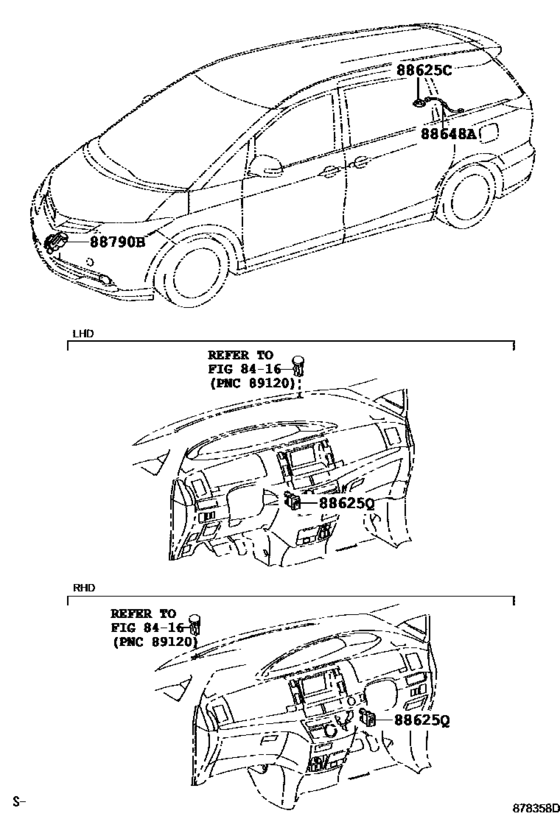

Heating & Air Conditioning - Control & Air Duct ([01.2006 - ] SENSOR (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88625C
|
88625C
88625-45020-A3
Thermistor, Cooler
[04.2012 - 09.2014] GSR50..DLX COLD AREA SPEC,SHELL,TRIM0# |
88625-45020-A3 |
— | ||
|
88625C
|
88625C
88625-45020-B1
Thermistor, Cooler
[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX COLD SPEC(BATTERY SIZE:80D26L),GRAY,TRIM1# |
88625-45020-B1 |
— | ||
|
88625C
|
88625C
88625-45020-C0 Thermistor, Cooler[05.2016 -] GSR50..DLX;ACR50..RHD..CVT..GEN BLACK,TRIM2#; ACR50..ARL;GSR50..GL..ARL COLD AREA SPEC,BLACK,TRIM2# |
88625-45020-C0 |
from US $14.68 |
||
|
88625C
|
88625C
88625-45020-E1
Thermistor, Cooler
[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN GREGE,TRIM4#; ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L),GREGE,TRIM4# |
88625-45020-E1 |
— | ||
|
88625Q
|
88625Q
88625-47021 Thermistor, Cooler No.3[01.2006 - 12.2008] ACR50,GSR50 |
88625-47021 |
from US $14.68 |
||
|
88648A
|
88648A
88648-28300
Wiring, Cooler
[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
88648-28300 |
— | ||
|
88790B
|
88790B
88790-22131 Thermistor, Cooler[01.2006 - 12.2008] ACR50,GSR50 |
88790-22131 |
from US $24.39 |
