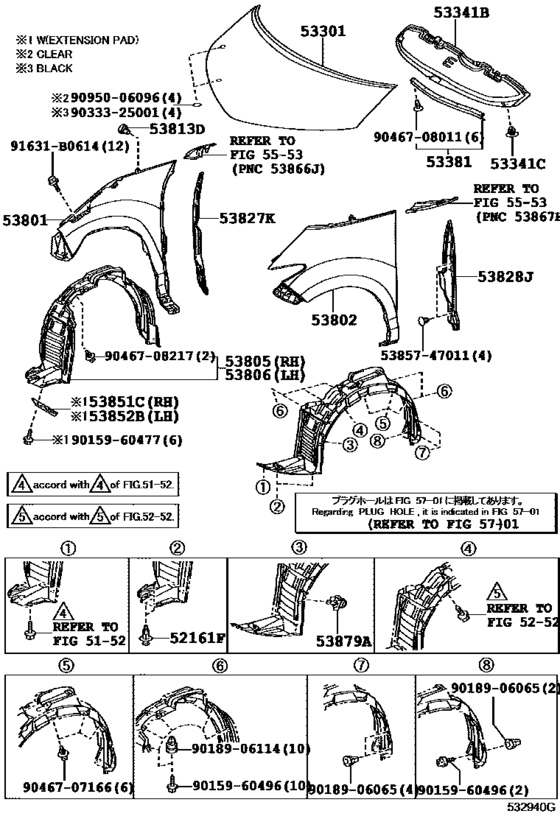

Hood & Front Fender ([01.2006 - 05.2016] (0601-1605) ; (1605- )DLX,GL) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161F
|
52161F
52161-16010 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
52161F
|
52161F
52161-0K040 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-0K040 |
from US $1.50 |
||
|
52161F
|
52161F
52161-02020 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-02020 |
US $5.27 |
||
|
53301
|
53301
53301-28110 Hood Sub-Assy[01.2006 - 12.2008] ACR50,GSR50 |
53301-28110 |
from US $236.26 |
||
|
53341B
|
53341B
53341-28050 Insulator, Hood[01.2006 - 12.2008] ACR50,GSR50 |
53341-28050 |
US $65.17 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[01.2006 - 12.2008] ACR50,GSR50 |
90467-09050 |
from US $0.86 |
||
|
53381
|
53381
53381-28090 Seal, Hood To Radiator Support[01.2006 - 12.2008] ACR50,GSR50 |
53381-28090 |
US $17.02 |
||
|
53801
|
53801
53811-28080 Fender Sub-Assy, Front Rh[01.2006 - 12.2008] ACR50,GSR50 |
53811-28080 |
from US $217.56 |
||
|
53802
|
53802
53812-28080 Fender Sub-Assy, Front Lh[01.2006 - 12.2008] ACR50,GSR50 |
53812-28080 |
from US $235.21 |
||
|
53805
|
53805
53805-28030 Shield Sub-Assy, Front Fender Splash, Rh[01.2006 - 12.2008] ACR50,GSR50 |
53805-28030 |
US $164 |
||
|
53805
|
53805
53805-28031 Shield Sub-Assy, Front Fender Splash, RhFRONT FENDER SPLASH, RH [12.2008 - 05.2012] ACR50..ARL;GSR50..RHD |
53805-28031 |
from US $64.95 |
||
|
53806
|
53806
53806-28030 Shield Sub-Assy, Front Fender Splash, Lh[01.2006 - 12.2008] ACR50;GSR50..ARL,GEN |
53806-28030 |
US $164 |
||
|
53806
|
53806
53806-28031 Shield Sub-Assy, Front Fender Splash, LhFRONT FENDER SPLASH, LH [12.2008 - 05.2012] ACR50..ARL;GSR50..RHD |
53806-28031 |
from US $75.60 |
||
|
53806
|
53806
53806-28050
Shield Sub-Assy, Front Fender Splash, Lh
[01.2006 - 12.2008] ACR50,GSR50..ARL TOWING PACKAGE-WITH |
53806-28050 |
— | ||
|
53806
|
53806
53806-28051
Shield Sub-Assy, Front Fender Splash, Lh
[12.2008 - 05.2012] ACR50,GSR50..ARL TOWING PACKAGE-WITH; GSR50..DLX TOWING PACKAGE-WITH&TIRE & DISC WHEEL-215/55R17 7J ALUMINUM |
53806-28051 |
— | ||
|
53813D
|
53813D
53813-52020 Extension, Front Fender, Rh[01.2006 - 12.2008] ACR50,GSR50 |
53813-52020 |
US $2.87 |
||
|
53827K
|
53827K
53827-28080 Protector, Front Fender Side Panel, Rh[01.2006 - 12.2008] ACR50,GSR50 |
53827-28080 |
US $32.61 |
||
| replacements | |||||
|
53827K
|
53827K
53827-28081 Protector, Front Fender Side Panel, Rh[01.2006 - 12.2008] ACR50,GSR50 |
53827-28081 |
US $40.32 |
||
|
53827K
|
53827K
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [01.2006 - 12.2008] ACR50,GSR50 |
53857-47011 |
from US $0.74 |
||
|
53827K
|
53827K
53827-28081 Protector, Front Fender Side Panel, Rh[10.2012 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
53827-28081 |
US $40.32 |
||
|
53828J
|
53828J
53828-28060 Protector, Front Fender Side Panel, Lh[01.2006 - 12.2008] ACR50,GSR50 |
53828-28060 |
US $32.61 |
||
| replacements | |||||
|
53828J
|
53828J
53828-28061 Protector, Front Fender Side Panel, Lh[01.2006 - 12.2008] ACR50,GSR50 |
53828-28061 |
US $40.32 |
||
|
53828J
|
53828J
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [01.2006 - 12.2008] ACR50,GSR50 |
53857-47011 |
from US $0.74 |
||
|
53828J
|
53828J
53828-28061 Protector, Front Fender Side Panel, Lh[10.2012 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
53828-28061 |
US $40.32 |
||
|
53851C
|
53851C
53851-28020 Pad, Front Wheel Opening Extension, No.1[11.2006 - 12.2008] GSR50..DLX TOWING PACKAGE-WITH&TIRE & DISC WHEEL-215/55R17 7J ALUMINUM; GSR50..DLX TIRE & DISC WHEEL-215/55R17 7J ALUMINUM |
53851-28020 |
from US $31.86 |
||
|
53852B
|
53852B
53852-28020 Pad, Front Wheel Opening Extension, Lh[11.2006 - 12.2008] GSR50..DLX TOWING PACKAGE-WITH&TIRE & DISC WHEEL-215/55R17 7J ALUMINUM; GSR50..DLX TIRE & DISC WHEEL-215/55R17 7J ALUMINUM |
53852-28020 |
from US $32.37 |
||
|
53879A
|
53879A
53879-28030 Retainer, Front Fender Liner[01.2006 - 12.2008] ACR50,GSR50 |
53879-28030 |
from US $4.10 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
5385747011
|
5385747011
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH |
53857-47011 |
from US $0.74 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.76 |
||
|
9018906114
|
9018906114
90189-06114 GROMMET SCREW |
90189-06114 |
from US $1.19 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.82 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.33 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.31 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.90 |
||
|
9095006096
|
9095006096
90950-06096 Plug, Hole(For Hood) |
90950-06096 |
from US $1.29 |
||
