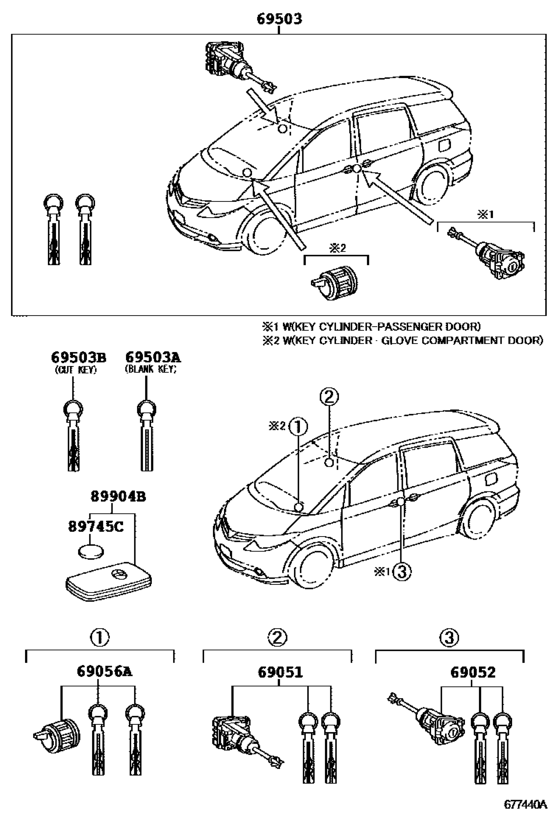

Lock Cylinder Set ([05.2012 - 05.2016] (1204-1605)RHD..CVT ; (1204-1605)RHD..4FC..GEN ; (1205-1605)GSR50..RHD ; (1605- )RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69005-28B60 Cylinder Set, Lock[05.2012 - 05.2016] ACR50,GSR50..ARL |
69005-28B60 |
US $160.72 |
||
|
69051
|
69051
69051-28330 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [01.2006 - 06.2007] ACR50,GSR50 |
69051-28330 |
US $46.04 |
||
|
69052
|
69052
69052-28320
Cylinder & Key Set, Door Lock, Lh
[01.2006 - 12.2008] ACR50,GSR50 |
69052-28320 |
— | ||
|
69052
|
69052
69052-28350
Cylinder & Key Set, Door Lock, Lh
[05.2012 - 05.2016] ACR50,GSR50..ARL |
69052-28350 |
— | ||
|
69056A
|
69056A
69056-33190
Cylinder & Key Set, Glove Compartment Lock
[01.2006 - 12.2008] ACR50,GSR50 |
69056-33190 |
— | ||
|
69056A
|
69056A
69056-33200 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [04.2012 - 05.2016] ACR50..GL;GSR50..ARL,GCC;ACR50..DLX..GCC;ACR50..CVT..ARL;GSR50..LHD..GEN |
69056-33200 |
US $94.64 |
||
|
69503
|
69503
69005-28A50
Cylinder Set, Lock
[01.2006 - 06.2007] ACR50,GSR50 |
69005-28A50 |
— | ||
|
69503
|
69503
69005-28C80
Cylinder Set, Lock
[05.2012 - 05.2016] ACR50,GSR50..ARL |
69005-28C80 |
— | ||
|
69503A
|
69503A
69515-52120 Key, Blank[04.2012 - 05.2016] GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) MASTER KEY,W(*68) |
69515-52120 |
US $44.56 |
||
|
69503B
|
69503B
69515-52110 Key, Cutfor blank key → [04.2012 - 05.2016] GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) MASTER KEY,W(*68) |
69515-52110 |
US $129.56 |
||
|
89745C
|
89745C
89745-52020 Battery, Transmitter[04.2012 - 05.2016] GSR50..ARL;ACR50..LHD..CVT;ACR50..CVT..DLX;GSR50..LHD..GEN CR1632; ACR50..RHD..4FC..GEN CR1632,INDONESIA SPEC; ACR50..RHD..4FC..GEN CR1632,INDONESIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
89745-52020 |
from US $7.88 |
||
|
89904B
|
89904B
89904-28360
Transmitter Sub-Assy, Electrical Key
[04.2012 - 06.2012] GSR50..DLX;ACR50..CVT..ARL;ACR50..LHD..CVT |
89904-28360 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-28361
Transmitter Sub-Assy, Electrical Key
[04.2012 - 06.2012] GSR50..DLX;ACR50..CVT..ARL;ACR50..LHD..CVT |
89904-28361 |
— | ||
|
89904B
|
89904B
89904-28361
Transmitter Sub-Assy, Electrical Key
[06.2012 - 05.2016] ACR50..LHD..CVT;ACR50,GSR50..DLX..ARL |
89904-28361 |
— | ||
|
89904B
|
89904B
89904-28420
Transmitter Sub-Assy, Electrical Key
[05.2012 - 04.2013] ACR50..ARL SLIDE DOOR-*ECS(RH,LH) & *POSD(LH); GSR50..DLX SLIDE DOOR-*ECS(RH,LH) & *POSD(LH)&HEADLAMP-DISCHARGE & AFS |
89904-28420 |
— | ||
