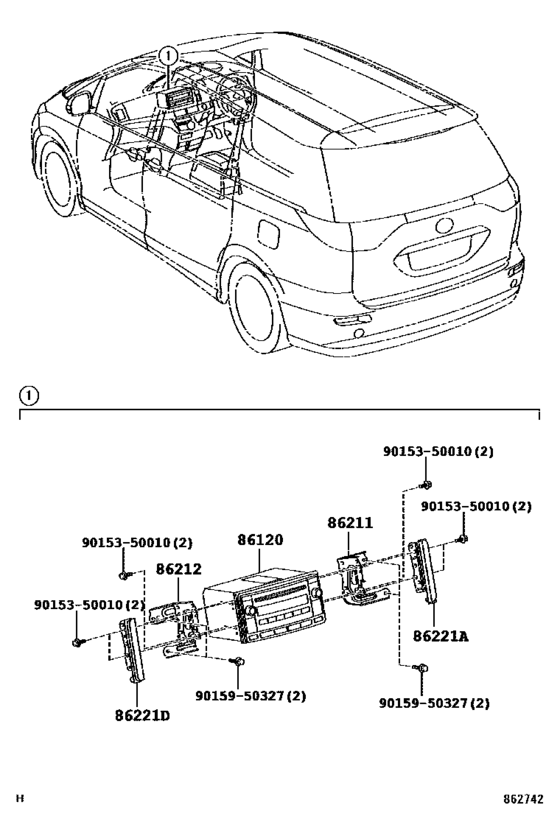

Radio Receiver & Amplifier & Condenser ([01.2006 - 05.2016] (0601-1605)RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-28550
Receiver Assy, Radio
[01.2006 - 12.2008] ACR50,GSR50 FUJITSU TEN,ID=12841,AUDIO-AM/FM CD 6SPEAKER |
86120-28550 |
— | ||
|
86120
|
86120
86120-28590
Receiver Assy, Radio
[12.2008 - 05.2012] ACR50..ARL;GSR50..RHD FUJITSU TEN,ID=22814,AUDIO-AM/FM CD 6SPEAKER,TYPE B:REFER ILLUST. |
86120-28590 |
— | ||
| replacement | |||||
|
86120
|
86120
8612028591
Receiver Assy, Radio
[12.2008 - 05.2012] ACR50..ARL;GSR50..RHD FUJITSU TEN,ID=22814,AUDIO-AM/FM CD 6SPEAKER,TYPE B:REFER ILLUST. |
8612028591 |
— | ||
|
86120
|
86120
86120-28600
Receiver Assy, Radio
[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;ACR50..4FC..GEN;GSR50..LHD..GEN FUJITSUTEN,ID=100111,AUDIO-AM/FM & CD & 6SPEAKER |
86120-28600 |
— | ||
|
86120
|
86120
86120-52560
Receiver Assy, Radio
[01.2006 - 12.2008] ACR50,GSR50 FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 6SPEAKER |
86120-52560 |
— | ||
|
86211
|
86211
86211-28160 Bracket, Radio, No.1[01.2006 - 12.2008] ACR50,GSR50 |
86211-28160 |
US $10.93 |
||
|
86211
|
86211
86211-28210 Bracket, Radio, No.1[05.2016 -] ACR50,GSR50..RHD |
86211-28210 |
US $5.97 |
||
|
86212
|
86212
86212-28160 Bracket, Radio, No.2[01.2006 - 12.2008] ACR50,GSR50 |
86212-28160 |
US $10.93 |
||
|
86212
|
86212
86212-28210 Bracket, Radio, No.2[05.2016 -] ACR50,GSR50..RHD |
86212-28210 |
US $5.97 |
||
|
86221A
|
86221A
86221-52060 Panel, Radio Receiver[01.2006 - 12.2008] ACR50,GSR50 AUDIO-AM/FM CASSETTE 6SPEAKER |
86221-52060 |
from US $1.79 |
||
|
86221D
|
86221D
86221-52050 Panel, Radio Receiver[01.2006 - 12.2008] ACR50,GSR50 AUDIO-AM/FM CASSETTE 6SPEAKER |
86221-52050 |
from US $1.79 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
