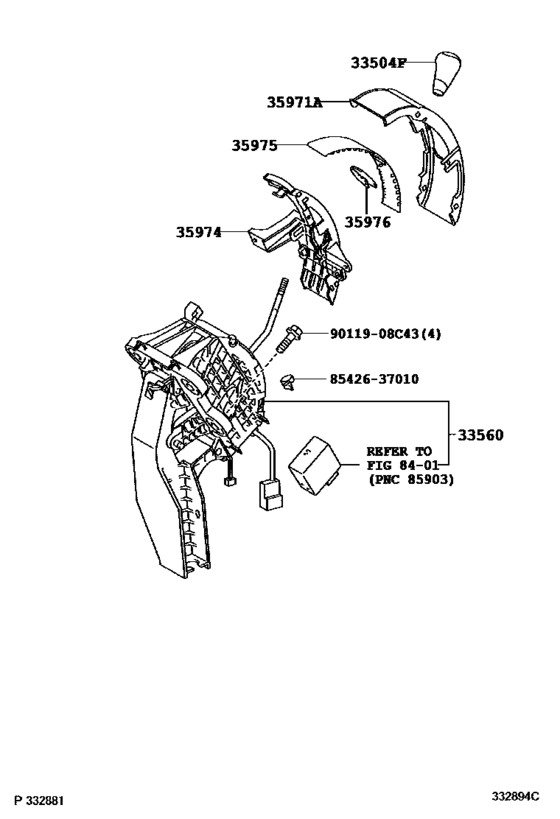

Shift Lever & Retainer ([01.2006 - ] (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-28020-A0 Knob Sub-Assy, Shift Lever[04.2012 - 05.2016] GSR50..DLX;ACR50..DLX..GCC SHELL,TRIM0#; ACR50..DLX..GEN STEERING WHEEL-4-SPOKE & URETHANE,SHELL,TRIM0# |
33504-28020-A0 |
US $30.58 |
||
|
33504F
|
33504F
33504-28020-B0 Knob Sub-Assy, Shift Lever[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
33504-28020-B0 |
US $40.48 |
||
| replacement | |||||
|
33504F
|
33504F
33504-58030-C0 Knob Sub-Assy, Shift Lever[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
33504-58030-C0 |
US $33.63 |
||
|
33504F
|
33504F
33504-28020-E0 Knob Sub-Assy, Shift Lever[01.2006 - 12.2008] ACR50,GSR50..DLX GREGE,TRIM4# |
33504-28020-E0 |
US $40.48 |
||
|
33504F
|
33504F
33504-28040-E1 Knob Sub-Assy, Shift Lever[01.2006 - 12.2008] ACR50,GSR50..GL GREGE,TRIM4#; GSR50..DLX;ACR50..LHD..DLX STEERING WHEEL-4-SPOKE & WOOD & LEATHER,GREGE,TRIM4# |
33504-28040-E1 |
US $117.06 |
||
|
33504F
|
33504F
33504-28040-E3 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.2008 - 05.2012] GSR50..RHD..GL GREGE & YELLOW BROWN,TRIM4#; GSR50..DLX STEERING WHEEL-4-SPOKE & WOOD & LEATHER,GREGE & YELLOW BROWN,TRIM4# |
33504-28040-E3 |
US $100.46 |
||
|
33504F
|
33504F
33504-28060-C0 Knob Sub-Assy, Shift Lever[05.2016 -] ACR50,GSR50..DLX..ARL BLACK,TRIM2#; ACR50..DLX..GEN STEERING WHEEL-3-SPOKE & URETHANE,BLACK,TRIM2# |
33504-28060-C0 |
US $23 |
||
|
33560
|
33560
33560-28010
Unit Assy, Shift Lock Control
[01.2006 - 12.2008] ACR50,GSR50..RHD |
33560-28010 |
— | ||
|
33560
|
33560
33560-28020 Unit Assy, Shift Lock Control[04.2012 - 05.2016] GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
33560-28020 |
US $219.86 |
||
|
33560
|
33560
33560-28120 Unit Assy, Shift Lock Control[05.2016 -] ACR50,GSR50..RHD |
33560-28120 |
US $247.52 |
||
|
35971A
|
35971A
35971-28050 Housing, Position Indicator, Upper[01.2006 - 12.2008] ACR50,GSR50..RHD |
35971-28050 |
US $13.10 |
||
|
35974
|
35974
35974-28050 Housing, Position Indicator, Lower[01.2006 - 12.2008] ACR50,GSR50..RHD |
35974-28050 |
US $21.26 |
||
|
35975
|
35975
35975-28040 Cover, Slide (For Position Indicator)[01.2006 - 12.2008] ACR50,GSR50 |
35975-28040 |
US $5.97 |
||
|
35976
|
35976
35976-28010 Cover, Slide, No.2 (For Position Indicator)[01.2006 - 12.2008] ACR50,GSR50 |
35976-28010 |
US $4.80 |
||
|
9011908C43
|
9011908C43
90119-08C43 New Genuine Part |
90119-08C43 |
US $1.79 |
||
|
8542637010
|
8542637010
85426-37010 Clamp, Over Drive Solenoid |
85426-37010 |
US $3.06 |
||
